T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-1105-KI T
Item No.
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
Simi Valley, CA: 800-423-0150

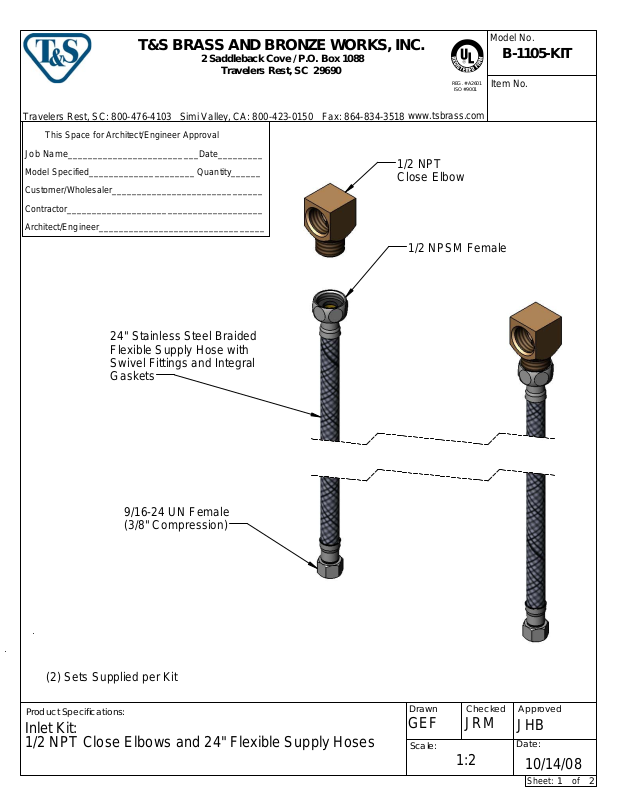

24" Stainless Steel Braided
Flexible Supply Hose with
Swivel Fittings and Integral
Gaskets
Fax: 864-834-3518
www.tsbrass.com
1/2 NPT
Close Elbow
1/2 NPSM Female
9/16-24 UN Female
(3/8" Compression)
(2) Sets Supplied per Kit
Product Specifications:
Inlet Kit:
1/2 NPT Close Elbows and 24" Flexible Supply Hoses
Drawn Checked
GEF
Scale:
JRM
1:2
Approved
JHB
Date:
10/14/08
Sheet:
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
Travelers Rest, SC: 800-476-4103
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Simi Valley, CA: 800-423-0150
ITEM
NO.
1 B-1100-K Elbow Kit (2 Elbows per Kit)
2 017420-45 24" Flexible Supply Hose (Sold Individually)
1
SALES NO. DESCRIPTION
Fax: 864-834-3518
REG. #A2601
ISO #9001
www.tsbrass.com
Model No.
B-1105-KI T
Item No.
2
Product Specifications:
Inlet Kit:
1/2 NPT Close Elbows and 24" Flexible Supply Hoses
Drawn
GEF
Scale:
Checked
JRM
1:4
Approved
JHB
Date:
10/14/08
Sheet:
of
2
2
