T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-1102
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com

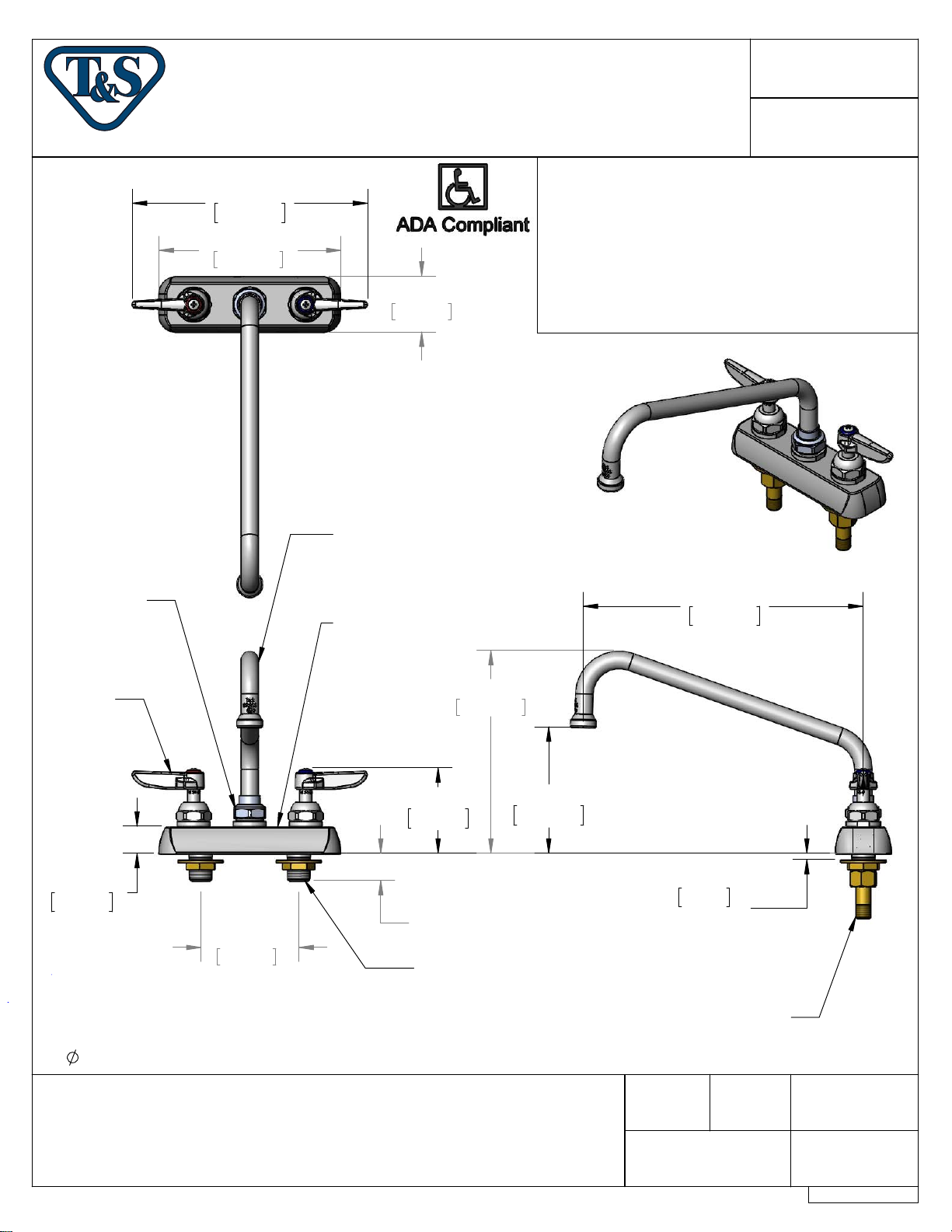

8 7/16"
214mm
6 1/2"
165mm
Swivel Joint
061X
10" Swing Nozzle w/
Stream Regulator Outlet
Polished Chrome
Plated Escutcheon
2"
51mm
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
10"
254mm
Lever Handles
w/ Color Coded
Indexes
1"
25mm
Rough-In Requirement:
1" [25mm] Mounting Holes
(2)
Product Specifications:
3 1/2"
89mm
3 1/16"
78mm
[25mm]
1/2" NPT
Male Inlets
1"
7 1/4"
184mm
4 1/2"
115mm
3 1/2" Deck Mount Workboard Mixing Faucet w/ Lever Handles,
10" Swing Nozzle & 1/2" NPT Male Inlets
Mounting Surface
1/4"
6mm
Maximum
Thickness
(2) 150A
Optional Tailpiece & Nut
For 1/4" NPT Connection
(Included)
Drawn
DHL
Scale:
Checked
DMH
1:4
Approved
JHB
Date:
02/21/14
Sheet:
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-1102
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
1
2
3
4
5
6
7
8 16
9
12
13
14
15

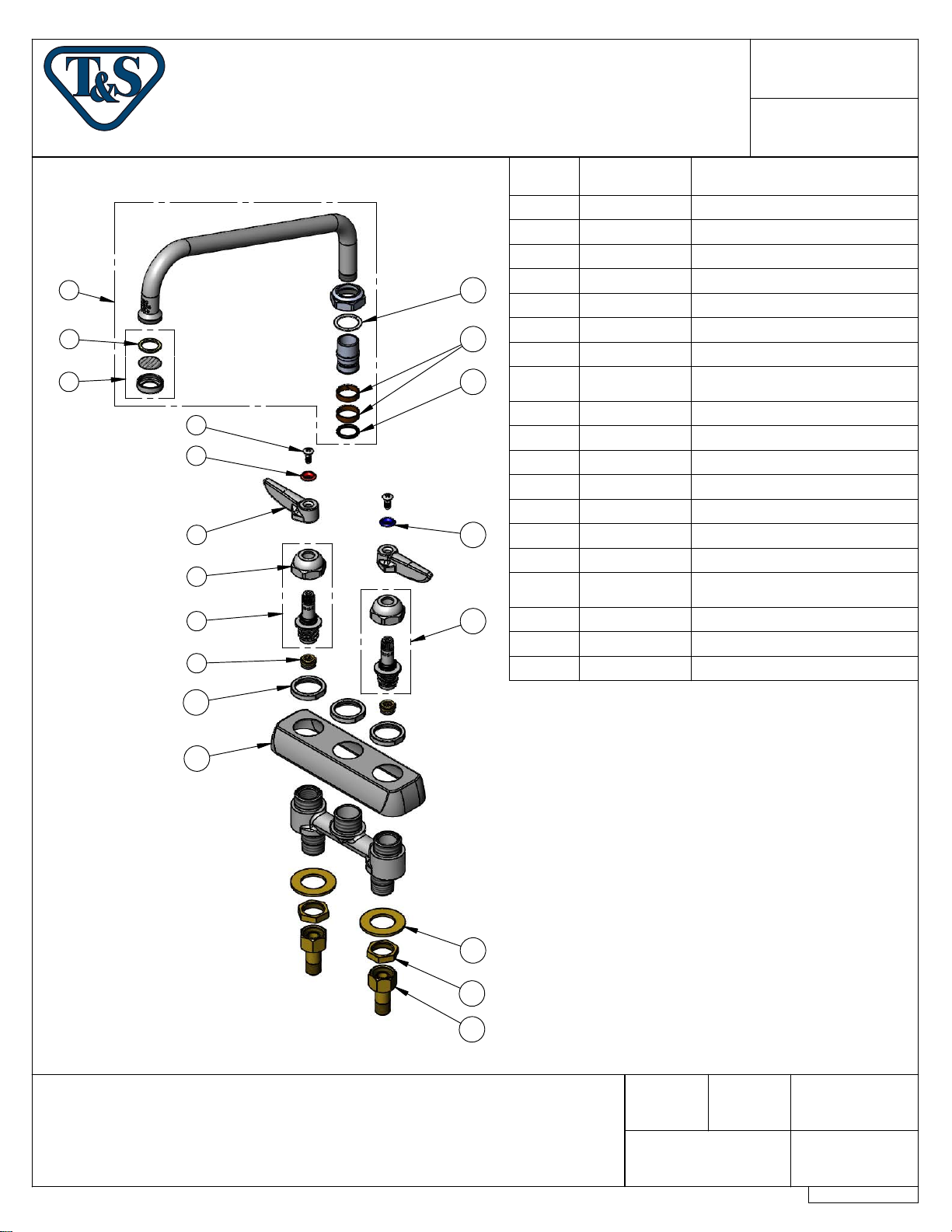

ITEM
NO.
1 061X 10" Swing Nozzle
2 001048-45 Nozzle Tip Washer
3 B-PT Stream Regulator Outlet
4 000922-45 Lever Handle Screw
5 001661-45 Red Index-HW
6 001638-45 Lever Handle
7 009749-25 Bonnet Nut
8 009753-25
9 000763-20 Seat
10 000712-25 Escutcheon Lock Nut
11 001258-40 Escutcheon
12 009538-45 Swivel Washer
13 011429-45 Swivel Sleeves (2)
14 001074-45 O-Ring
15 001660-45 Blue Index-CW
16 009754-25
17 000999-45 Brass Lock Washer
18 002954-45 Shank Lock Nut
19 150A 1/4" NPT Tailpiece & Nut
SALES NO. DESCRIPTION
B-1100 Spindle Assembly,
RTC
B-1100 Spindle Assembly,
LTC
10
11
17
18
19
Product Specifications:
3 1/2" Deck Mount Workboard Mixing Faucet w/ Lever Handles,
10" Swing Nozzle & 1/2" NPT Male Inlets
Drawn
DHL JHB
Scale:
Checked
DMH
Approved
Date:
NTS
02/21/14
Sheet:
2
2of
