T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0937
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________

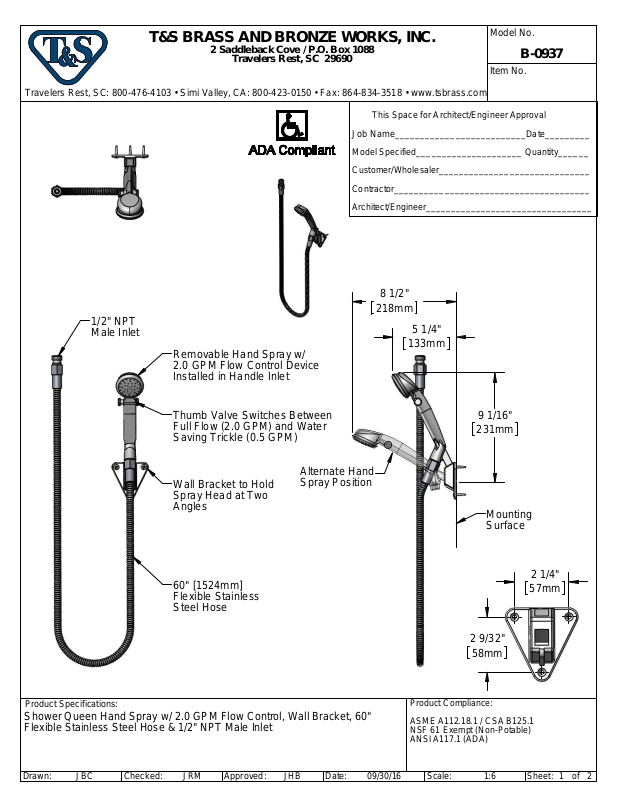

8 1/2"
218mm
1/2" NPT
Male Inlet
5 1/4"
133mm
Removable Hand Spray w/
2.0 GPM Flow Control Device
Installed in Handle Inlet
Thumb Valve Switches Between
Full Flow (2.0 GPM) and Water
Saving Trickle (0.5 GPM)
Alternate Hand
Wall Bracket to Hold
Spray Position
Spray Head at Two
Angles
60" [1524mm]
Flexible Stainless
Steel Hose
Product Specifications:
Shower Queen Hand Spray w/ 2.0 GPM Flow Control, Wall Bracket, 60"
Flexible Stainless Steel Hose & 1/2" NPT Male Inlet
9 1/16"
231mm
Mounting
Surface
2 9/32"
58mm
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 Exempt (Non-Potable)
ANSI A117.1 (ADA)
2 1/4"
57mm
Drawn: Approved:
JBC
Checked:
JHB
Date: 1:6
09/30/16JRM
Scale:
of
2
1Sheet:
Page 2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0937
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
3
2
1
4
5
ITEM
NO.
1 013E-60H
2 010476-45 #27 Washer
3 055A Adapter, 1/2 NPT Male
4 SQ-0095 Hand Spray, Shower Queen
5 014569-45 Face Seal
6 SQ-0092 Wall Bracket
SALES NO. DESCRIPTION
60" Flexible Stainless Steel
Hose
6
Product Specifications:
Shower Queen Hand Spray w/ 2.0 GPM Flow Control, Wall Bracket, 60"
Flexible Stainless Steel Hose & 1/2" NPT Male Inlet
JBC
Checked:
JRM Date:
Approved:Drawn:
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 Exempt (Non-Potable)
ANSI A117.1 (ADA)
09/30/16 Scale:
NTS
of
2
2Sheet:JHB
