T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-0892-133X
Item No.
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
Simi Valley, CA: 800-423-0150
12 3/16"
[310mm]
Fax: 864-834-3518
133X
Swivel Gooseneck
w/ B-PT Stream
Regulator Outlet
www.tsbrass.com
B-WH4
4" Wrist Action
Handles w/ Color
Coded Indexes
8 3/16"
[208mm]
Mounting
Surface
Fits Decks up to
1 3/8" [35mm] Thick
6 7/8"
[175mm]
Note: Rough-In Rquirements
(2)
Product Specifications:
1 1/8" [29mm] Mounting Holes
4"Centerset Mixing Faucet, w/ 1/2" NPSM Male Shanks,
Eterna Cartridges, 4" Wrist Action Handles,
Swivel Gooseneck, Stream Regulator
[102mm]
4"
KJG
Scale:
CheckedDrawn
DMH
1:4
1/2" NPSM
Male Shanks w/
Coupling Nuts
Approved
JHB
Date:
05/06/10
Sheet:
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-0892-133X
Item No.
Travelers Rest, SC: 800-476-4103
16
17
3
Simi Valley, CA: 800-423-0150
6
13
14
15
4
5
Fax: 864-834-3518

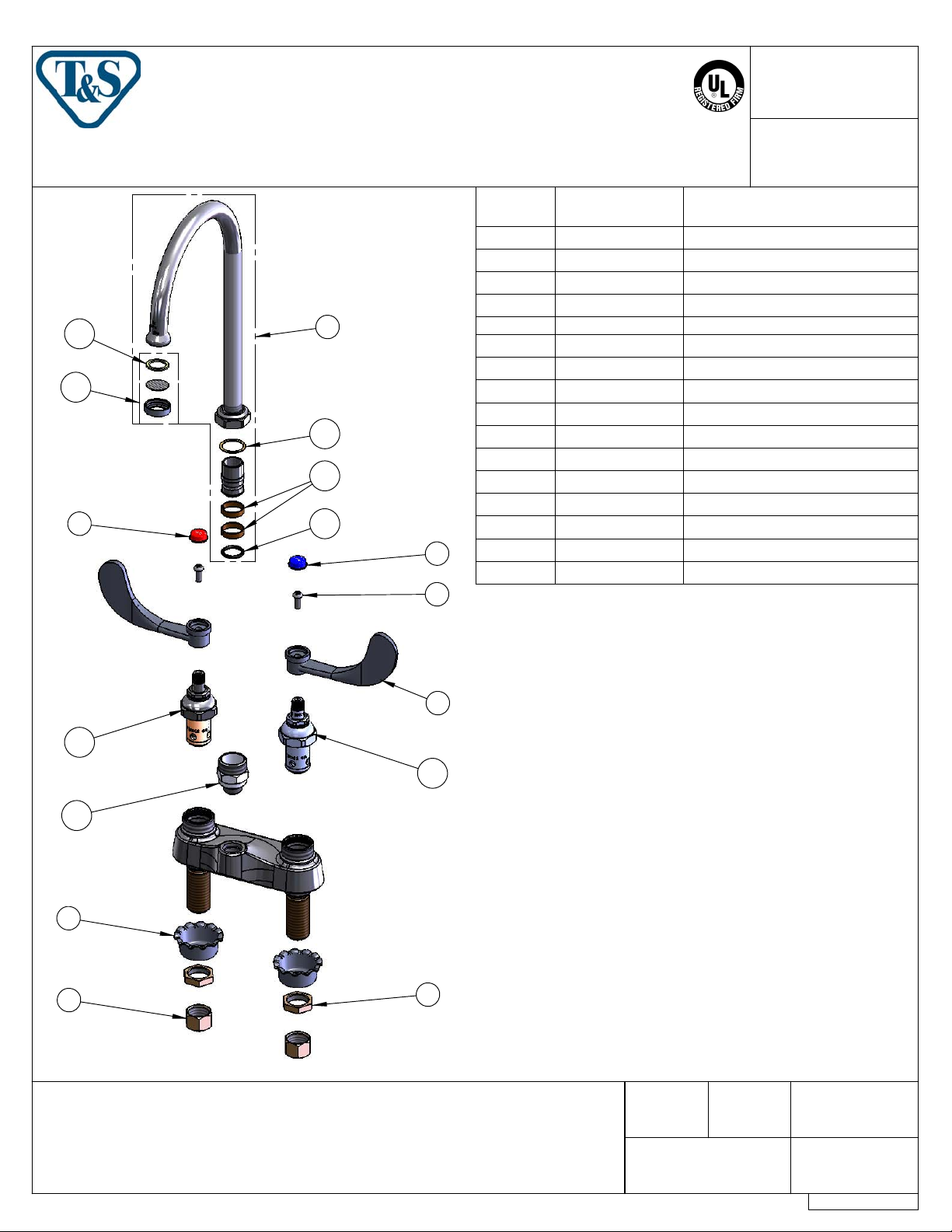

ITEM
NO.
SALES NO. DESCRIPTION
www.tsbrass.com
1 001000-45 Rosette Washer
2 002954-45 Shank Lock Nut
3 001194-45 Red HW Index
4 001686-45 Blue CW Index
5 000925-45 Lab Handle Screw
6 133X Swivel Gooseneck
7 B-WH4 4" Wrist Action Handle
8 000958-20 Coupling Nut
10 B-0412 Rigid to Swivel Adapter
11 006009-40 Cold Spindle Assembly
12 006010-40 Hot Spindle Assembly
13 009538-45 Swivel Washer
14 011429-45 Swivel Sleeves (2)
15 001074-45 O-Ring
16 001048-45 Nozzle Tip Washer
17 B-PT Stream Regulator Outlet
7
12
11
10
1
8
Product Specifications:
2
4"Centerset Mixing Faucet, w/ 1/2" NPSM Male Shanks,
Eterna Cartridges, 4" Wrist Action Handles,
Swivel Gooseneck, Stream Regulator
Drawn
KJG
Scale:
Checked
DMH
1:4
Approved
JHB
Date:
05/06/10
Sheet:
of
2
2
