T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0892-122X-CR
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
12"
305mm
122X
Rigid Gooseneck w/
Stream Regulator Outlet
Cerama Cartridges &
4" Wrist Action Handles
w/ Color Coded Indexes
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
6 11/16"
170mm
12 3/8"
315mm
5 1/2"
140mm
7 3/8"
187mm

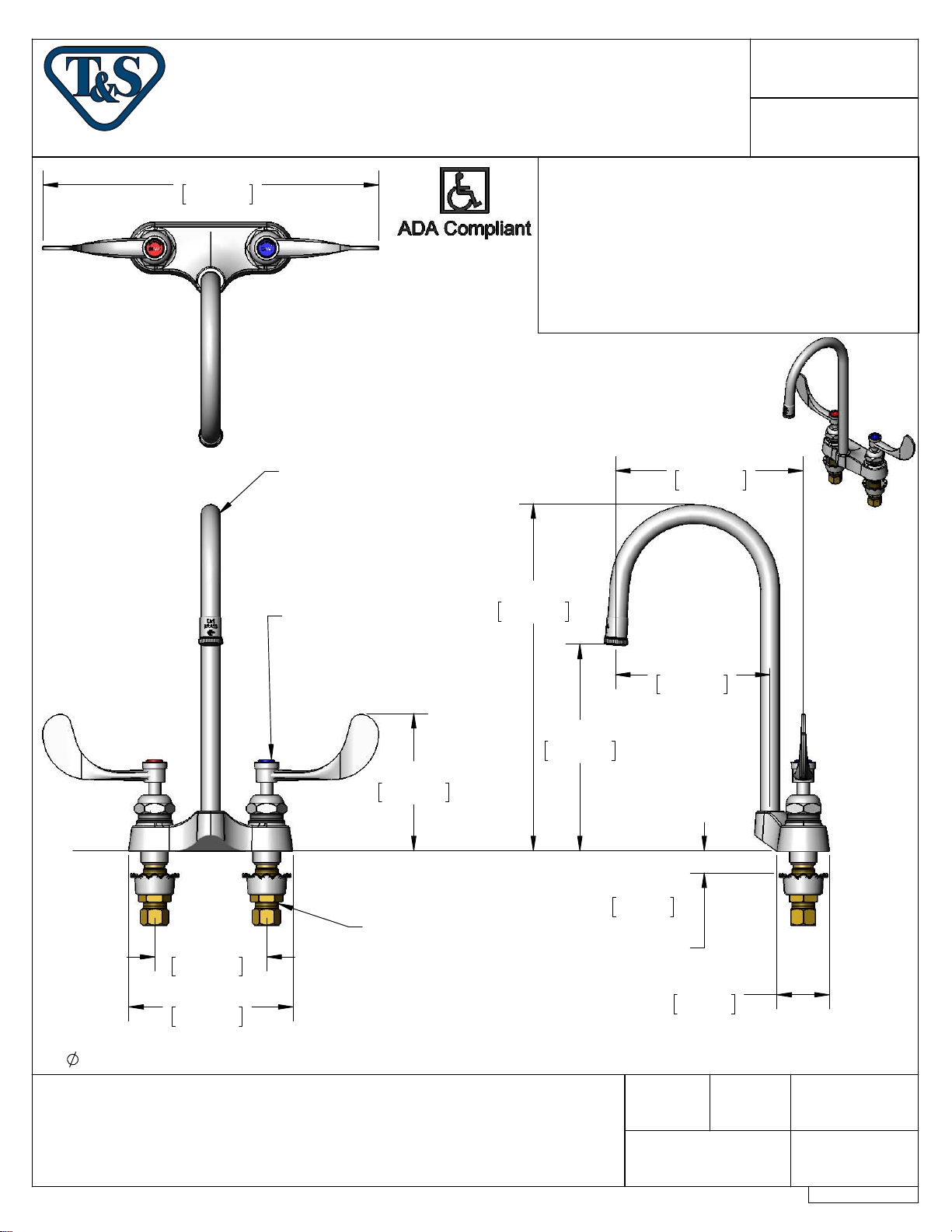

Mounting
Surface
4"
102mm
5 7/8"
149mm
Rough-In Requirement:
1 1/8" [29mm] Mounting Holes
(2)
Product Specifications:
4 7/8"
125mm
1/2" NPSM
Male Shanks w/
Coupling Nuts
4" Centerset Mixing Faucet w/ Cerama Cartridges, 4" Wrist Action
Handles, Rigid Gooseneck w/ Stream Regulator Outlet, & 1/2" NPSM
Male Shanks
3/4"
19mm
Maximum
Thickness
1 7/8"
Drawn
KJG
Scale:
47mm
Checked
1:4
JRM
Approved
JHB
Date:
11/26/13
Sheet:
of
2
1
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0892-122X-CR
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
3
2
1
4
5
14
7
6

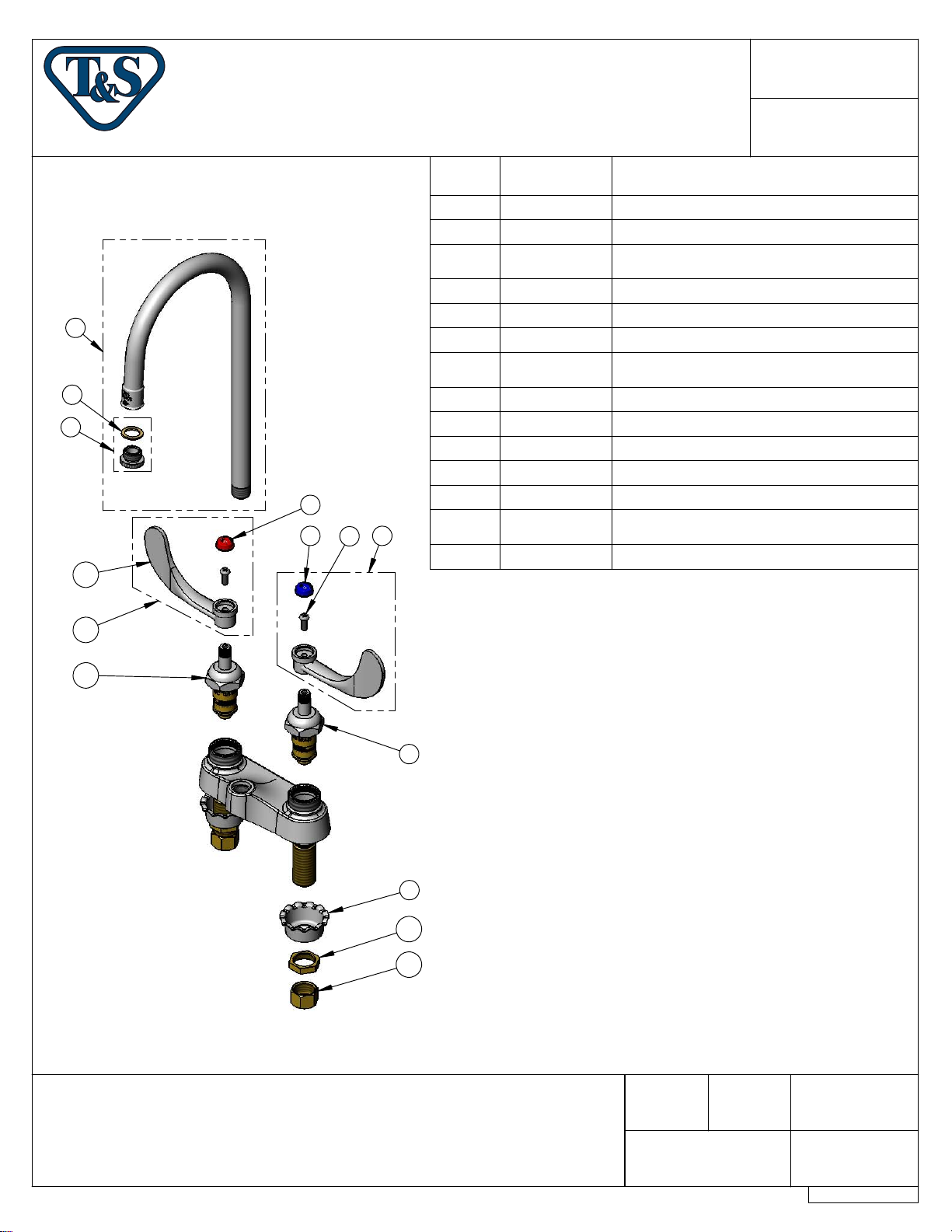

ITEM
NO.
1 B-LT Stream Regulator Outlet
2 001043-45 Washer
3 122X
4 001194-45 Red HW Index
5 001686-45 Blue CW Index
6 000925-45 Lab Handle Screw
7B-WH4C
8 011279-25 Cerama Cartridge, LTC
9 001000-45 Rosette Washer
10 002954-45 Shank Lock Nut
11 000958-20 Coupling Nut
12 011278-25 Cerama Cartridge, RTC
13 B-WH4H
14 B-WH4 4" Wrist Action Handle
SALES NO. DESCRIPTION
Rigid Gooseneck w/ B-LT Stream
Regulator Outlet
4" Wrist Action Handle, Screw & Cold
Index
4" Wrist Action Handle, Screw & Hot
Index
13
12
8
9
10
11
Product Specifications:
4" Centerset Mixing Faucet w/ Cerama Cartridges, 4" Wrist Action
Handles, Rigid Gooseneck w/ Stream Regulator Outlet, & 1/2" NPSM
Male Shanks
Drawn
KJG JHB
Scale:
Checked
JRM
NTS
Approved
Date:
11/26/13
Sheet:
2
of
2
