This Space for Architect/Engineer Approval
Model No.
B-0874-05CR-VRS
Item No.
8 7/16"
214mm
Job Name
1 7/8"
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
47mm
Swivel Gooseneck w/
B-0199-01
2.2 GPM Aerator
5 9/16"
141mm
Rigid Conversion Requires
014200-45 Lock Washer
(Included)
Rigid to Swivel Adapter
Quarter-Turn Cerama
Cartridges & Lever Handles
w/ Vandal Resistant Screws
& Color Coded Indexes
4 3/8"
111mm
10 7/8"
277mm
7 1/4"
184mm
3 3/16"
80mm
4"
102mm
5 7/8"
149mm

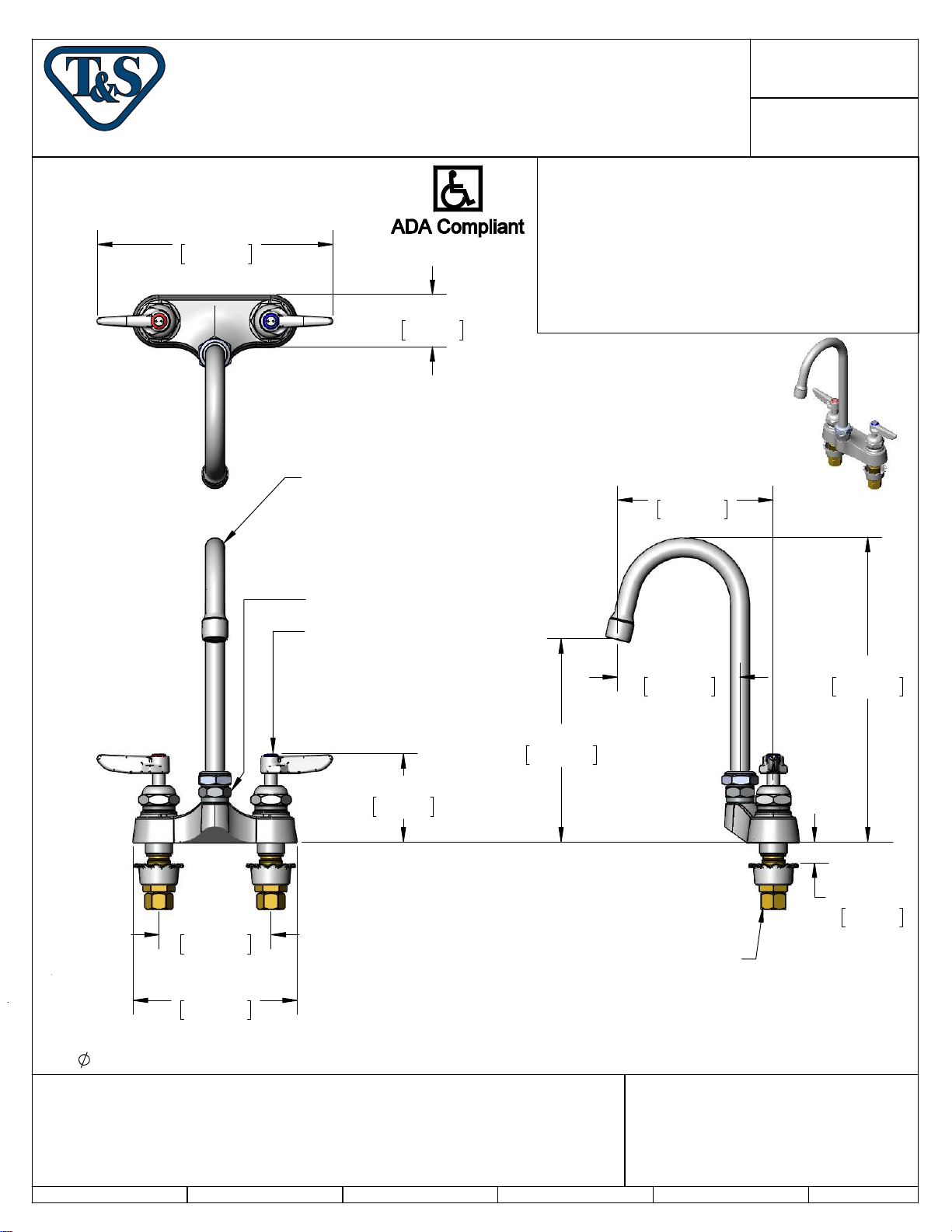

Rough-In Requirement:
1 1/8" [29mm] Mounting Holes
(2)
Product Specifications:
4" Centerset Deck Mount Mixing Faucet, Quarter-Turn Eterna Cartridges ,
4" Wrist Action Handles, Swivel Gooseneck, 2.2 GPM Aerator, Rigid to
Swivel Adapter & 1/2" NPSM Male Inlets
Mounting
Surface
1/2" NPSM
Male Inlets w/
Coupling Nuts
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
3/4"
19mm
Maximum
Thickness
DHL
Checked:
KJG
Approved:Drawn:
JHB
Date: 1:4
11/20/15
Scale:
Sheet:
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
2
1
14 5

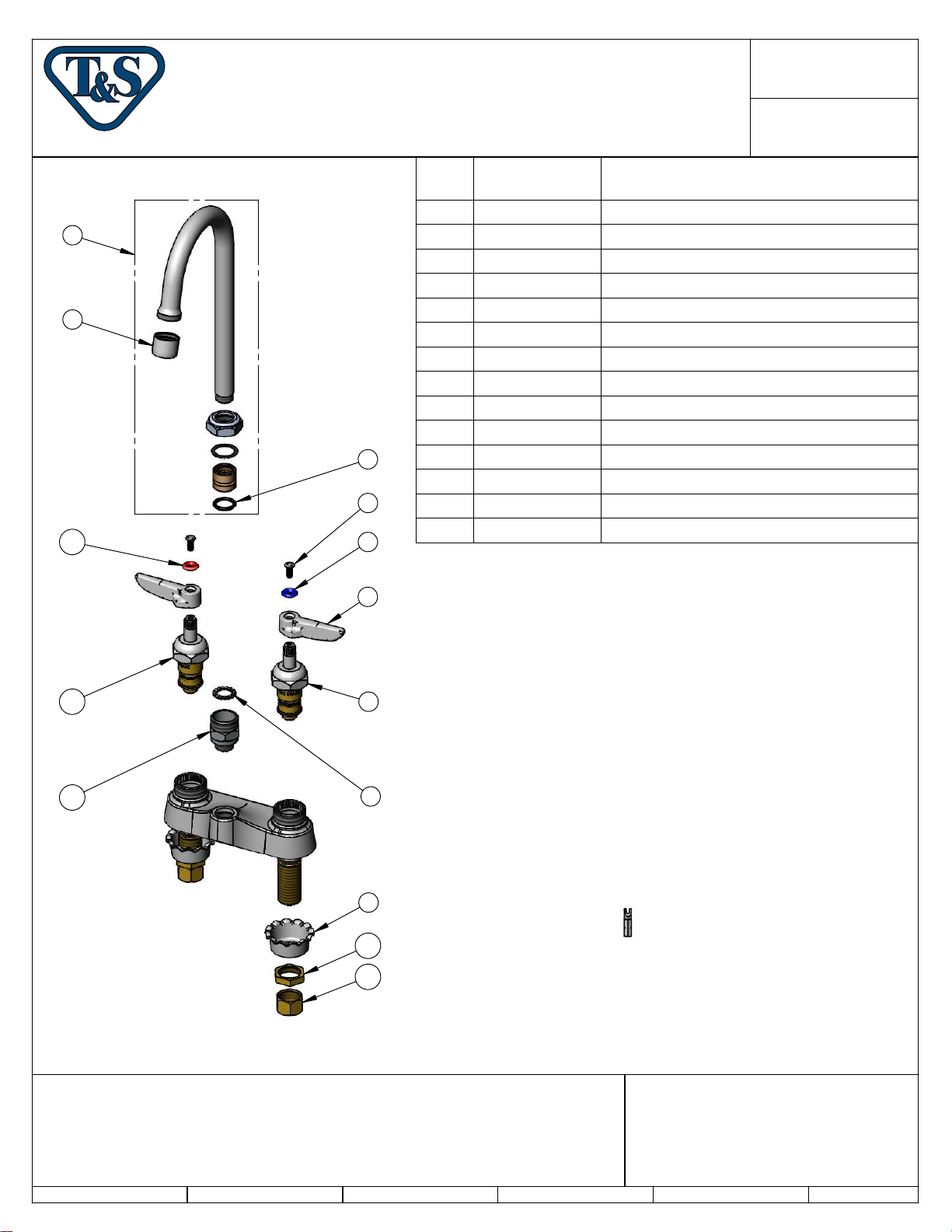

ITEM
NO.
1 B-0199-01 2.2 GPM Aerator, 55/64-27 UN Female
2 017907-40 Swivel Gooseneck
3 001074-45 O-Ring
4 VRS-1 VR Lever Handle Screw w/ Spanner Bit
5 001660-45 Blue Index-CW
6 001638-45 Lever Handle
7 011279-25 Quarter-Turn Cerama Cartridge, LTC
8 014200-45 Star Washer, Anti-Rotation
9 001000-45 Rosette Washer
10 002954-45 Shank Lock Nut
3
11 000958-20 Coupling Nut
12 B-0412 Rigid to Swivel Adapter
4
13 011278-25 Quarter-Turn Cerama Cartridge, RTC
14 001661-45 Red Index-HW
SALES NO. DESCRIPTION
Model No.
B-0874-05CR-VRS
Item No.
13
12
6
7
9
10
11
8
014075-45
Vandal Resistant
#10 Spanner Bit
Product Specifications:
4" Centerset Deck Mount Mixing Faucet, Quarter-Turn Eterna Cartridges ,
4" Wrist Action Handles, Swivel Gooseneck, 2.2 GPM Aerator, Rigid to
Swivel Adapter & 1/2" NPSM Male Inlets
DHL
Checked:
KJG
Approved:Drawn:
Date:
11/20/15 Scale:
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
NTS
of
2
2Sheet:JHB
