T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0871-VR-CH-QT
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
Quarter-Turn Eterna Cartridges w/
Decorative Club Handles,
Coded Indexes & Vandal Resistant
Handle Screws
3 3/4"
B-0199-08
Vandal Resistant
96mm
2.2 GPM Aerator
1 7/16"
36mm
3/4"
19mm
4"
Maximum
Thickness
102mm
5 7/8"
149mm
Furnished w/
Rough-in Requirement:
1 1/8" [29mm] Holes
(2)
Product Specifications:
VR Hex Key for VR Screws
010587-45

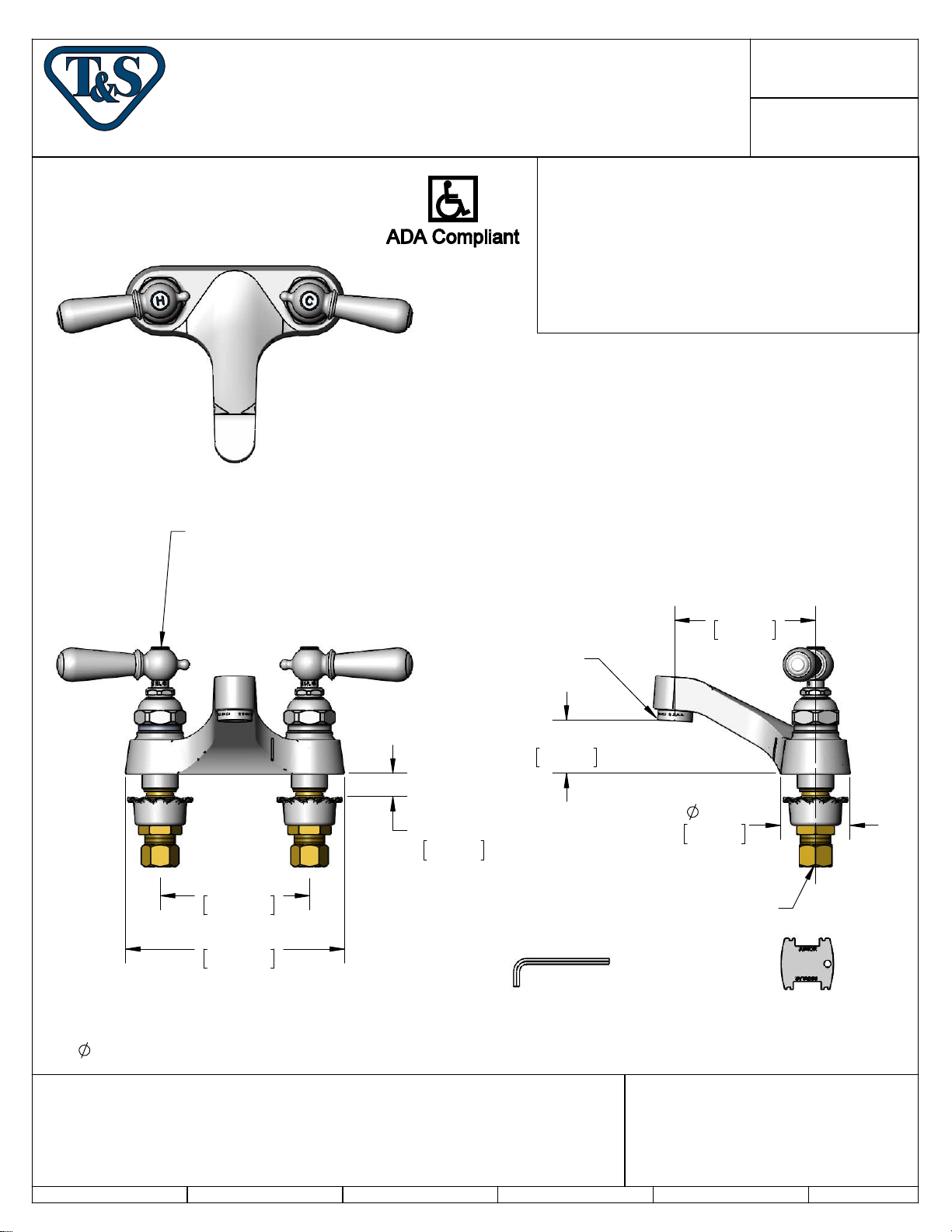

4" Centerset Mixing Faucet w/ Quarter-Turn Eterna Cartridges, Decorative
Club Handles, Vandal Resistant Screws and VR 2.2 GPM Aerator
1 7/8"
47mm
1/2" NPSM
Coupling Nuts
Furnished w/
015425-45
VR Aerator Key
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Drawn: Approved:
DMH
Checked:
JHB
Date:
08/27/15KJG
Scale:
1:3
of
2
1Sheet:
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0871-VR-CH-QT
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
1
2
3
4
11
10
ITEM
NO.
1 009303-41 Decorative Cap Insert, Hot
2 009304-41 Decorative Cap Insert, Cold
3 001066-45 O-Ring
4 B-VRS Pin-In-Socket Screw w/ Hex Key
5 005959-40QT Quarter-Turn Eterna Cartridge, LTC
6 001000-45 Rosette Washer
7 002954-45 Shank Lock Nut
8 000958-20 Coupling Nut
9 B-0199-08
10 005960-40QT Quarter-Turn Eterna Cartridge, RTC
11 017229-45 Club Handle
SALES NO. DESCRIPTION
VR 2.2 GPM Aerator, 13/16-27 UN
Male w/ Key
5
9
6
7
8
Product Specifications:
4" Centerset Mixing Faucet w/ Quarter-Turn Eterna Cartridges, Decorative
Club Handles, Vandal Resistant Screws and VR 2.2 GPM Aerator
010587-45
VR Hex Key
015425-45
VR Aerator Key
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
DMH
Checked: Date:
KJG 08/27/15 Scale:
Approved:Drawn:
NTS
of
2
2Sheet:JHB
