T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
B-WH4
4" Wrist Action
Handles w/ Color
Coded Indexes
Simi Valley, CA: 800-423-0150
REG. #A2601
Fax: 864-834-3518www.tsbrass.com
Rigid Gooseneck w/
WaterSense
1.5 GPM Aerator
ISO #9001
Model No.
B-0867-04-WS
Item No.
1 11/16"
[43mm]
10 11/16"
[271mm]
Rigid Deck
Flange
4"
[102mm]
Fits Decks up to
1 1/8" [29mm] Thick or
1 1/4" [32mm] Thick
by Removing the Washer
Adjustable Faucet
Centers
(See Chart Below)
1/2" NPT Thread w/
Hot & Cold Center Sections
Can be at Angle
Brass Coupling Nut
Note: Rough-In Requirements
Center Shank:
Hot/Cold Bodies:
(
1 1/4" [ 32mm] Minimum)
Product Specifications:
1" [ 25mm] Hole
1 1/2" [ 38mm] Hole
Hot
Y
X

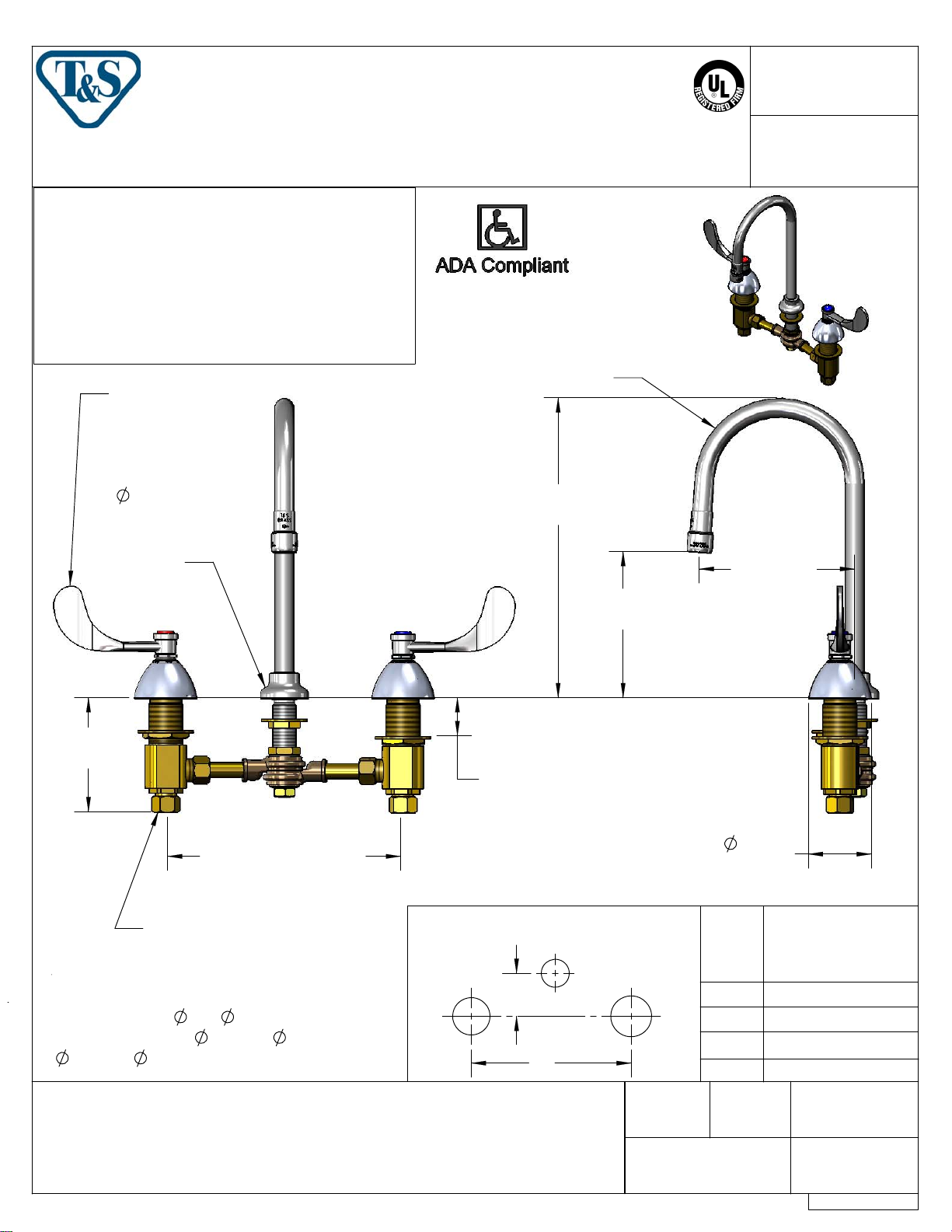

8" c/c Deck Mount Mixing Faucet w/ Eterna Cartridges, B-WH4
4" Wrist Action Handles, Rigid Gooseneck w/ 1.5 GPM Aerator
5 3/16"
[132mm]
Spout
5 1/2"
[140mm]
Mounting Surface
2 1/4"
[57mm]
if "Y" is Then Faucet Will
Fit "X" with Standard
1/4" NPT Cross Pipes
Furnished
Cold
Drawn Checked
KJG
Scale:
1/2"
1"
DHL
1:4
8"
7 3/4"
7 3/8"1 1/2"
7"2"
Approved
JHB
Date:
07/19/10
Sheet:
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 Fax: 864-834-3518
Simi Valley, CA: 800-423-0150
REG. #A2601
ISO #9001
www.tsbrass.com
Model No.
B-0867-04-WS
Item No.

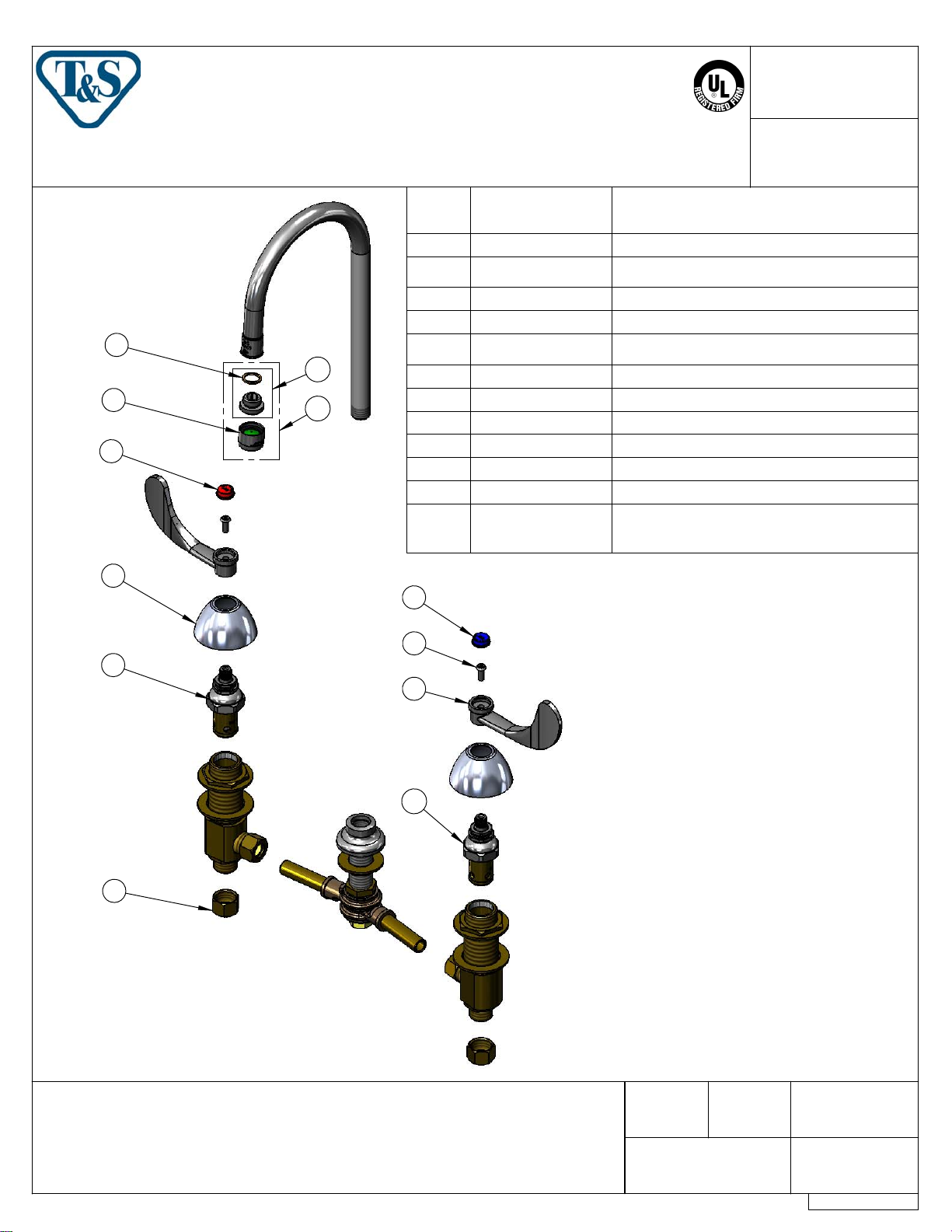

ITEM
NO.
SALES NO. DESCRIPTION
1 001043-45 Washer
2 B-0199-01-WS 1.5 GPM Aerator, 55/64-27 Female
3 001194-45 Red HW Index
4 001257-40 Bell Escutcheon
1
11
2
12
5 006478-40 Spindle Asm., RH Eterna
6 000958-20 Coupling Nut
7 001686-45 Blue CW Index
8 000925-45 Lab Handle Screw
3
9 B-WH4 4" Wrist Action Handle
10 006477-40 Spindle Asm., LH Eterna
11 044A 3/8" to Aerator Adapter
12 B-0199-02-WS
4
7
8
5
9
1.5 GPM Female Aerator,
Adapter & Washer
10
6
Product Specifications:
8" c/c Deck Mount Mixing Faucet w/ Eterna Cartridges, B-WH4
4" Wrist Action Handles, Rigid Gooseneck w/ 1.5 GPM Aerator
Drawn
KJG
Scale:
Checked
DHL
NTS
Approved
JHB
Date:
07/19/10
Sheet:
of
2
2
