T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-0713
Item No.
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
Simi Valley, CA: 800-423-0150
Push Button
Metering Ctg.
Vandal
Resistant
2.2 GPM
Aerator
Fax: 864-834-3518
www.tsbrass.com
15/16"
[24mm]
Remove
Tailpiece
for 1/2" NPSM
Male Shank
4 1/8"
[105mm]
Rough-in: 1-1/8" Hole

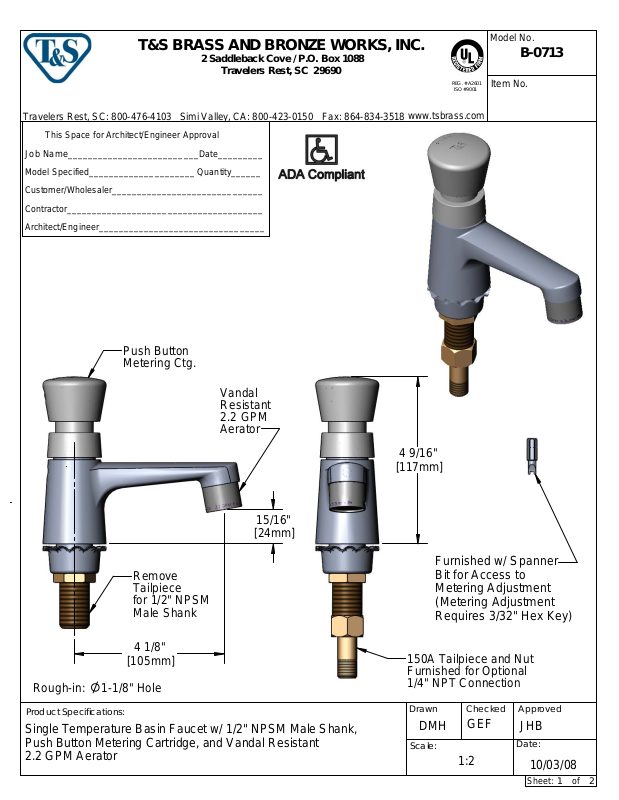

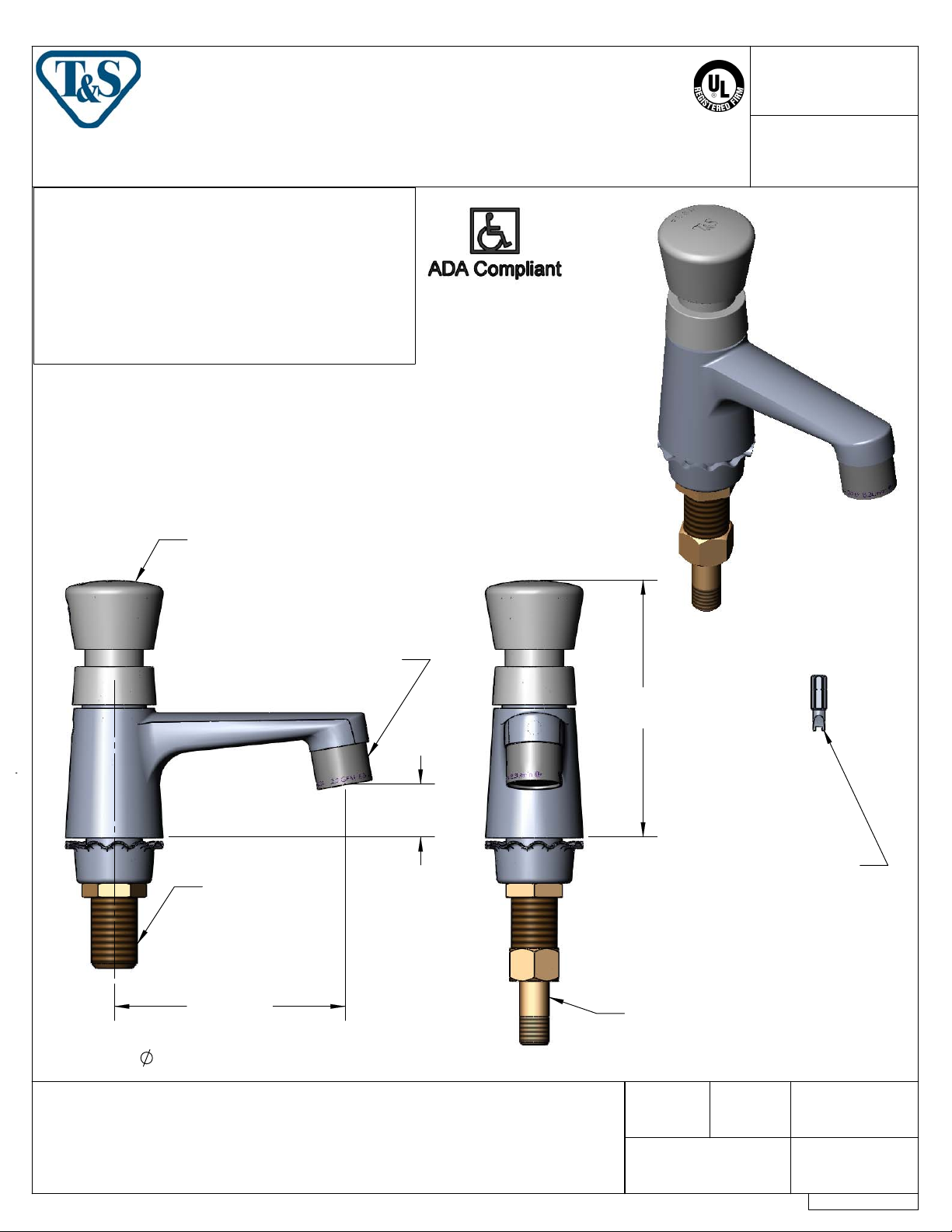

Product Specifications:
Single Temperature Basin Faucet w/ 1/2" NPSM Male Shan k,
Push Button Metering Cartridge, and Vandal Resistant
2.2 GPM Aerator
4 9/16"
[117mm]
Furnished w/ Spanner
Bit for Access to
Metering Adjustment
(Metering Adjustment
Requires 3/32" Hex Key)
150A Tailpiece and Nut
Furnished for Optional
1/4" NPT Connection
Drawn Checked
DMH
Scale:
GEF
1:2
Approved
JHB
Date:
10/03/08
Sheet:
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
Travelers Rest, SC: 800-476-4103
1
2
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Simi Valley, CA: 800-423-0150

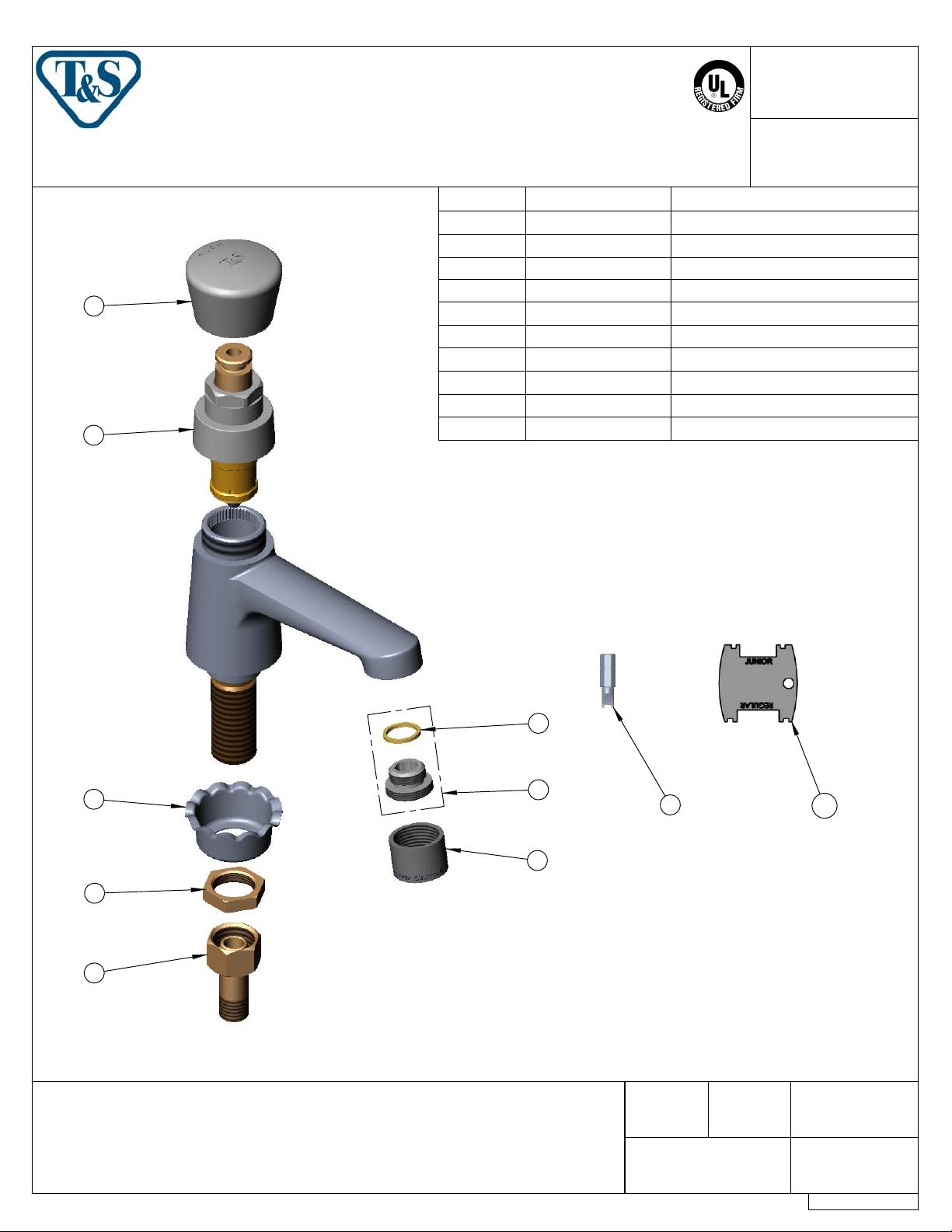

ITEM PART NO. DESCRIPTION
1 014193-40 Push Button Cap Asm.
2 238A Push Button Metering Ctg.
3 001000-45 Rosette Washer
4 002954-45 Shank Lock Nut
5 150A Nut & Tailpiece
6 001043-45 Washer
7 044A 3/8" to Aerator Adapter
8 B-0199-06 VR Aerator w/ Key
9 014734-45 Spanner Bit
10 015425-45 Dual VR Key
Fax: 864-834-3518
REG. #A2601
ISO #9001
www.tsbrass.com
Model No.
B-0713
Item No.
6
3
4
5
Product Specifications:
7
8
Single Temperature Basin Faucet w/ 1/2" NPSM Male Shan k,
Push Button Metering Cartridge, and Vandal Resistant
2.2 GPM Aerator
Drawn
DMH
Scale:
9
Checked
GEF
1:2
10
Approved
JHB
Date:
10/03/08
Sheet:
of
2
2
