T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-0712-V15-GGSD
Item No.
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
Simi Valley, CA: 800-423-0150
Furnished w/
Vandal Resistant Key
Push Button
Metering Ctg.
Fax: 864-834-3518
www.tsbrass.com
Remove
Tailpiece
for 1/2" NPSM
Male Shank
4 1/8"
[105mm]
1.5 GPM
VR Aerator
15/16"
[24mm]
4 9/16"
[116mm]
Furnished w/ Spanner
Bit for Access to
Metering Adjustment
(Metering Adjustment
Requires 3/32" Hex Key)
150A
1/4" NPT Male
Tailpiece
1-1/8" HoleRough-in:

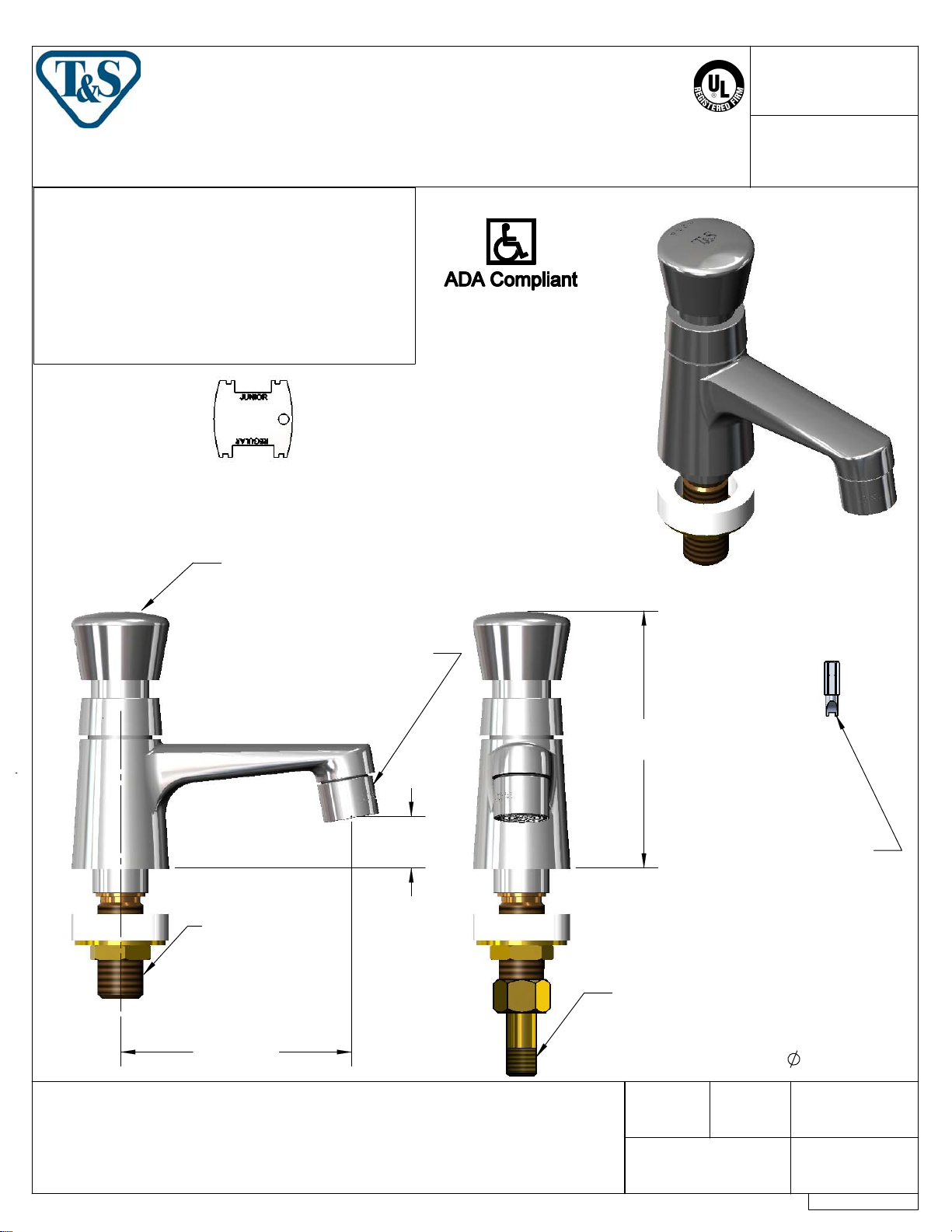

Product Specifications:
Single Temperature Basin Faucet w/ 1/2" NPSM Male Shank,
Push Button Metering Cartridge, and 1.5 GPM VR Aerator
Drawn Checked
KJG
Scale:
1:2
Approved
JHBJRM
Date:
05/20/10
Sheet:
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-0712-V15-GGSD
Item No.
Travelers Rest, SC: 800-476-4103
1
2
Simi Valley, CA: 800-423-0150

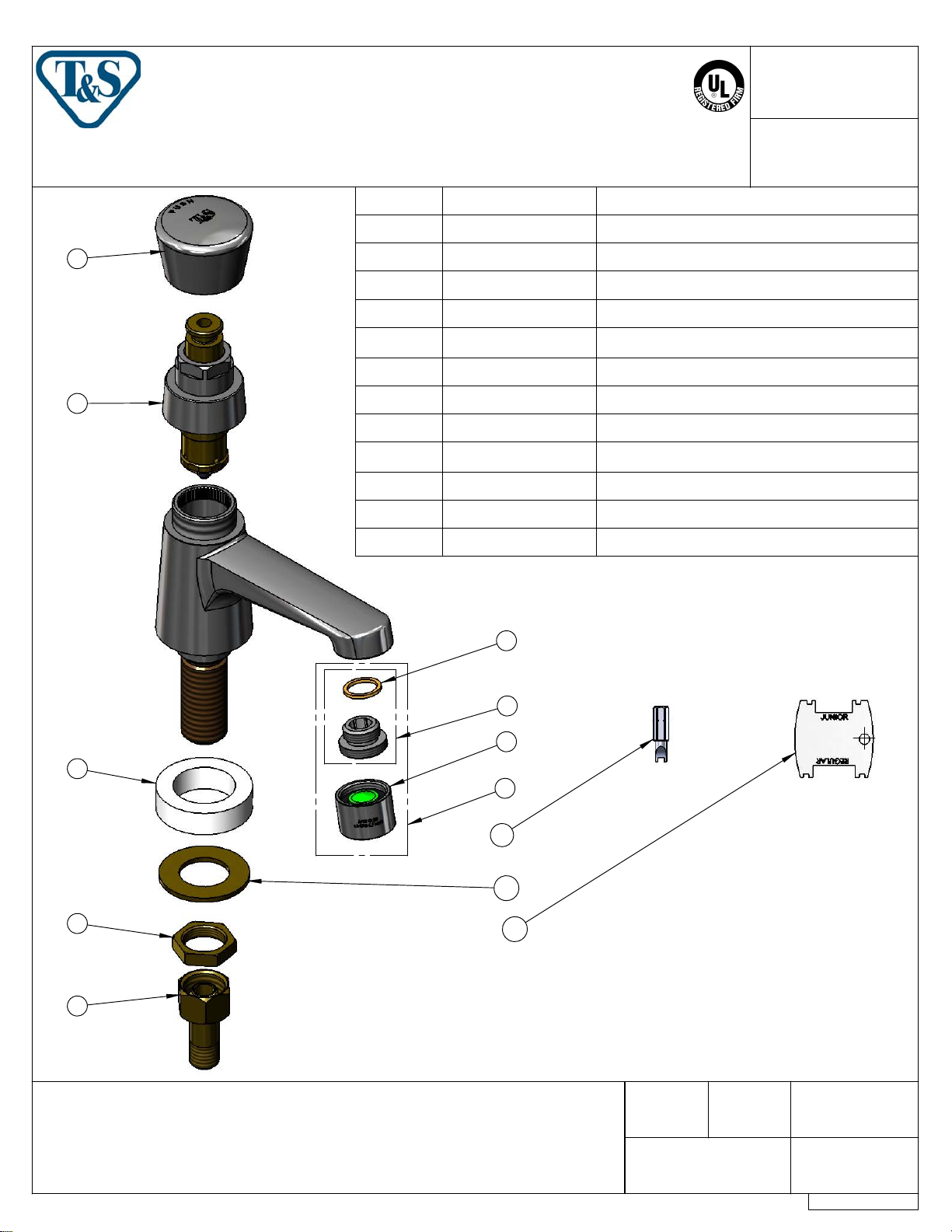

ITEM PART NO. DESCRIPTION
1 014193-40 Push Button Cap Asm.
2 238A Push Button Metering Ctg.
3 017946-45 Nylon Spacer
4 002954-45 Shank Lock Nut
5 150A 1/4" Tailpiece
6 001043-45 Washer
7 044A 3/8" to Aerator Adapter
8 B-0199-06-WS 55/64 Aerator, 1.5 GPM, VR w/ Key
9 B-0199-07-WS 3/8" Aerator, 1.5 GPM, VR w/ Key
10 014734-45 Spanner Bit
11 000999-45 Brass Lock Washer
12 015425-45 Vandal Resistant Key
Fax: 864-834-3518
www.tsbrass.com
3
4
5
Product Specifications:
10
6
7
8
9
11
12
Drawn
Checked
Approved
Single Temperature Basin Faucet w/ 1/2" NPSM Male Shank,
Push Button Metering Cartridge, and 1.5 GPM VR Aerator
JRM
Scale:
1:2
KJG
JHB
Date:
05/20/10
Sheet:
of
2
2
