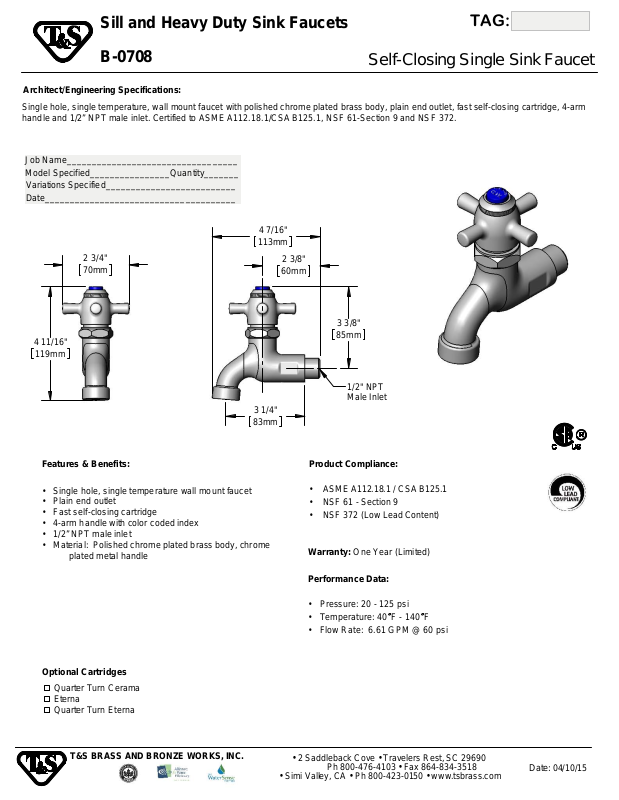

Sill and Heavy Duty Sink Faucets
TAG:
B-0708
Architect/Engineering Specifications:
Single hole, single temperature, wall mount faucet with polished chrome plated brass body, plain end outlet, fast self-closing cartridge, 4-arm
handle and 1/2” NPT male inlet. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372.
Job Name__________________________________
Model Specified________________Quantity_______
Variations Specified__________________________
Date______________________________________
4 11/16"
119mm
2 3/4"
70mm
4 7/16"
113mm
2 3/8"
60mm
3 3/8"
85mm
Self-Closing Single Sink Faucet
Features & Benefits:
Single hole, single temperature wall mount faucet•
Plain end outlet•
Fast self-closing cartridge•
4-arm handle with color coded index•
1/2” NPT male inlet •
•
Material: Polished chrome plated brass body, chrome
plated metal handle
Optional Cartridges
Quarter Turn Cerama
Eterna
Quarter Turn Eterna
3 1/4"
83mm
1/2" NPT
Male Inlet
Product Compliance:
• ASME A112.18.1 / CSA B125.1
•
NSF 61 - Section 9
NSF 372 (Low Lead Content)
Warranty:
Performance Data:
Pressure: 20 - 125 psi •
Temperature: 40
• Flow Rate: 6.61 GPM @ 60 psi
One Year (Limited)
F - 140 F•
T&S BRASS AND BRONZE WO RKS, INC.
• 2 Saddleback Cove
Simi Valley, CA
•
•
Travelers Rest, SC 29690
• Ph 800-476-4103
Ph 800-423-0150 • www.tsbrass.com
•
Fax 864-834-3518
•
Date:
04/10/15
