T&S Brass B-0702-CR Parts Manual
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0702-CR
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
__________________________Date_________
2 11/16"
68mm
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________

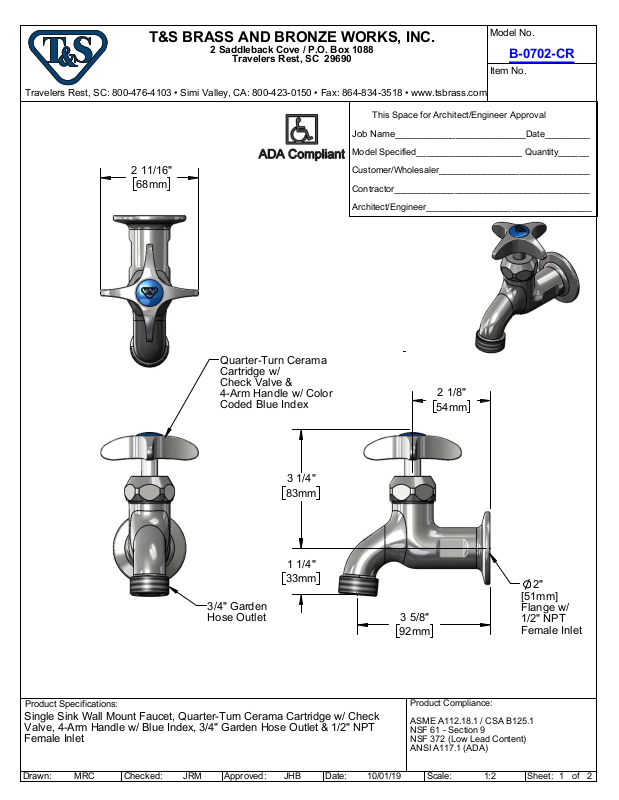

Quarter-Turn Cerama
Cartridge w/
Check Valve &
4-Arm Handle w/ Color
Coded Blue Index
2 1/8"
54mm
3 1/4"
83mm
1 1/4"
33mm
3/4" Garden
Hose Outlet
Product Specifications:
Single Sink Wall Mount Faucet, Quarter-Turn Cerama Cartridge w/ Check
Valve, 4-Arm Handle w/ Blue Index, 3/4" Garden Hose Outlet & 1/2" NPT
Female Inlet
3 5/8"
92mm
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
2"
[51mm]
Flange w/
1/2" NPT
Female Inlet
Drawn: Approved:
MRC
Checked:
JRM
JHB
Date: 1:2
10/01/19
Scale:
Sheet:
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0702-CR
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM NO. SALES NO. DESCRIPTION
1 018506-19NS Blue Button Index, Press-in
2 000925-45 Lab Handle Screw
3 002521-45NS 4-Arm Handle (New Style)
4 012394-25NS
Quarter-Turn Cerama Cartridge w/ Check
Valve, RTC
1
2
3
4
Product Specifications:
Single Sink Wall Mount Faucet, Quarter-Turn Cerama Cartridge w/ Check
Valve, 4-Arm Handle w/ Blue Index, 3/4" Garden Hose Outlet & 1/2" NPT
Female Inlet
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
MRC
JRM 10/01/19 Scale:
Approved:Drawn:
Date:Checked:
NTS
of
2
2Sheet:JHB
