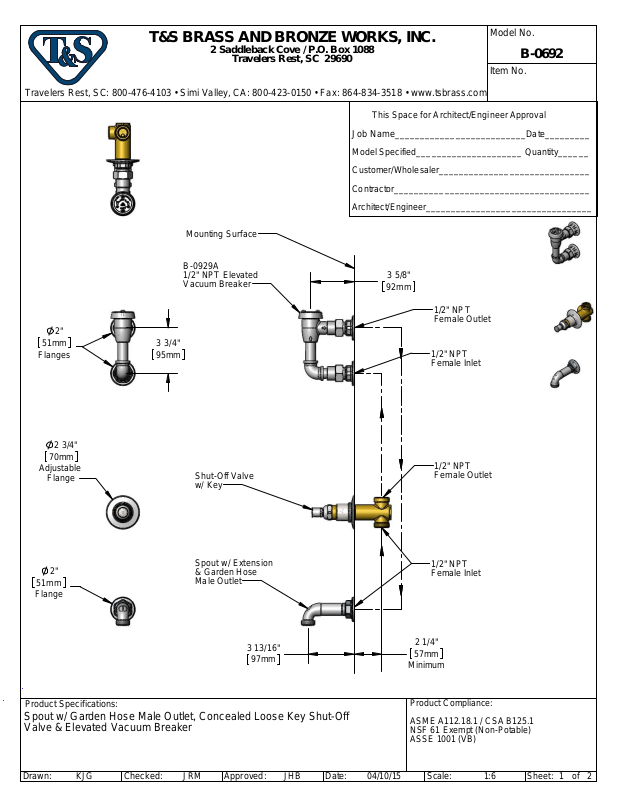

T&S Brass B-0692 Specifications
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Model No.
B-0692
Item No.
2"
51mm
Flanges
3 3/4"
95mm
Mounting Surface
B-0929A
1/2" NPT Elevated
Vacuum Breaker
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
3 5/8"
92mm
1/2" NPT
Female Outlet
1/2" NPT
Female Inlet
2 3/4"
70mm
Adjustable
Flange
2"
51mm
Flange
Product Specifications:
Shut-Off Valve
w/ Key
Spout w/ Extension
& Garden Hose
Male Outlet
3 13/16"
97mm
Spout w/ Garden Hose Male Outlet, Concealed Loose Key Shut-Off
Valve & Elevated Vacuum Breaker
1/2" NPT
Female Outlet
1/2" NPT
Female Inlet
2 1/4"
57mm
Minimum
Product Compliance:
ASM E A112.18.1 / CSA B125 .1
NSF 61 Exempt (Non-Potable)
ASSE 1001 (VB)
KJG
Checked:
JRM
Approved:Drawn:
JHB
Date: 1:6
04/10/15
Scale:
Sheet:
of
2
1
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM
NO.
1 00AA
2 B-0929A
3 000870-40 BL-6520-01 Male Half Union
3
1
4 002534-25 Close Nipple, 1/2" NPT
5 B-0969 1/2" NPT Vacuum Breaker
4
6 001510-40 Nipple, 1/2" x 2 5/8"
7 001357-40 Cast Elbow, 1/2"
5
8 001509-40 Nipple, 1/2" NPT X 1 1/2"
9 001019-45 Coupling Nut Washer
10 151F Escutcheon Tube
11 000939-45 Escutcheon, Set Screw
6
12 001501-40 Escutcheon
13 124A
14 001605-45 Cap
15 001618-40 Spout, Short
16 B-0446 Inlet Extension
SALES NO. DESCRIPTION
1/2" NPT Female Eccentric
Flange
1/2" NPT Atmospheric Vacuum
Breaker
Loose Key Stop w/ T-handle,
Screw & Cap
Model No.
B-0692
Item No.
7 8
10
11
12
13
14
16
15
Product Specifications:
921
Spout w/ Garden Hose Male Outlet, Concealed Loose Key Shut-Off
Valve & Elevated Vacuum Breaker
Product Compliance:
ASM E A112.18.1 / CSA B125 .1
NSF 61 Exempt (Non-Potable)
ASSE 1001 (VB)
Drawn: Approved:
KJG
Checked:
JRM 04/10/15 Scale:
Date:
NTS
of
2
Sheet:JHB
2
