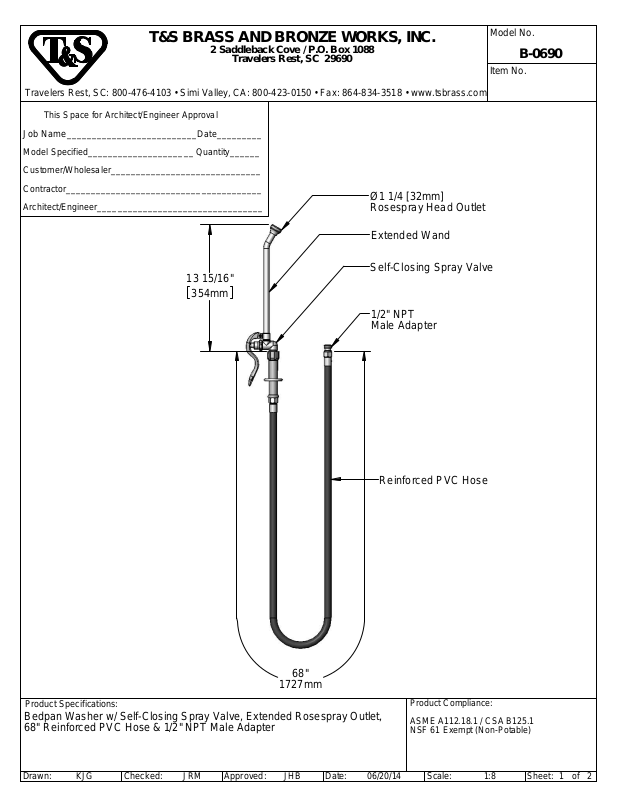

T&S Brass B-0690 Specifications

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Model No.

B-0690

Item No.

Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com

This Space for Architect/Engineer Approval

Job Name__________________________Date_________

Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________

Ø1 1/4 [32mm]

Architect/Engineer_________________________________

Rosespray Head Outlet

Extended Wand

Self-Closing Spray Valve

13 15/16"

354mm

1/2" NPT
Male Adapter

68"

1727mm

Product Specifications:

Bedpan Washer w/ Self-Closing Spray Valve, Extended Rosespray Outlet,
68" Reinforced PVC Hose & 1/2" NPT Male Adapter

Reinforced PVC Hose

Product Compliance:
ASM E A112.18.1 / CSA B125.1

NSF 61 Exempt (Non-Potable)

Drawn: Approved:

KJG

Checked:

JHB

Date:

06/20/14JRM

Scale:

1:8

of

2

1Sheet:

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Model No.

B-0690

Item No.

Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com

1

2

3
4

5
3

ITEM

NO.

1 006E Rosespray Head
2 002865-40 Extended Spray Wand

3 010476-45 #27 Washer
4 000907-45 Spray Valve Hold Down Ring

5 055A Adapter, 1/2 NPT Male
6 B-0068-R 68" Reinforced PVC Hose w/ Handle

SALES NO. DESCRIPTION

6

Product Specifications:

Bedpan Washer w/ Self-Closing Spray Valve, Extended Rosespray Outlet,
68" Reinforced PVC Hose & 1/2" NPT Male Adapter

Product Compliance:
ASM E A112.18.1 / CSA B125.1

NSF 61 Exempt (Non-Potable)

KJG

Checked:

JRM Date:

Approved:Drawn:

06/20/14 Scale:

NTS

of

2

2Sheet:JHB
