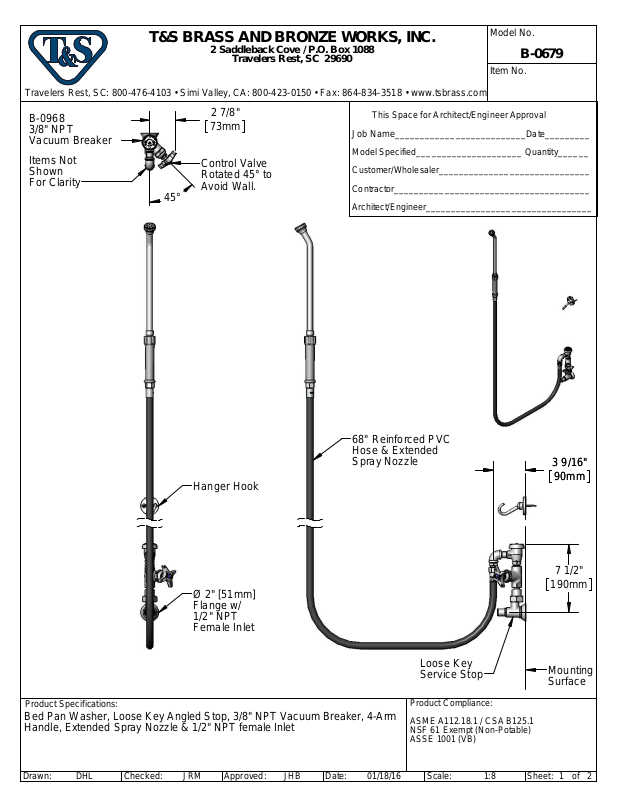

Page 1
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
Model No.
B-0679
Item No.
B-0968
3/8" NPT
Vacuum Breaker
Items Not
Shown
For Clarity
2 7/8"
73mm
Control Valve
Rotated 45° to
Avoid Wall.
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
__________________________Date_________
45°
Architect/Engineer_________________________________
68" Reinforced PVC
Hose & Extended
Spray Nozzle
Hanger Hook
Ø 2" [51mm]
Flange w/
1/2" NPT
Female Inlet
Product Specifications:
Bed Pan Washer, Loose Key Angled Stop, 3/8" NPT Vacuum Breaker, 4-Arm
Handle, Extended Spray Nozzle & 1/2" NPT female Inlet
Loose Key
Service Stop
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 Exempt (Non-Potable)
ASSE 1001 (VB)
3 9/16"
3 9/16"
90mm
90mm
7 1/2"
190mm
Mounting
Surface
Drawn: Approved:
DHL
Checked:
JHB
Date:
01/18/16JRM
Scale:
1:8
of
2
1Sheet:
Page 2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM
3
8
2
7
6
5
4
9
10
SALES NO. DESCRIPTION
NO.
1 B-0068-R
68" Reinforced PVC Hose w/
Handle
2 010476-45 #27 Washer
3 002861-40 Bedpan Spray Nozzle
4 053A Adapter, 3/8" NPT Male
5 001355-40 Elbow, 3/8 NPT
6 002341-40 3/8" NPT x 1 1/2" Nipple
7 B-0968 3/8" NPT Vacuum Breaker
8 B-0104-D Dummy Wall Hook Bracket
9 002535-25 3/8" Close Nipple
10 007010-40
11 B-1351
Straight Stop w/ 4-Arm Handle &
Blue Index
Loose Key, 1/2" NPT Angled
Stop w/ Tee Handle & Screw
12 000763-20 Seat
13 166A
Service Stop Spindle w/ Cap,
Handle & Screw
Model No.
B-0679
Item No.
1
Product Specifications:
11
12
13
2
Bed Pan Washer, Loose Key Angled Stop, 3/8" NPT Vacuum Breaker, 4-Arm
Handle, Extended Spray Nozzle & 1/2" NPT female Inlet
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 Exempt (Non-Potable)
ASSE 1001 (VB)
DHL
Checked: Date:
JRM 01/18/16 Scale:
Approved:Drawn:
NTS
of
2
2Sheet:JHB
