T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-0666-POL
Item No.
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
13 15/16"
[354mm]
Simi Valley, CA: 800-423-0150
Wall
Integral
Stop
Fax: 864-834-3518
www.tsbrass.com
Support Rod Asm. Furnished w/
Wall Bracket and Mounting Screws
Hot & Cold
Eterna Cartridges
w/ Spring Checks
& Lever Handles
w/ Color Coded
B-0969
1/2" Vacuum Breaker
Indexes
Wall Brace
Not Shown
Male Garden
Hose Outlet
1/2" NPT
Female
Inlets
3 3/8"
[86mm]
Ø2"
[51mm]
Flanges
9 13/16"
[250mm]

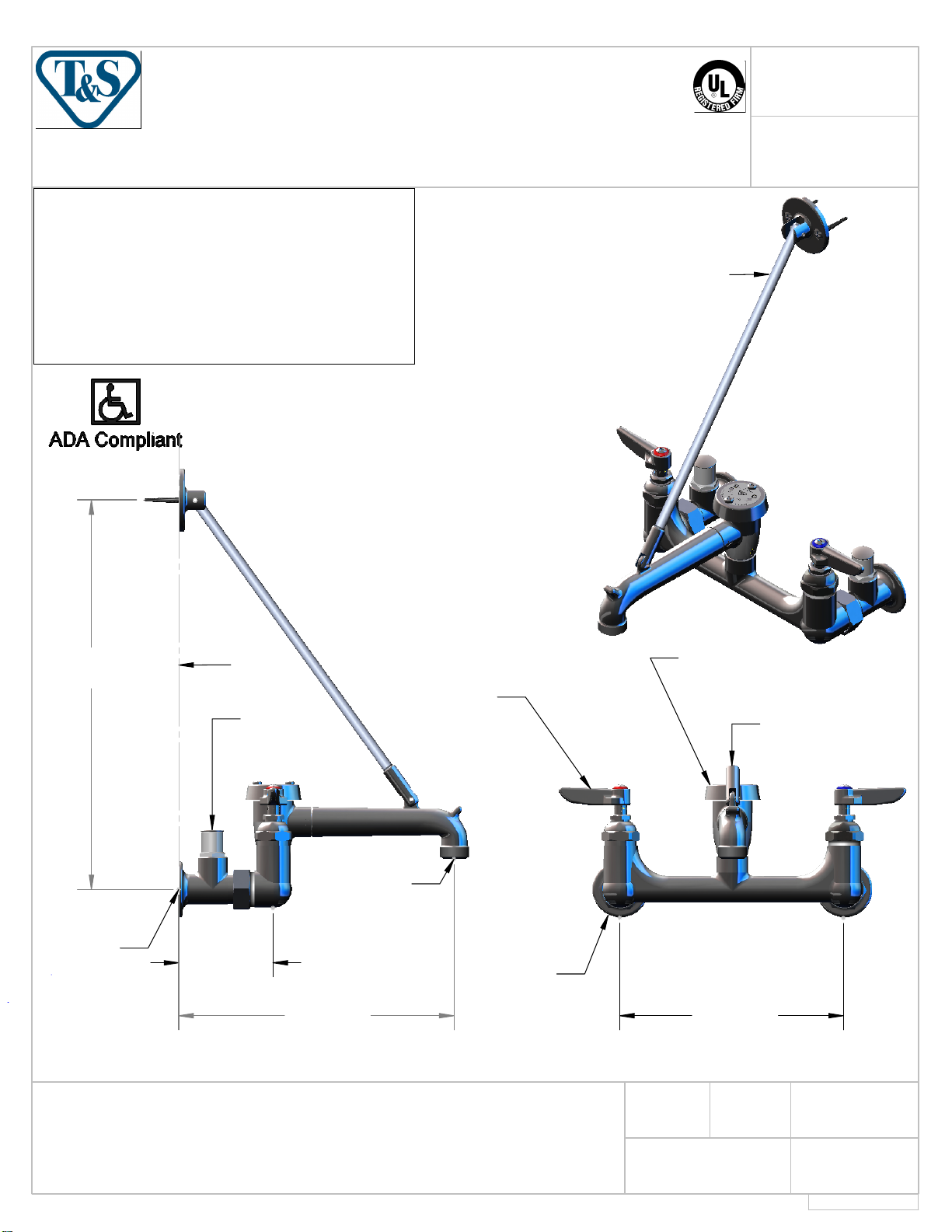

Product Specifications:
Service Sink Faucet, Polished Chrome Finish, Lever Handles, Integral
Stops, Vacuum Breaker, Wall Brace Assembly, 1/2" NPT Female Inlets
& Male Garden Hose Outlet
Drawn
DHL
Scale:
8"
c/c
[203mm]
Checked
GEF
1:4
Approved
JHB
Date:
5/16/08
Sheet:
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-0666-POL
Item No.
Travelers Rest, SC: 800-476-4103
1
Simi Valley, CA: 800-423-0150
ITEM
NO.
SALES NO.
1
2
3
4
5
6
7
8
9
6
10
11
12
13
14
Fax: 864-834-3518
002712-40
001661-45
001638-45
000922-45
012443-40
B-0969
002711-40
001660-45
012442-40
001019-45
001605-45
002892-40
000763-20
00JJ
www.tsbrass.com

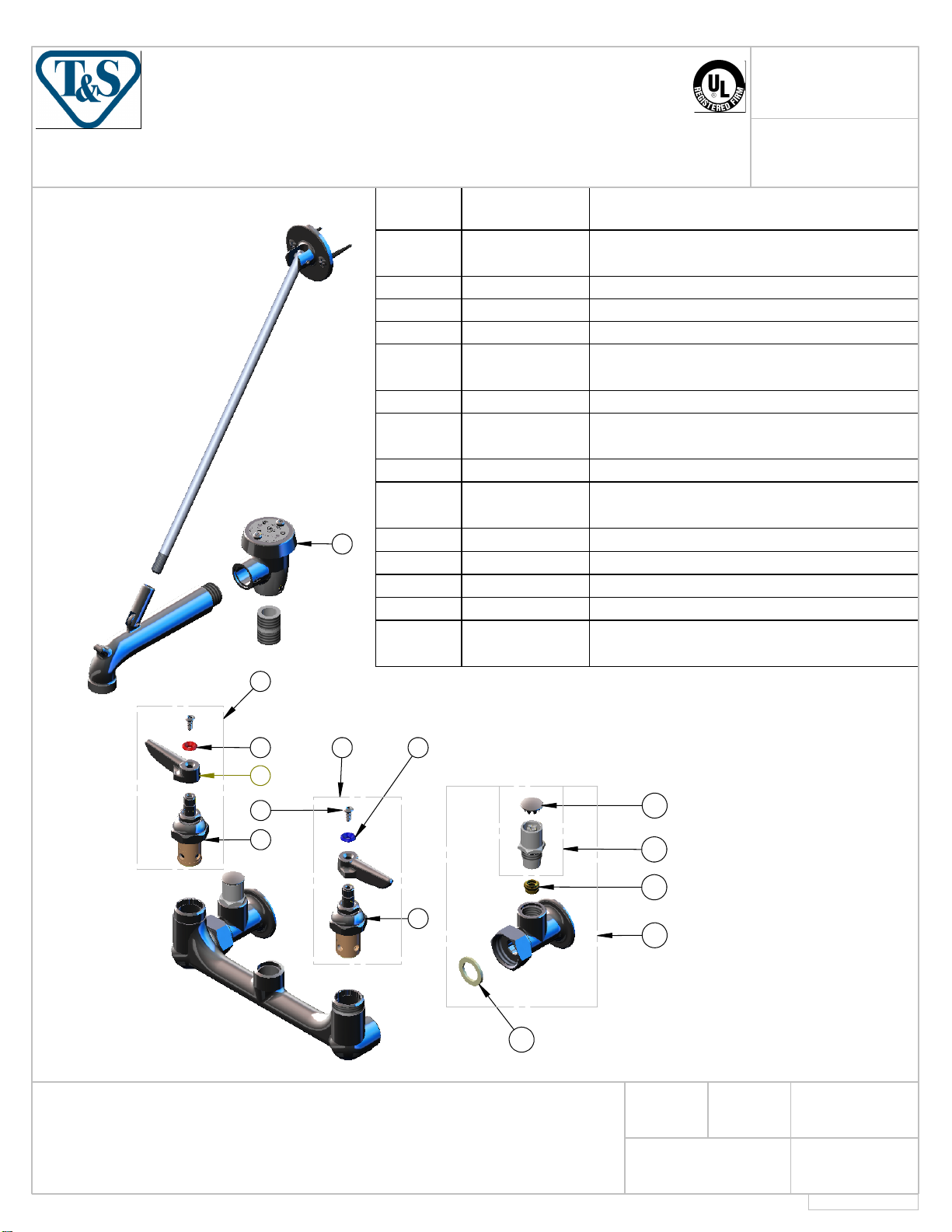

DESCRIPTION
Hot Eterna Spindle Assembly w/
Spring Check, Handle, Index & Screw
Red Index-HW
Lever Handle
Lever Handle Screw
Hot Eterna Spindle Assembly w/
Spring Check
Vacuum Breaker, 1/2"
Cold Eterna Spindle Assembly w/
Spring Check, Handle, Index & Screw
Blue Index-CW
Cold Eterna Spindle Assembly w/
Spring Check
Coupling Nut Washer
Cap
Spindle Asm w/ Cap
Seat
Flange w/ Integral Stop Asm,
1/2" NPT Female Inlet
2 8
?
4
5
Product Specifications:
7
9
10
Service Sink Faucet, Polished Chrome Finish, Lever Handles, Integral
Stops, Vacuum Breaker, Wall Brace Assembly, 1/2" NPT Female Inlets
& Male Garden Hose Outlet
11
12
13
14
Drawn
DHL
Scale:
Checked
GEF
1:4
Approved
JHB
Date:
5/16/08
Sheet:
of
2
2
