Hot & Cold
Eterna Cartridges
w/ Spring Checks
& 6" Wrist Action
Handles w/ Color
Coded Indexes
Fax: 864-834-3518
www.tsbrass.com
Split-Ring Clamp Upper
Assembly Fastens to
Ø 1-1/2" O.D.
Flush Tube
(not shown)
Adjustable
B-0969
1/2" Vacuum
Adjustable
Breaker
Ø 2 [51mm]
Flanges w/
1/2" NPT
Female Inlets
8"
[203mm]
Inlets Adjustable
from 7 3/4" to 8 1/4"
[197mm to 210mm]

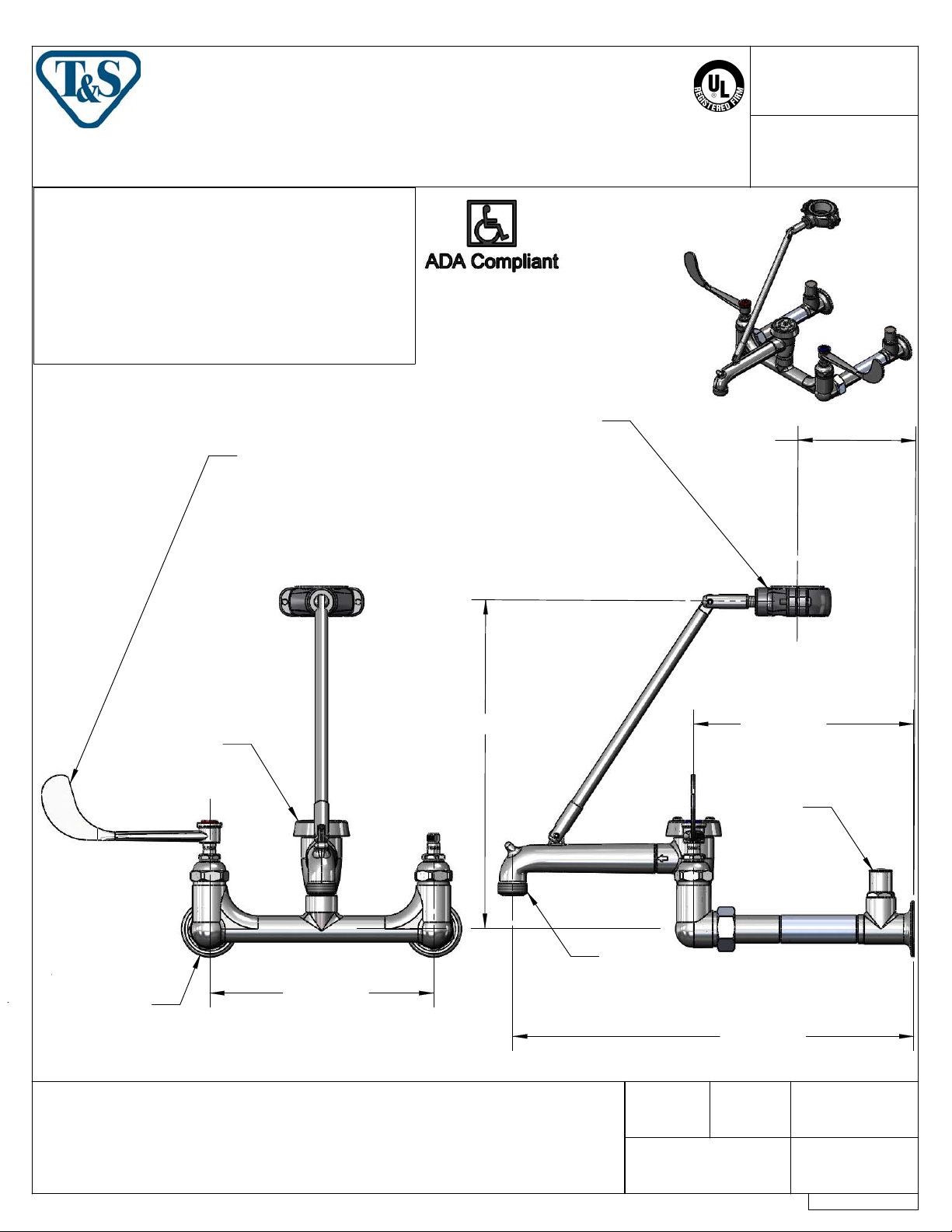

Product Specifications:
Service Sink Faucet, Polished Chrome Finish w/ Split-Ring Clamp
Upper Assembly for use on Ø 1-1/2" O.D. Flush Tubes, 6" Wrist
Handles, Vacuum Breaker, 1/2" NPT Female Inlets, Integral Stop
& Garden Hose Outlet
3/4-11 1/2
Garden Hose
Male Outlet
Drawn Checked
Scale:
1:4
7 7/8"
[200mm]
Integral
Service
Stops
14 5/16"
[364mm]
KJG
Approved
JHBDHL
Date:
08/10/10
Sheet:
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-0664-05
Item No.
Travelers Rest, SC: 800-476-4103
1
Simi Valley, CA: 800-423-0150
Fax: 864-834-3518
www.tsbrass.com

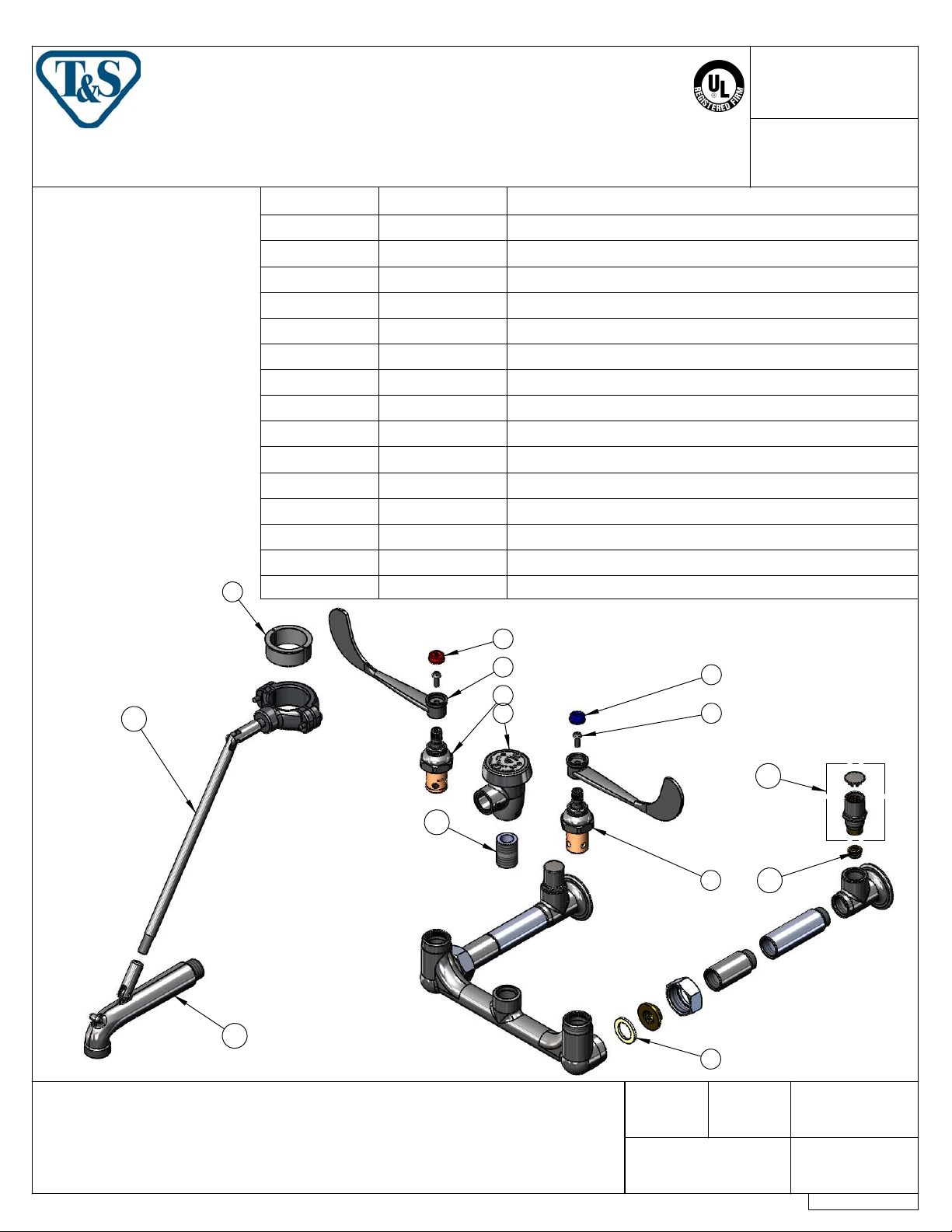

ITEM NO. SALES NO. DESCRIPTION
1 016863-20 Clamp Split Bushing (Set of 2 halves)
2 001194-45 Red HW Index
3 B-WH6 6" Wrist Action Handle
4 012443-40 Hot Eterna Spindle Assembly w/ Spring Check
5 B-0969 Vacuum Breaker, 1/2"
6 001686-45 Blue CW Index
7 000925-45 Lab Handle Screw
8 012442-40 Cold Eterna Spindle Assembly w/ Spring Check
9 001019-45 Coupling Nut Washer
10 002892-40 Stop Spindle Assembly w/ Cap
11 000763-20 Seat
12 002534-25 Close Nipple, 1/2" x 1 5/32" Lg Rough Chrome
13 016449-40 Split Ring Pipe Clamp Upper Assembly
14 009545-40 Spout Assembly, Polish Chrome w/ Clevis
18 009545-40 Spout w/ Clevis Assembly - Polish Chrome
