T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Simi Valley, CA: 800-423-0150
Fax: 864-834-3518
REG. #A2601
ISO #9001
www.tsbrass.com

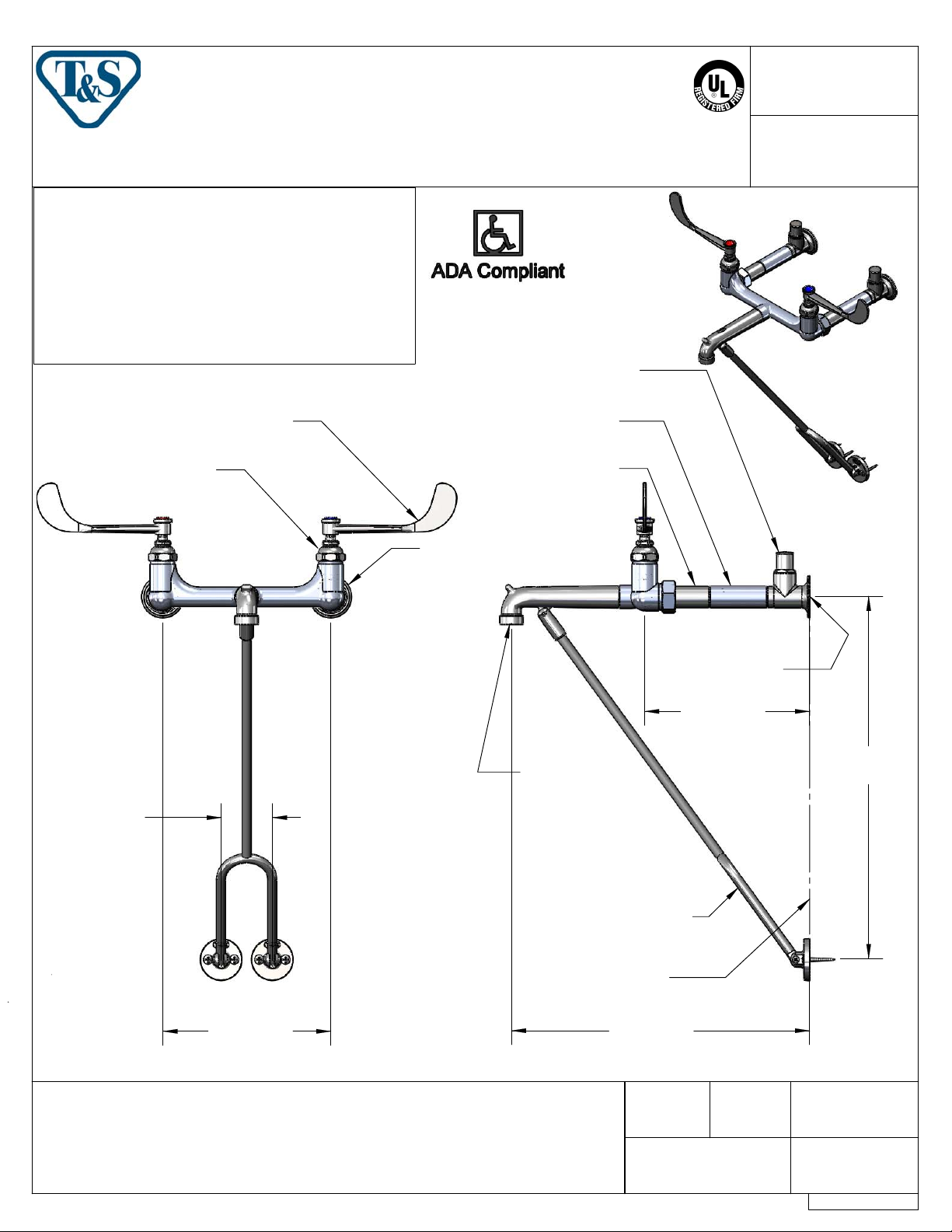

Model No.
B-0664-01
Item No.
Contractor_______________________________________
Architect/Engineer_________________________________
B-WH6
6" Wrist Action Handle
w/ Color Coded Indexes
Eterna Cartridges w/
Spring Checks
2 7/16"
[62mm]
Ø2" [51mm]
Flange
00JJ
Integral
Supply Stop
000610-25
Extension
000611-25
Extension
Plain End
Outlet
1/2" NPT
Female
Thread Inlet
7 7/8"
[200mm]
17 1/4"
[439mm]
8" c/c
[203mm]
Product Specifications:
8" Centers Service Sink w/ Plain End Spout, Polish Chrome,
Lower Wall Support, 6" Wrist Action Handles & 00JJ Integral
Stops w/ "T" Handle
Lower Wall Support
Assembly Furnished
w/ Wall Bracket &
Mounting Screws
Mounting Surface
14 3/16"
[361mm]
Drawn Checked
DHL
Scale:
KJG
NTS
Approved
JHB
Date:
01/1 3/201 0
Sheet:
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
Travelers Rest, SC: 800-476-4103

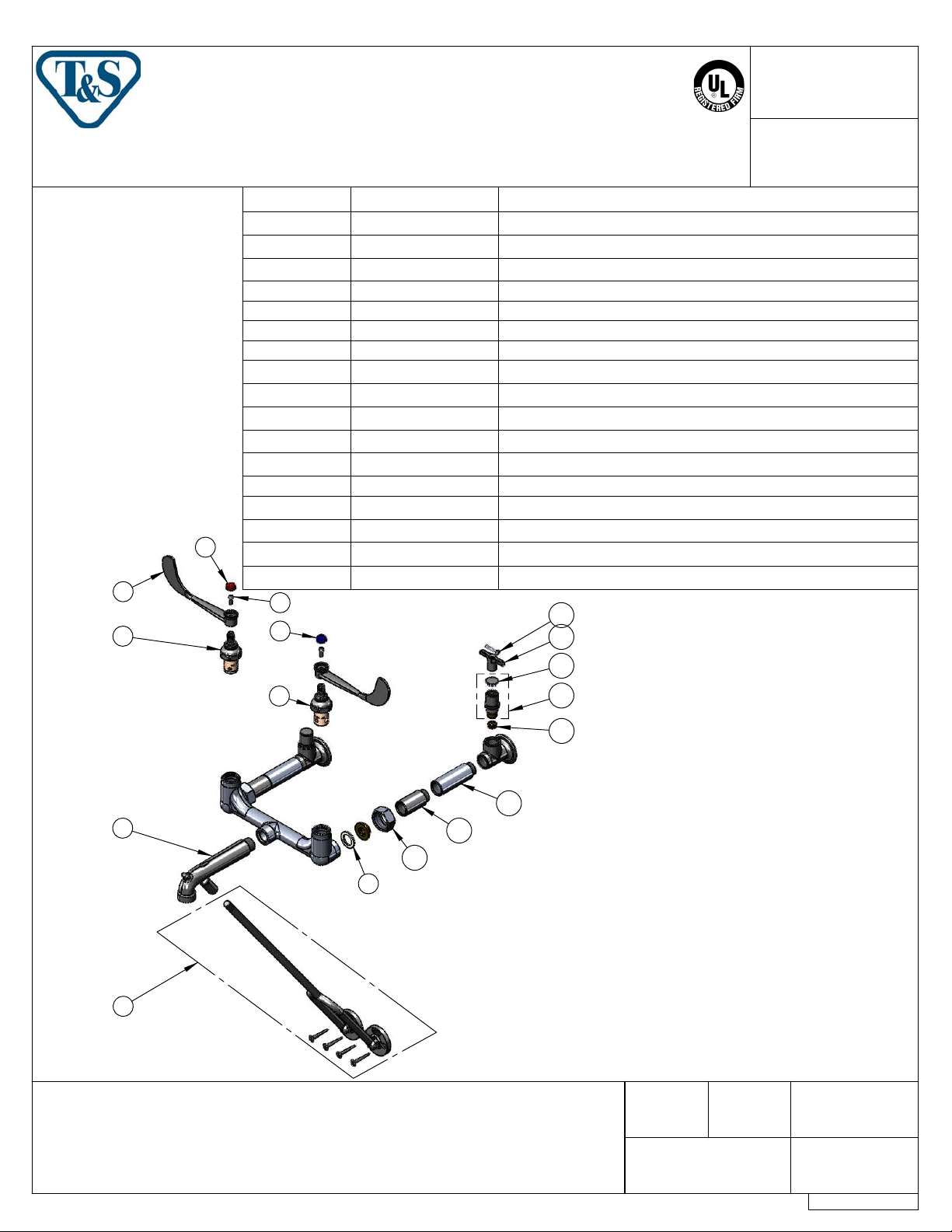

ITEM NO. SALES NO. DESCRIPTION
5
4
3
Model No.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
B-0664-01
Item No.
Simi Valley, CA: 800-423-0150
Fax: 864-834-3518
1 015476-40 Lower Support Rod Assembly (Long)
2 017535-40 Spout Assembly, Plain Outlet & Lower Clevis
3 012443-40 Hot Eterna Spindle Assembly w/ Spring Check
4 B-WH6 6" Wrist Action Handle
5 001194-45 Red HW Index
6 000925-45 Lab Handle Screw
7 001686-45 Blue CW Index
8 012442-40 Cold Eterna Spindle Assembly w/ Spring Check
9 001019-45 Coupling Nut Washer
10 000721-25 Flange Coupling Nut
11 000611-25 Extension, 1 3/4" Long
12 000610-25 Extension, 2 3/4" Long
13 000763-20 Seat
14 002892-40 Spindle Asm w/ Cap
15 001605-45 Cap
16 001802-45 Handle, Supply Stop "T"
17 002432-45 Loose Key Handle Screw
6
7
17
16
www.tsbrass.com
8
12
2
9
1
Product Specifications:
11
10
8" Centers Service Sink w/ Plain En d Spout, Polish Chrome,
Lower Wall Support, 6" Wrist Action Handles & 00JJ Integral
Stops w/ "T" Handle
15
14
13
Drawn
DHL
Scale:
Checked
KJG
NTS
Approved
JHB
Date:
01/1 3/201 0
Sheet:
of
2
2
