T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-0660-BSTR
Item No.
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
Simi Valley, CA: 800-423-0150
Fax: 864-834-3518
www.tsbrass.com

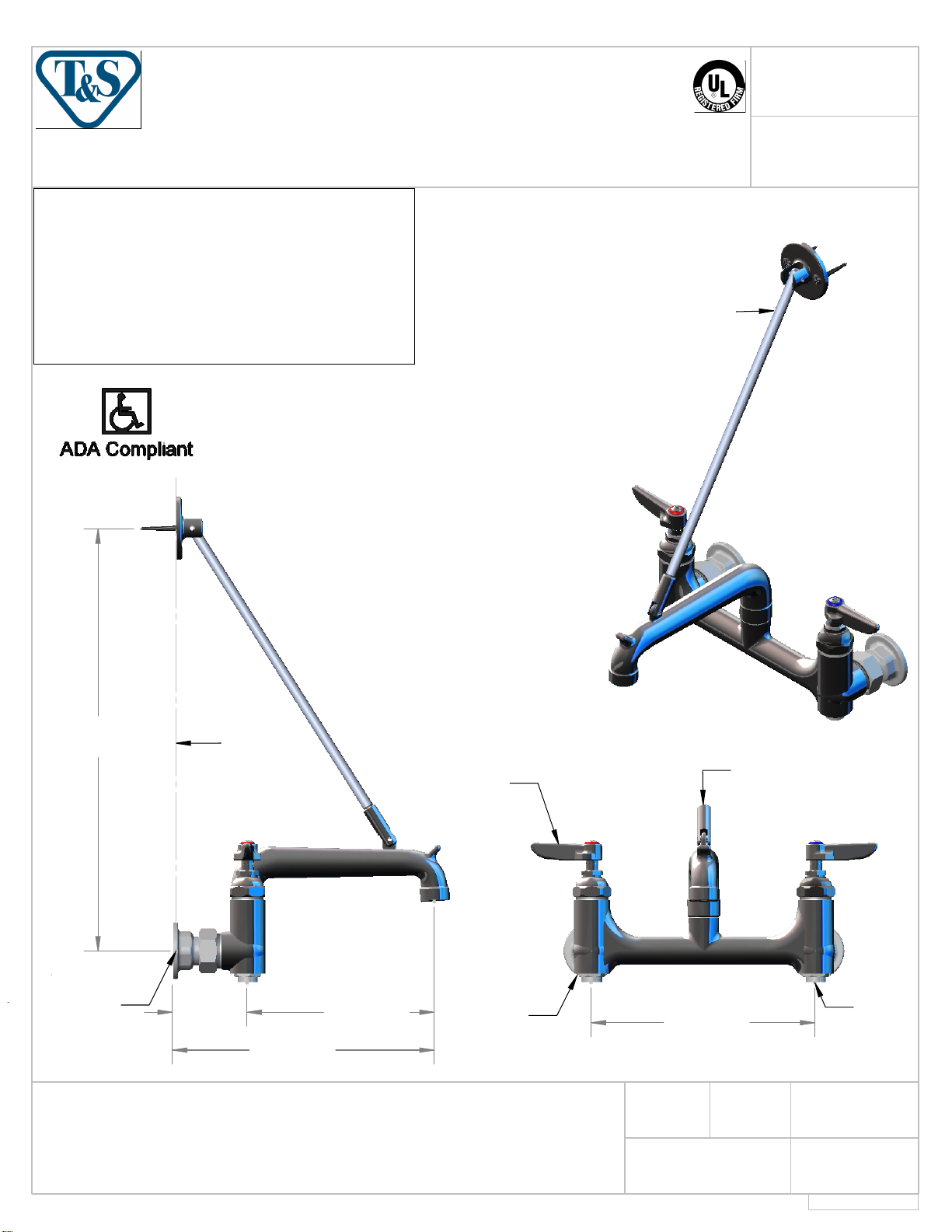

Support Rod Asm. Furnished w/
Wall Bracket and Mounting Screws
Hot & Cold
Eterna Cartridges
15 1/8"
[384mm]
Wall
w/ Spring Checks
& Lever Handles
w/ Color Coded
Indexes
1/2" NPT
Female
Inlets
2 5/8"
[64mm]
6 3/4"
[170mm]
Ø2
[51mm]
Flanges
9 3/8"
[235mm]
Product Specifications:
Service Sink Faucet, Rough Chrome Finish, Built-In Stops, Lever
Handles, Wall Brace Assembly, 1/2" NPT Female Inlets & Plain Outlet
Drawn
DHL
Scale:
8"
c/c
[203mm]
Checked
GEF
1:4
Wall Brace
Not Shown
Approved
JHB
Date:
5/16/08
Sheet:
Built-In
Stops
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Model No.
B-0660-BSTR
Item No.
Travelers Rest, SC: 800-476-4103
Simi Valley, CA: 800-423-0150
ITEM
NO.
SALES NO.
1
2
3
4
5
6
7
8
9
10
11
Fax: 864-834-3518
012442-40
012443-40
001638-45
001661-45
002712-40
002711-40
001019-45
000922-45
001660-45
00AA
163A
www.tsbrass.com
DESCRIPTION
Cold Eterna Spindle Assembly w/
Spring Check
Hot Eterna Spindle Assembly w/
Spring Check
Lever Handle
Red Index-HW
Hot Eterna Spindle Assembly w/
Spring Check, Handle, Index & Screw
Cold Eterna Spindle Assembly w/
Spring Check, Handle, Index & Screw
Coupling Nut Washer
Lever Handle Screw
Blue Index-CW
Flange Assembly, 00AA
BST Assembly, 163A
5
4
3
2
1
Product Specifications:
6
8
9
10
7
11
Service Sink Faucet, Rough Chrome Finish, Built-In Stops, Lever
Handles, Wall Brace Assembly, 1/2" NPT Female Inlets & Plain Outlet
Drawn
DHL
Scale:
Checked
GEF
Approved
JHB
Date:
1:4
5/16/08
Sheet:
2
of
2
