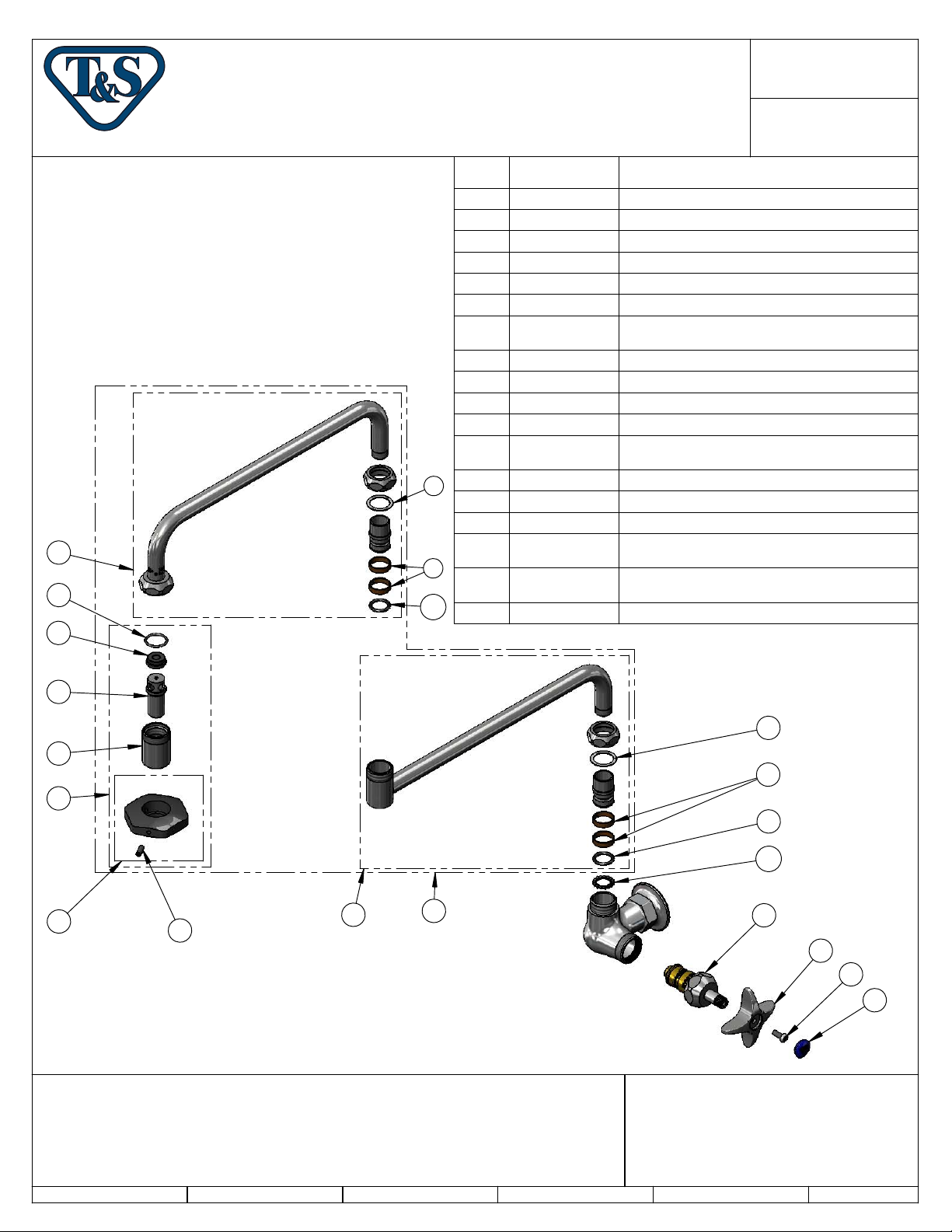

T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
Model No.
B-0594-CR
Item No.
3 1/8"
80mm
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
26 9/16"
675mm
12"
305mm
Swivel Joint
Heat
7 11/16"
195mm
Resistant
"On-Off"
Handle
2 1/2"
64mm
3 5/16"
84mm
Quarter-Turn Cerama Cartridge
w/ Check Valve &
4-Arm Handle w/
Blue Index
Product Specifications:
Pot Filler Faucet w/ Cerama Cartridge w/ Check Valve, 4-Arm Handle & Blue
(CW) Index, 24" Double Joint Swing Nozzle, Heat Resistant Handle & 1/2" NPT
Female Inlet
12"
305mm
Swivel Joint
Ø 2" [51mm]
Flange w/
1/2" NPT
Female Inlet
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
Drawn: Approved:
MRC
Checked:
JHB
Date:
05/11/18JRM
Scale:
1:6
of
2
1Sheet:
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM
NO.
10 001074-45 O-Ring
11 014200-45 Star Washer, Anti-Rotation
12 012394-25NS
13 002521-45NS 4-Arm Handle (New Style)
8
14 000925-45 Lab Handle Screw
15 018506-19NS Blue Button Index, Press-in
7
16 002872-40
9
6
10
17 002871-40
18 000936-45 Handle Set Screw
5
SALES NO. DESCRIPTION
1 001126-20 Handle w/ (2) Set Screws
2 035A Outlet
3 000587-25 Spout Body
4 001498-25 Spout
5 001089-45 Seal
6 003426-45 O-Ring
7 002869-40
24" Double Joint Swing Nozzle, 12"
Front Section
8 009538-45 Swivel Washer
9 011429-45 Swivel Sleeves (2)
Quarter-Turn Cerama Cartridge w/
Check Valve, RTC
24" Double Joint Swing Nozzle w/
Insulated Grip On/Off Outlet
24" Double Joint Swing Nozzle, 12"
Back Section
Model No.
B-0594-CR
Item No.
4
3
2
1
Product Specifications:
17
18
16
Pot Filler Faucet w/ Cerama Cartridge w/ Check Valve, 4-Arm Handle & Blue
(CW) Index, 24" Double Joint Swing Nozzle, Heat Resistant Handle & 1/2"
NPT Female Inlet
8
9
10
11
12
13
14
15
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
MRC
Checked: Date:
JRM
Approved:Drawn:
05/11/18 Scale:
NTS
of
2
2Sheet:JHB
