T&S Brass B-0527 Specifications
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0527
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________

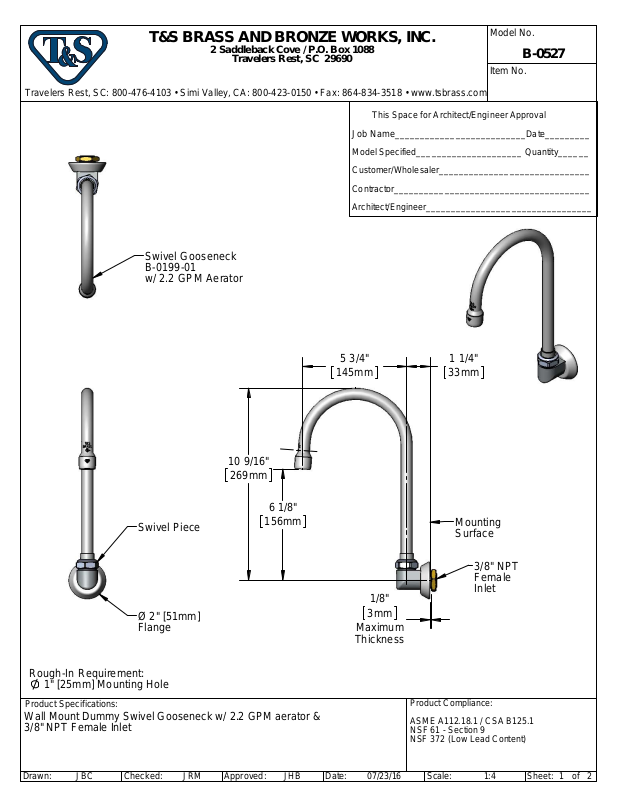

Swivel Gooseneck
B-0199-01
w/ 2.2 GPM Aerator
5 3/4"
145mm
1 1/4"
33mm
10 9/16"
269mm
Swivel Piece
6 1/8"
156mm
Ø 2" [51mm]
Flange
Rough-In Requirement:
1" [25mm] Mounting Hole
Product Specifications:
Wall Mount Dummy Swivel Gooseneck w/ 2.2 GPM aerator &
3/8" NPT Female Inlet
Mounting
Surface
3/8" NPT
Female
Inlet
1/8"
3mm
Maximum
Thickness
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
Drawn: Approved:
JBC
Checked:
JRM
JHB
Date: 1:4
07/23/16
Scale:
of
1Sheet:
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0527
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
1
ITEM NO. SALES NO. DESCRIPTION
1 B-0199-01
2 009538-45 Swivel Washer
3 011429-45 Swivel Sleeves (2)
4 001074-45 O-Ring
5 B-1912-01 Elbow & Shank Nut, Swivel Outlet
6 000713-20 Lock Nut
7 000023-40 Adjustable Wall Flange
2.2 GPM Aerator, 55/64"-27 UN
Female
2
5
6
3
4
7
Product Specifications:
Wall Mount Dummy Swivel Gooseneck w/ 2.2 GPM aerator &
3/8" NPT Female Inlet
Drawn:
JBC
Checked: Date:
JRM 07/23/16 Scale:
Approved:
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
NTS
of
2
2Sheet:JHB
