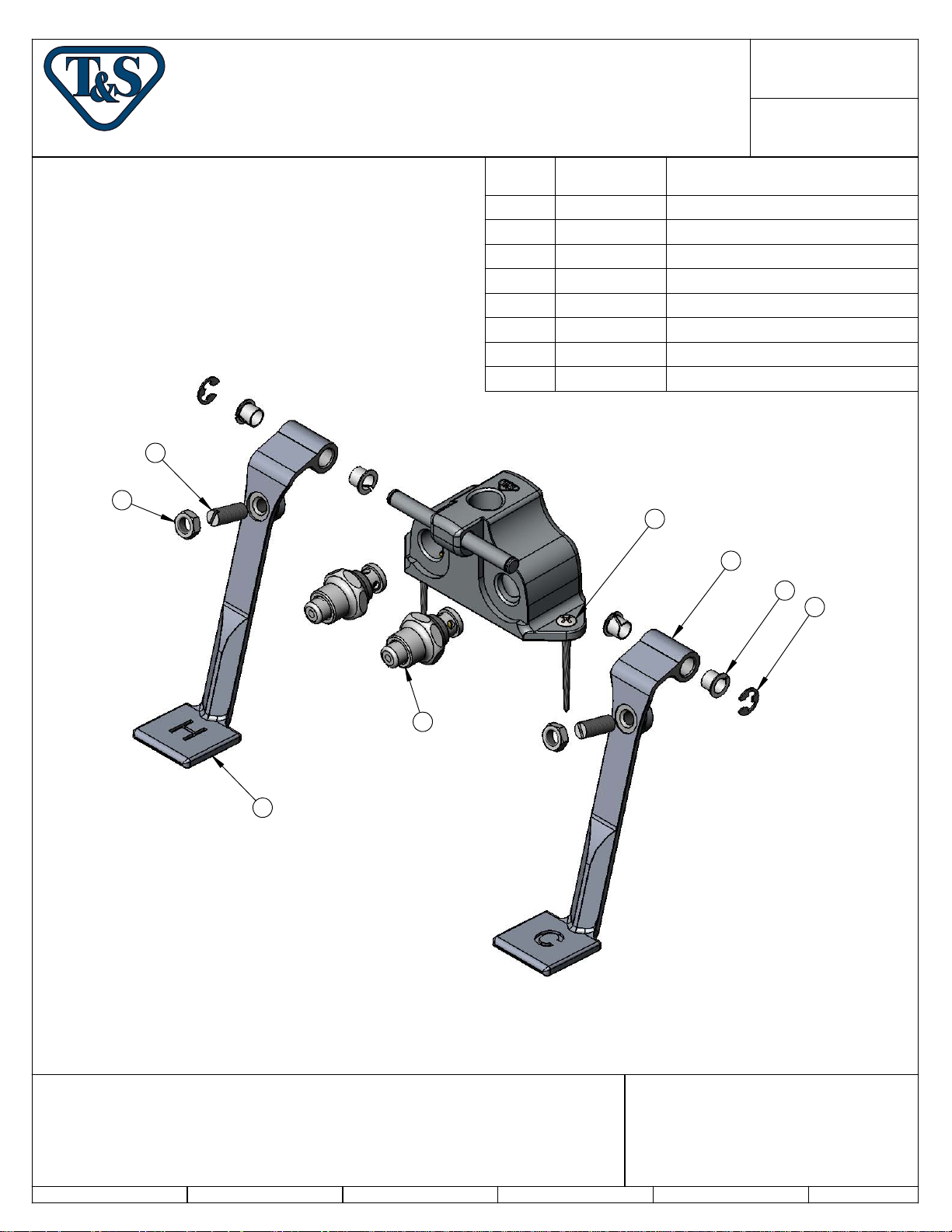

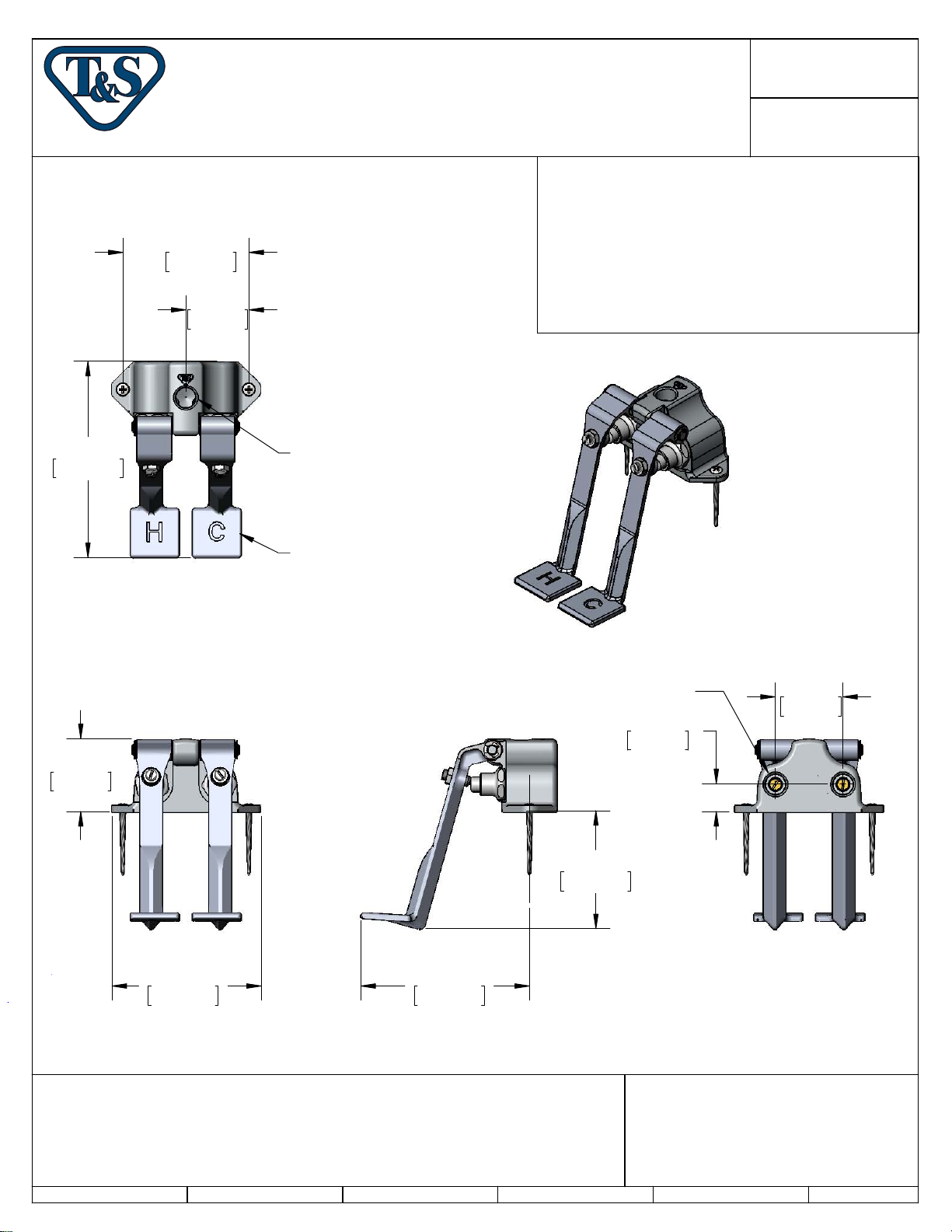

T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0505
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
4 1/2"
114mm
2 1/4"
57mm
7"
178mm
1/2" NPT
Female Outlet
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
Chrome Plated
Brass Foot Pedals
2 5/8"
66mm
5 5/16"
135mm
Product Specifications:
6"
153mm
Double Pedal Valve with 1/2" NPT Female Inlets & Outlet
1/2" NPT
Female Inlets
1"
2 7/16"
61mm
25mm
4 3/16"
107mm
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
Drawn:
JBC
Checked:
Approved: 2
JHB
Date:
03/17/15JRM
Scale:
1:4
of
1Sheet:
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0505
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
8
7
ITEM
NO.
1 003749-45 Foot Pedal Mtg. Screw
2 000241-20 Cold Foot Pedal
3 001602-45 Bushing, Pedal Valve
4 012512-45 E-Clip Retaining Ring
5 005312-40 Bonnet Assembly
6 000242-20 Hot Food Pedal
7 000952-45 Nut
8 001123-45 Nylon Set Screw
SALES NO. DESCRIPTION
1
2
3
4
5
6
Product Specifications:
Double Pedal Valve with 1/2" NPT Female Inlets & Outlet
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
JBC
Checked: Date:
JRM 03/17/15 Scale:
Approved:Drawn:
NTS
of
2
2Sheet:JHB
