133X
Swivel Gooseneck
w/ B-PT Stream
Regulator Outlet
Fax: 864-834-3518
www.tsbrass.com
Model No.
B-0325-CC-CR
Item No.
4"
102mm
Note: Rough-In Requirement
(2)
1" [25mm] Mounting Holes
Cerama Cartridges
& Lever Handles w/
Color Coded Indexes
Mounting Surface
1 5/16"
[33mm] Hex
Flat to Flat
9 1/8"
232mm
5 11/16"
145mm
1/2" NPT
"CC" Male
Inlets
13 3/16"
335mm
Product Specifications:
4" c/c Deck Mount Mixing Faucet w/ Cerama Cartridges,
Outlet & 1/2" NPT "CC" Male Inlets
KJG
Scale:
CheckedDrawn
GEF
1:4
Approved
JHB
Date:Lever Handles, Swivel Gooseneck w/ B-PT Stream Regulator
11/28/11
Sheet:
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
Travelers Rest, SC: 800-476-4103
3
2
1
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Simi Valley, CA: 800-423-0150
ITEM
NO.

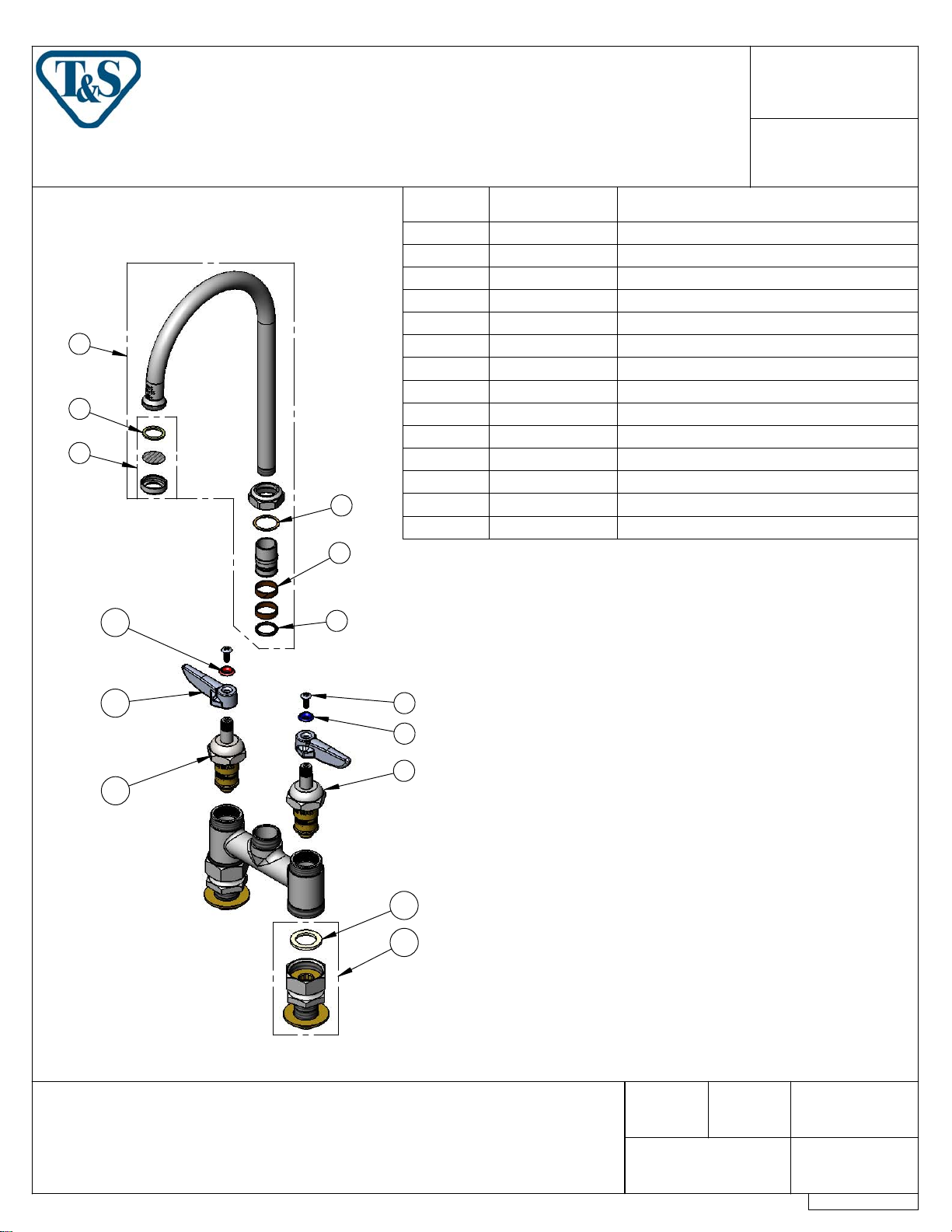

1 B-PT Stream Regulator Outlet
2 001048-45 Nozzle Tip Washer
3 133X Swivel Gooseneck
4 009538-45 Swivel Washer
5 011429-45 Swivel Sleeves (2)
6 001074-45 O-Ring
7 000922-45 Lever Handle Screw
8 001660-45 Blue Index-CW
9 011279-25 Cerama Cartridge LTC
10 001019-45 Coupling Nut Washer
11 00CC Male Inlet, 1/2" NPT
12 011278-25 Cerama Cartridge RTC
4
5
13 001638-45 Lever Handle
14 001661-45 Red Index-HW
Model No.
B-0325-CC-CR
Item No.
Fax: 864-834-3518
SALES NO. DESCRIPTION
www.tsbrass.com
14
13
12
6
7
8
9
10
11
Product Specifications:
4" c/c Deck Mount Mixing Faucet w/ Cerama Cartridges,
Lever Handles, Swivel Gooseneck w/ B-PT Stream Regulator
Outlet & 1/2" NPT "CC" Male Inlets
Drawn
KJG
Scale:
Checked
GEF
1:4
Approved
JHB
Date:
11/28/11
Sheet:
of
2
2
