T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Model No.
B-0305-QT-WS
Item No.
13 13/16"
351mm
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________

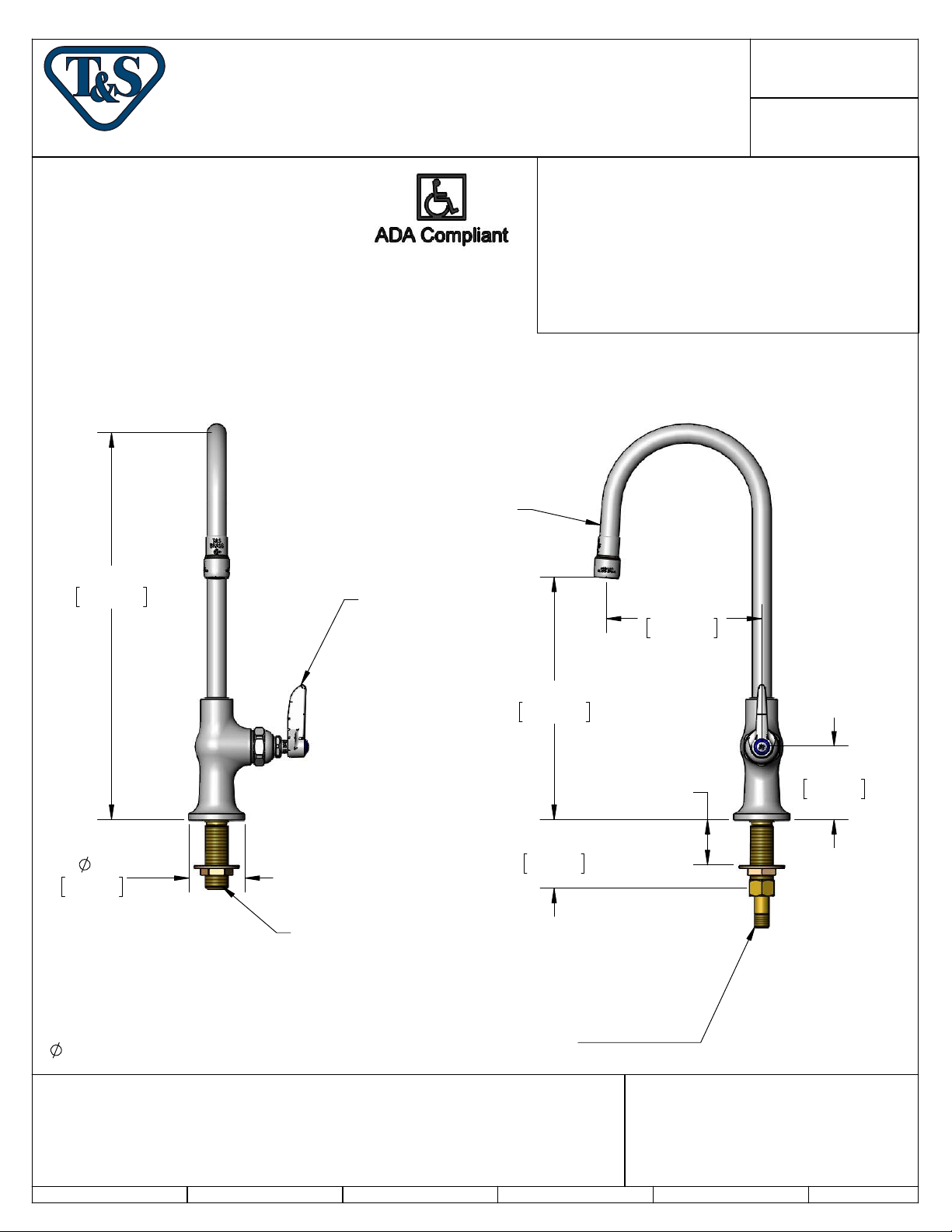

Rigid Gooseneck
w/ 1.5 GPM Aerator
1/4 Turn Eterna
Cartridge w/
Lever Handle & Blue
5 9/16"
141mm
Color Coded Index
8 11/16"
220mm
2 7/16"
2"
62mm
51mm
1/2" NPSM
Male Inlet
150A
Optional Tailpiece & Nut
Rough-in Requirement:
1" [25mm] Hole
Product Specifications:
for 1/4" NPT Connection
(Included)
Single Pantry Faucet, Rigid Gooseneck, 1.5 GPM Aerator,
Quarter Turn Eterna Cartridge, Lever Handle, 1/2" NPSM Shank Inlet
1 1/2" Max
[32mm]
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
67mm
2 5/8"
Drawn: Approved:
Checked:
GEF
JHB 2
Date:KJG
02/09/16
Scale:
1:4
of
1Sheet:
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com

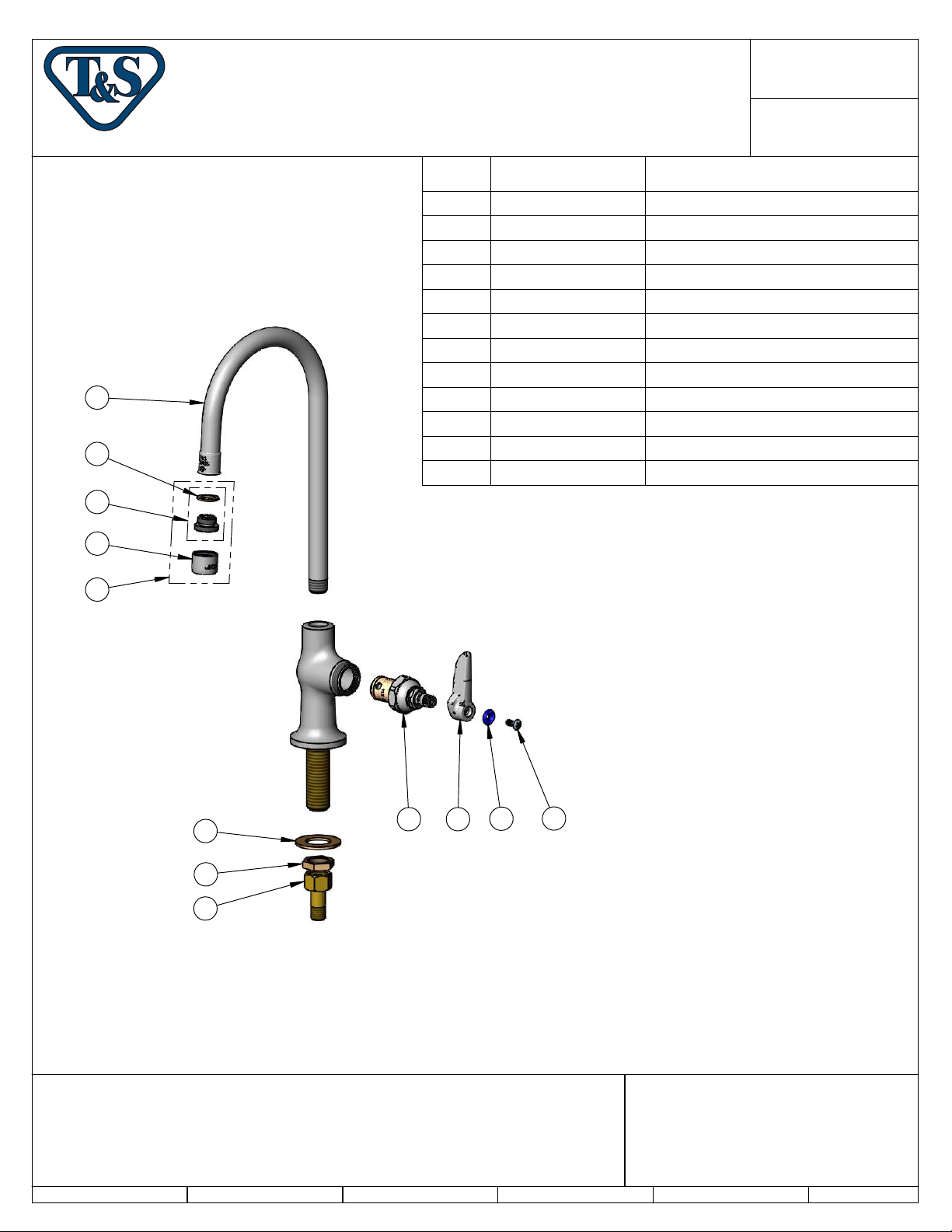

ITEM
NO.
1 B-0199-02-WS 1.5 GPM Aerator w/ Adapter
2 B-0199-01-WS 1.5 GPM Aerator, 55/64-27 Female
3 044A 3/8" to Aerator Adapter
4 001043-45 Washer
5 000398-40 Rigid Gooseneck
6 005960-40QT 1/4 Turn Eterna, RTC
7 001638-45 Lever Handle
8 001660-45 Blue Index-CW
5
9 000922-45 Lever Handle Screw
10 150A 1/4" NPT Tailpiece & Nut
4
11 002954-45 Shank Lock Nut
12 000999-45 Brass Lock Washer
SALES NO. DESCRIPTION
Model No.
B-0305-QT-WS
Item No.
3
2
1
12
6 7
8
9
11
10
Product Specifications:
Single Pantry Faucet, Rigid Gooseneck, 1.5 GPM Aerator,
Quarter Turn Eterna Cartridge, Lever Handle, 1/2" NPSM Shank Inlet
KJG
Checked: Date:
GEF
Approved:Drawn:
02/09/16
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Scale:
NTS
of
2
2Sheet:JHB
