T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0301
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
7 5/16"
186mm
133X
Swivel Gooseneck w/
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
5 11/16"
145mm
Stream Regulator Outlet
Eterna Cartridges &
Lever Handles w/
Color Coded Indexes
9 1/2"
241mm
Mounting Surface
2 5/16"
58mm
1 1/4"
32mm
Maximum
18" Flexible
Thickness
Stainless Steel
Supply Hoses
Compression Fittings
for 5/8" O.D. Copper Tubing
(Remove Compression Nut
Rough-In Requirement:
for 1/2" NPSM Male)
1 1/2" [38mm] Mounting Hole

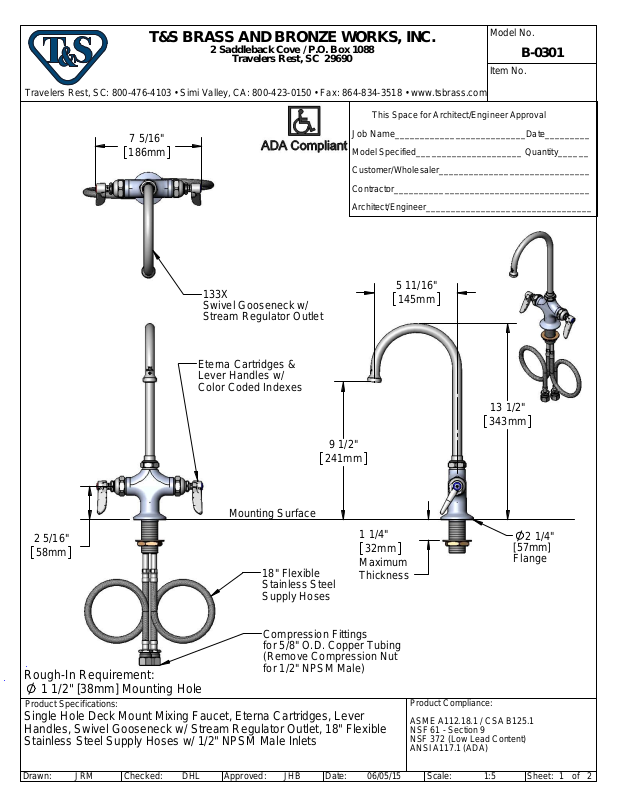

Product Specifications:
Single Hole Deck Mount Mixing Faucet, Eterna Cartridges, Lever
Handles, Swivel Gooseneck w/ Stream Regulator Outlet, 18" Flexible
Stainless Steel Supply Hoses w/ 1/2" NPSM Male Inlets
13 1/2"
343mm
2 1/4"
[57mm]
Flange
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
JRM
Checked:
Approved:Drawn:
JHB
Date: 1:5
06/05/15DHL
Scale:
of
1Sheet:
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0301
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM
NO.
SALES NO. DESCRIPTION
1 B-PT Stream Regulator Outlet
3
2 001048-45 Nozzle Tip Washer
3 133X Swivel Gooseneck
4 009538-45 Swivel Washer
2
5 011429-45 Swivel Sleeves (2)
6 001074-45 O-Ring
1
7 005959-40 Eterna Cartridge, LTC
8 001638-45 Lever Handle
4
9 001660-45 Blue Index-CW
10 000922-45 Lever Handle Screw
11 000965-45 Lock Nut
5
12 002290-45 Lock Washer
13 005960-40 Eterna Cartridge, RTC
14
16
6
7 8 9 10
13
14 001661-45 Red Index-HW
15 002713-40
16 002714-40
Eterna Cartridge, LTC w/ Handle,
Index & Screw
Eterna Cartridge, RTC w/ Handle,
Index & Screw
17 012534-45 18" Flexible Supply Hose (2)
12
11
15
17
Product Specifications:
Single Hole Deck Mount Mixing Faucet, Eterna Cartridges, Lever
Handles, Swivel Gooseneck w/ Stream Regulator Outlet, 18" Flexible
Stainless Steel Supply Hoses w/ 1/2" NPSM Male Inlets
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
JRM
Checked:
DHL
Approved:Drawn:
Date:
06/05/15 Scale:
NTS
of
2
2Sheet:JHB
