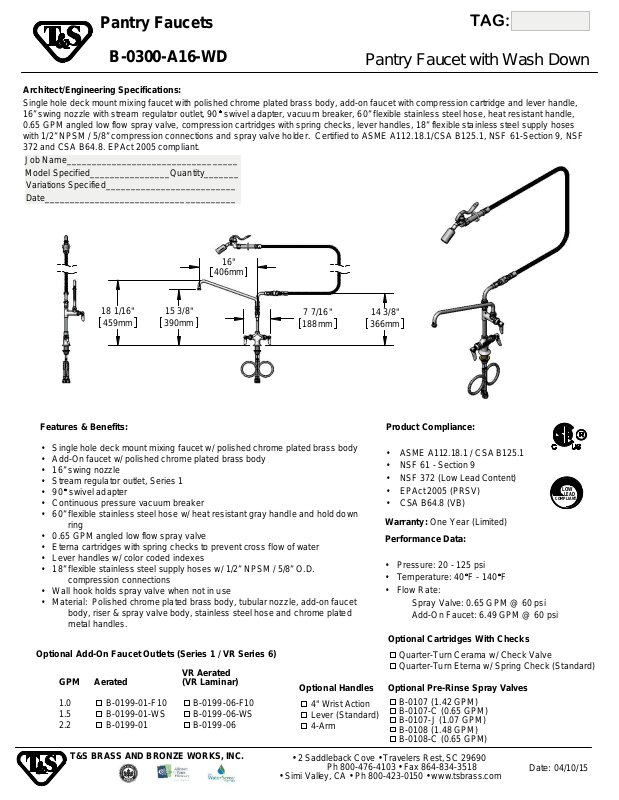

Page 1
Pantry Faucets
TAG:
B-0300-A16-WD
Architect/Engineering Specifications:
Single hole deck mount mixing faucet with polished chrome plated brass body, add-on faucet with compression cartridge and lever handle,
16” swing nozzle with stream regulator outlet, 90
0.65 GPM angled low flow spray valve, compression cartridges with spring checks, lever handles, 18” flexible stainless steel supply hoses
with 1/2” NPSM / 5/8” compression connections and spray valve holder. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF
372 and CSA B64.8. EPAct 2005 compliant.
Job Name__________________________________
Model Specified________________Quantity_______
Variations Specified__________________________
Date______________________________________
18 1/16"
459mm
15 3/8"
390mm
swivel adapter, vacuum breaker, 60” flexible stainless steel hose, heat resistant handle,
16"
406mm
7 7/16"
188mm
Pantry Faucet with Wash Down
14 3/8"
366mm
Features & Benefits:
Single hole deck mount mixing faucet w/ polished chrome plated brass body•
Add-On faucet w/ polished chrome plated brass body•
16” swing nozzle•
Stream regulator outlet, Series 1•
swivel adapter•
90
Continuous pressure vacuum breaker•
60” flexible stainless steel hose w/ heat resistant gray handle and hold down •
ring
0.65 GPM angled low flow spray valve •
•
Eterna cartridges with spring checks to prevent cross flow of water
Lever handles w/ color coded indexes•
18” flexible stainless steel supply hoses w/ 1/2” NPSM / 5/8” O.D.
•
compression connections
Wall hook holds spray valve when not in use•
•
Material: Polished chrome plated brass body, tubular nozzle, add-on faucet
body, riser & spray valve body, stainless steel hose and chrome plated
metal handles.
Optional Add-On Faucet Outlets (Series 1 / VR Series 6)
Aerated
1.0
1.5
2.2
B-0199-01-F10
B-0199-01-WS
B-0199-01
T&S BRASS AND BRONZE WO RKS, INC.
VR Aerated
(VR Laminar)GPM
B-0199-06-F10
B-0199-06-WS
B-0199-06
Optional Handles
4" Wrist Action
Lever (Standard)
4-Arm
2 Saddleback Cove
•
Simi Valley, CA
•
Product Compliance:
ASM E A112.18.1 / CSA B125.1
•
• NSF 61 - Section 9
• NSF 372 (Low Lead Content)
• EPAct 2005 (PRSV)
CSA B64.8 (VB)
•
Warranty:
Performance Data:
Pressure: 20 - 125 psi •
Temperature: 40
Flow Rate: •
Spray Valve: 0.65 GPM @ 60 psi
Add-On Faucet: 6.49 GPM @ 60 psi
Optional Cartridges With Checks
Quarter-Turn Cerama w/ Check Valve
Quarter-Turn Eterna w/ Spring Check (Standard)
Optional Pre-Rinse Spray Valves
B-0107 (1.42 GPM)
B-0107-C (0.65 GPM)
B-0107-J (1.07 GPM)
B-0108 (1.48 GPM)
B-0108-C (0.65 GPM)
Travelers Rest, SC 29690
•
Ph 800-423-0150
•
Fax 864-834-3518• Ph 800-476-4103
One Year (Limited)
F - 140 F•
www.tsbrass.com
•
Date:
LOW
LEAD
COMPLIANT
04/10/15
