T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0290-LN
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
1/8"
3mm
Maximum
Thickness
10 5/8"
270mm
Swivel Outlet Accepts
Standard T&S Big-Flo
Swing Nozzles.
Converts to Rigid w/
016807-45 Lock Washer
(Included)
Big-Flo Cartridges &
4-Arm Handles w/
Color Coded Indexes
4 1/8"
105mm
8"
203mm
Adjustable from
2" [51mm] Flanges w/
3/4" NPT Female Inlets
7 3/4" to 8 1/4"
[197mm to 210mm]
3/4" NPT Street Elbows
Rough-In Requirement:
1 1/4" [32mm] Mounting Holes
(2)
Product Specifications:
8" Wall Mount Big-Flo Mixing Faucet Less Nozzle, Big-Flo Cartridges,
4-Arm Handles & 3/4" NPT Elbow Inlets
2 1/2"
64mm
2"
51mm
Fits Within
2" [51mm]
Space
Mounting
Surface
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Drawn:
DMH
Checked:
Approved: 2
JHB
Date:
06/15/18JRM
Scale:
1:4
Sheet: 1
of
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0290-LN
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com

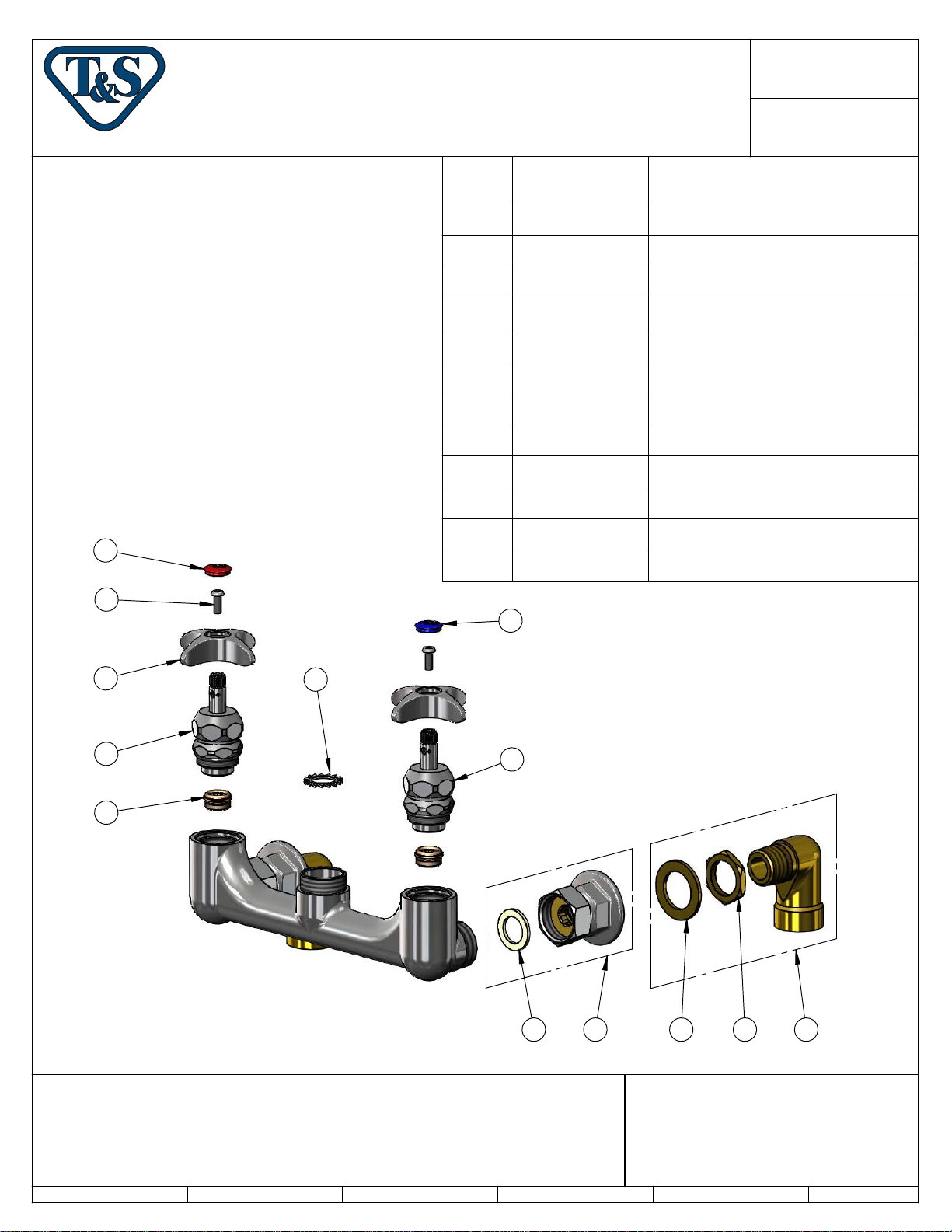

ITEM
NO.
SALES NO. DESCRIPTION
1 000764-20 Seat, Big-Flo
2 006482-40NS Big-Flo Cartridge, RTC
3 002521-45NS 4-Arm Handle (New Style)
4 000925-45 Lab Handle Screw
5 001193-19NS Red Button Index, Press-in
6 018506-19NS Blue Button Index, Press-in
7 00LL 3/4" Short Elbow Inlet
8 000971-45 Lock Nut, 3/4" NPSM
9 001005-45 Washer
10 00BB 3/4" NPT Female Eccentric Flange
11 001019-45 Coupling Nut Washer
5
12 016807-45 Serrated Lock Washer
4
6
3
2
12
2
1
10
9
811
7
Product Specifications:
8" Wall Mount Big-Flo Mixing Faucet Less Nozzle, Big-Flo Cartridges,
4-Arm Handles & 3/4" NPT Elbow Inlets
DMH
Checked: Date:
JRM
Approved:Drawn:
06/15/18
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Scale:
NTS
of
2
2Sheet:JHB
