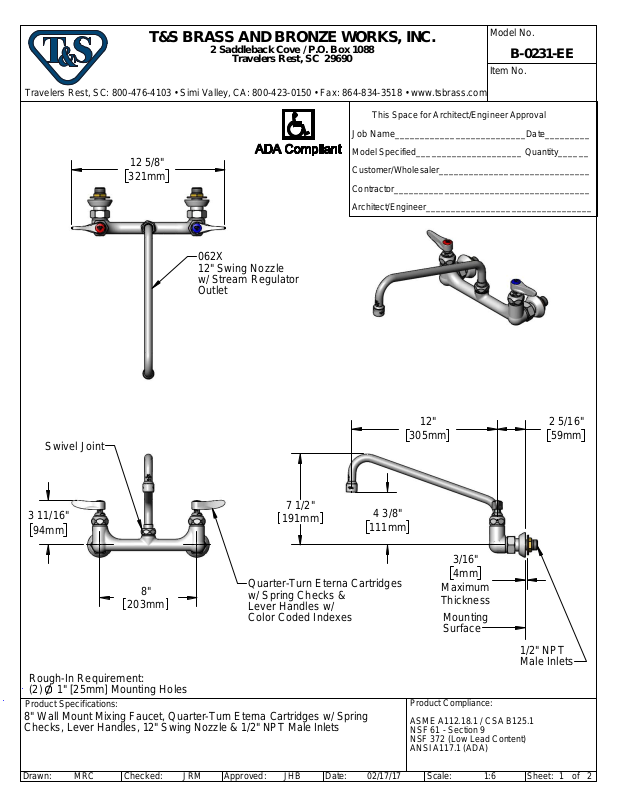

Page 1
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0231-EE
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
12 5/8"
321mm
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
062X
12" Swing Nozzle
w/ Stream Regulator
Outlet
Swivel Joint
3 11/16"
7 1/2"
191mm
4 3/8"
94mm
8"
203mm
Quarter-Turn Eterna Cartridges
w/ Spring Checks &
Lever Handles w/
Color Coded Indexes
Rough-In Requirement:
(2) 1" [25mm] Mounting Holes
Product Specifications:
8" Wall Mount Mix ing Faucet, Quarter-Turn Eterna Cartridges w/ Spring
Checks, Lever Handles, 12" Swing Nozzle & 1/2" NPT Male Inlets
111mm
12"
305mm
3/16"
4mm
Maximum
Thickness
Mounting
Surface
1/2" NPT
Male Inlets
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
2 5/16"
59mm
Drawn: Approved:
MRC
Checked:
JHB
Date: 1:6
02/17/17JRM
Scale:
of
2
1Sheet:
Page 2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
B-0231-EE
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
2
1
17
ITEM
NO.
1 B-PT Stream Regulator Outlet
2 062X 12" Swing Nozzle
3 009538-45 Swivel Washer
4 011429-45 Swivel Sleeves (2)
5 001074-45 O-Ring
6 018506-19NS Blue Button Index, Press-in
7 000925-45 Lab Handle Screw
8 002711-40NS
9 012442-40NS
10 001019-45 Coupling Nut Washer
11 00EE
12 000999-45 Brass Lock Washer
13 002954-45 Shank Lock Nut
3
4
5
14 002712-40NS
15 012443-40NS
16 001638-45NS Lever Handle (New Style)
17 001193-19NS Red Button Index, Press-in
18 014200-45 Star Washer, Anti-Rotation
SALES NO. DESCRIPTION
Quarter-Turn Eterna Cartridge
w/ Spring Check, Handle, Blue
Index & Screw, LTC
Quarter-Turn Eterna Cartridge
w/ Spring Check, LTC
1/2" NPT Male Inlet w/
Adjustable Flange
Quarter-Turn Eterna Cartridge
w/ Spring Check, Handle, Red
Index & Screw, RTC
Quarter-Turn Eterna Cartridge
w/ Spring Check, RTC
16
6
15
14
Product Specifications:
18
7
8
9
8" Wall Mount Mixing Faucet, Quarter-Turn Eterna Cartridges w/
Spring Checks, Lever Handles, 12" Swing Nozzle & 1/2" NPT Male
Inlets
13
12
11
10
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
MRC
Checked:
JRM
Approved:Drawn:
Date:
02/17/17 Scale:
NTS
of
2
2Sheet:JHB
