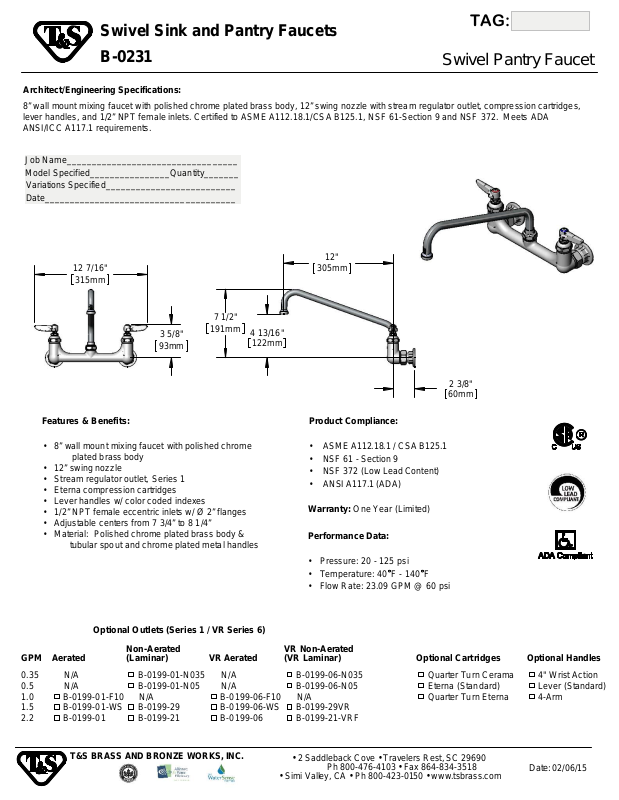

Swivel Sink and Pantry Faucets
TAG:
B-0231
Architect/Engineering Specifications:
8” wall mount mixing faucet with polished chrome plated brass body, 12” swing nozzle with stream regulator outlet, compression cartridges,
lever handles, and 1/2” NPT female inlets. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA
ANSI/ICC A117.1 requirements.
Job Name__________________________________
Model Specified________________Quantity_______
Variations Specified__________________________
Date______________________________________
12"
12 7/16"
315mm
4 13/16"
122mm
3 5/8"
93mm
7 1/2"
191mm
305mm
Swivel Pantry Faucet
Features & Benefits:
8” wall mount mixing faucet with polished chrome •
plated brass body
12” swing nozzle•
•
Stream regulator outlet, Series 1
•
Eterna compression cartridges
•
Lever handles w/ color coded indexes
1/2” NPT female eccentric inlets w/ Ø 2” flanges
•
Adjustable centers from 7 3/4” to 8 1/4”
•
Material: Polished chrome plated brass body &
•
tubular spout and chrome plated metal handles
GPM
N/A
0.35
0.5
N/A
1.0
1.5
2.2
B-0199-01-F10
B-0199-01-WS B-0199-29
B-0199-01
Optional Outlets (Series 1 / VR Series 6)
Non-Aerated
(Laminar)Aerated
B-0199-01-N035
B-0199-01-N05
N/A
B-0199-21
VR Aerated
N/A
N/A
B-0199-06-F10
B-0199-06-WS
B-0199-06
Product Compliance:
• ASME A112.18.1 / CSA B125.1
• NSF 61 - Section 9
•
NSF 372 (Low Lead Content)
•
ANSI A117.1 (ADA)
Warranty:
Performance Data:
Pressure: 20 - 125 psi •
Temperature: 40
• Flow Rate: 23.09 GPM @ 60 psi
VR Non-Aerated
(VR Laminar)
B-0199-06-N035
B-0199-06-N05
N/A
B-0199-29VR
B-0199-21-VRF
One Year (Limited)
F - 140 F•
2 3/8"
60mm
Optional Cartridges
Quarter Turn Cerama
Eterna (Standard)
Quarter Turn Eterna
Optional Handles
4" Wrist Action
Lever (Standard)
4-Arm
T&S BRASS AND BRONZE WO RKS, INC.
• 2 Saddleback Cove
Simi Valley, CA
•
Travelers Rest, SC 29690
•
• Ph 800-476-4103
Ph 800-423-0150
•
Fax 864-834-3518
www.tsbrass.com
•
Date:
02/06/15
