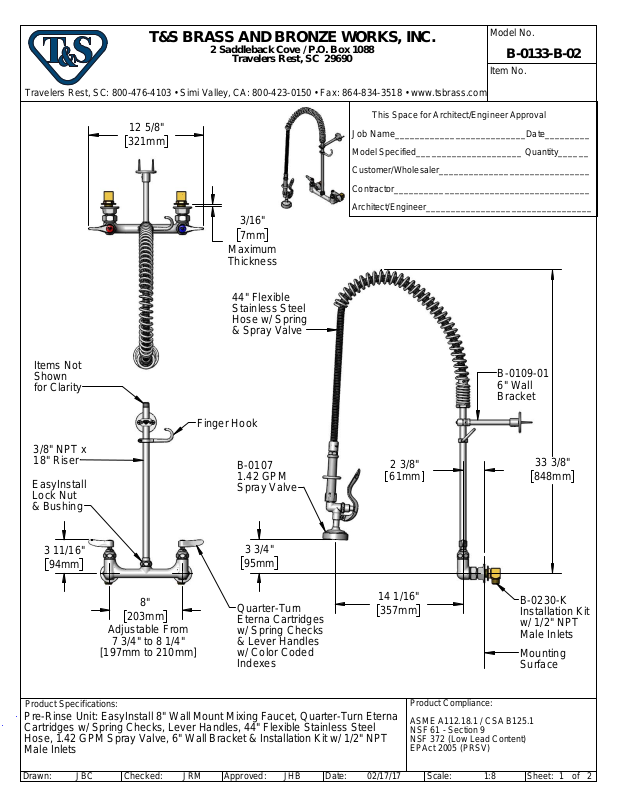

T&S Brass B-0133-B-02 Specifications

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com

This Space for Architect/Engineer Approval

12 5/8"

321mm

Job Name

Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________

__________________________Date_________

3/16"
7mm

Maximum

Thickness

44" Flexible
Stainless Steel
Hose w/ Spring
& Spray Valve

Model No.

B-0133-B-02

Item No.

Items Not
Shown
for Clarity

3/8" NPT x
18" Riser

EasyInstall
Lock Nut
& Bushing

3 11/16"

94mm

8"

203mm

Adjustable From

7 3/4" to 8 1/4"

[197mm to 210mm]

Finger Hook

B-0107

1.42 GPM
Spray Valve

3 3/4"

95mm

Quarter-Turn
Eterna Cartridges
w/ Spring Checks
& Lever Handles
w/ Color Coded
Indexes

2 3/8"

61mm

14 1/16"

357mm

B-0109-01
6" Wall
Bracket

33 3/8"

848mm

B-0230-K
Installation Kit
w/ 1/2" NPT
Male Inlets

Mounting
Surface

Product Specifications:

Pre-Rinse Unit: EasyInstall 8" Wall Mount Mixing Faucet, Quarter-Turn Eterna
Cartridges w/ Spring Checks, Lever Handles, 44" Flexible Stainless Steel
Hose, 1.42 GPM Spray Valve, 6" Wall Bracket & Installation Kit w/ 1/2" NPT
Male Inlets

Drawn:

JBC

Checked:

Approved:

JHB

Date:

02/17/17JRM

Product Compliance:
ASM E A112.18.1 / CSA B125.1

NSF 61 - Section 9
NSF 372 (Low Lead Content)
EPAct 2005 (PRSV)

Scale:

1:8

of

2

1Sheet:

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com

ITEM NO. SALES NO. DESCRIPTION

1 B-0107 1.42 GPM Spray Valve
2 010476-45 #27 Washer

3 000907-45 Spray Valve Hold Down Ring
4 002987-40 Grip Handle

5 001014-45 Washer, B-0100 Hose Barrel
6 B-0044-H2A

7

7 000888-45 EasyInstall Overhead Spring
8 000821-40 Spring Body

6

2
8

9 B-0109-01 6" Wall Bracket

10 004R Finger Hook
11 000369-40 3/8" NPT x 18" Riser

12 EZ-K

9

5

10

13 001065-45 O-Ring
14 014200-45 Star Washer, Anti-Rotation

15 018506-19NS Blue Button Index, Press-in
16 000925-45 Lab Handle Screw

4

17 002711-40NS

18 012442-40NS

3
2

11

19 002954-45 Shank Lock Nut
20 000999-45 Brass Lock Washer
21 B-0230-K Short Elbow Installation Kit

1

12
13

22 00AA
23 001019-45 Coupling Nut Washer

14

27

15
26 16
25

24

17

18

24 002712-40NS

25 012443-40NS
26 001638-45NS Lever Handle (New Style)

27 001193-19NS Red Button Index, Press-in

44" Flexible Stainless Steel
Hose, Less Handle

EasyInstall Kit: Nut, Bushing, O­Ring & Lock Washer

Quarter-Turn Eterna Cartridge,
LTC w/ Spring Check, Handle,
Index & Screw
Quarter-Turn Eterna Cartridge,
LTC w/ Spring Check

1/2" NPT Female Eccentric
Flange

Quarter-Turn Eterna Cartridge,
RTC w/ Spring Check, Handle,
Index & Screw
Quarter-Turn Eterna Cartridge,
RTC w/ Spring Check

Model No.

B-0133-B-02

Item No.

19

20

21

22

23

Product Specifications:

Pre-Rinse Unit: EasyInstall 8" Wall Mount Mixing Faucet, Quarter-Turn Eterna
Cartridges w/ Spring Checks, Lever Handles, 44" Flexible Stainless Steel
Hose, 1.42 GPM Spray Valve, 6" Wall Bracket & Installation Kit w/ 1/2" NPT

Male Inlets

JBC

Checked:

JRM 02/17/17 Scale:

Approved:Drawn:

Date:

Product Compliance:
ASM E A112.18.1 / CSA B125.1

NSF 61 - Section 9
NSF 372 (Low Lead Content)
EPAct 2005 (PRSV)

NTS

of

22Sheet:JHB
