T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
Model No.
B-0123-B08C
Item No.
12 7/16"
315mm
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________

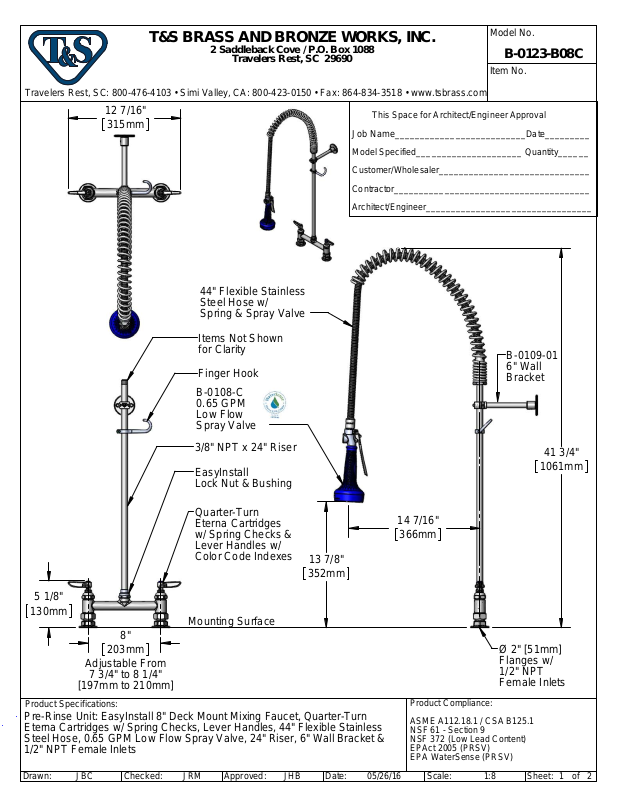

44" Flexible Stainless
Steel Hose w/
Spring & Spray Valve
Items Not Shown
for Clarity
Finger Hook
B-0109-01
6" Wall
Bracket
B-0108-C
0.65 GPM
Low Flow
Spray Valve
3/8" NPT x 24" Riser
EasyInstall
Lock Nut & Bushing
Quarter-Turn
Eterna Cartridges
w/ Spring Checks &
Lever Handles w/
Color Code Indexes
13 7/8"
352mm
5 1/8"
130mm
Mounting Surface
8"
203mm
Adjustable From
7 3/4" to 8 1/4"
[197mm to 210mm]
Product Specifications:
Pre-Rinse Unit: EasyInstall 8" Deck Mount Mixing Faucet, Quarter- Turn
Eterna Cartridges w/ Spring Checks, Lever Handles, 44" Flexible Stainless
Steel Hose, 0.65 GPM Low Flow Spray Valve, 24" Riser, 6" Wall Bracket &
1/2" NPT Female Inlets
14 7/16"
366mm
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
EPAct 2005 (PRSV)
EPA WaterSense (PRSV)
41 3/4"
1061mm
Ø 2" [51mm]
Flanges w/
1/2" NPT
Female Inlets
Drawn: Approved:
JBC
Checked:
JRM
JHB
Date: 1:8
05/26/16
Scale:
of
1Sheet:
2
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
ITEM
4
5
3
6
7
8
9
2
1
22
21
10
20
11
12
SALES NO. DESCRIPTION
NO.
1 B-0108-C 0.65 GPM Low Flow Spray Valve
2 001014-45 Washer, B-0100 Hose Barrel
3 B-0044-H2A
44" Flexible Stainless Steel Hose,
Less Handle
4 000888-45 EasyInstall Overhead Spring
5 010476-45 #27 Washer
6 000821-40 Spring Body
7 B-0109-01 6" Wall Bracket Body
8 004R Finger Hook
9 000372-40 3/8" NPT x 24" Riser
Quarter-Turn Eterna Cartridge, LTC
10 002711-40
w/ Spring Check, Handle, Index &
Screw
11 000922-45 Lever Handle Screw
12 001660-45 Blue Index-CW
13 001638-45 Lever Handle
14 012442-40
Quarter-Turn Eterna Cartridge, LTC
w/ Spring Check
15 001065-45 O-Ring
16 014200-45 Star Washer, Anti-Rotation
17 001019-45 Coupling Nut Washer
18 00AA 1/2" NPT Female Eccentric Flange
19 EZ-K
20 012443-40
EasyInstall Kit: Nut, Bushing, O-ring,
Lock Washer
Quarter-Turn Eterna Cartridge, RTC
w/ Spring Check
20 001661-45 Red Index-HW
Quarter-Turn Eterna Cartridge, RTC
22 002712-40
w/ Spring Check, Handle, Index &
Screw
Model No.
B-0123-B08C
Item No.
19
13
14
15
16
17
18
Product Specifications:
Pre-Rinse Unit: EasyInstall 8" Deck Mount Mixing Faucet, Quarter- Turn
Eterna Cartridges w/ Spring Checks, Lever Handles, 44" Flexible Stainless
Steel Hose, 0.65 GPM Low Flow Spray Valve, 24" Riser, 6" Wall Bracket &
1/2" NPT Female Inlets
Drawn:
JBC
Checked:
JRM 05/26/16 Scale:
Approved: NTS
Date:
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
EPAct 2005 (PRSV)
EPA WaterSense (PRSV)
of
2
Sheet:JHB
2
