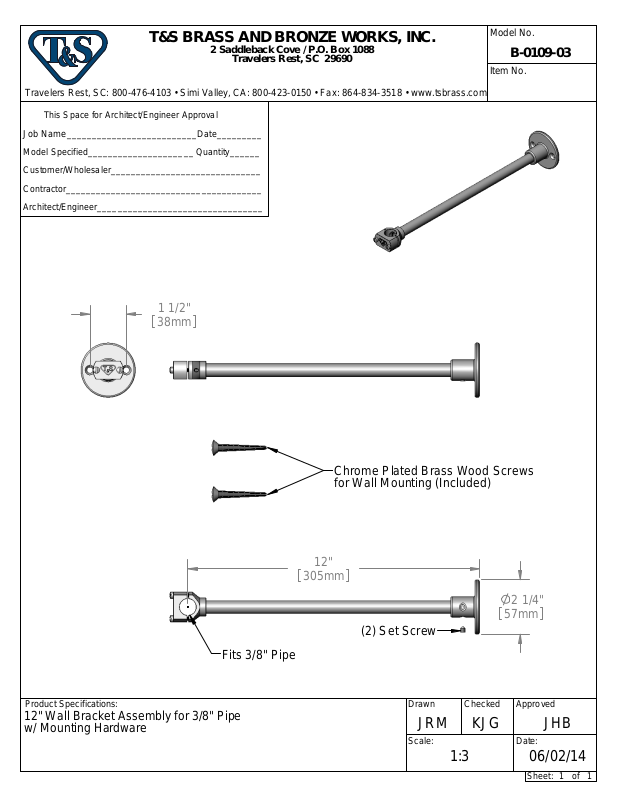

T&S Brass B-0109-03 Specifications

T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
B-0109-03
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______ Customer/Wholesaler______________________________ Contractor_______________________________________ Architect/Engineer_________________________________
1 1/2"
38mm
Fits 3/8" Pipe
Product Specifications:
12" Wall Bracket Assembly for 3/8" Pipe w/ Mounting Hardware
Chrome Plated Brass Wood Screws for Wall Mounting (Included)
12"
305mm
(2) Set Screw
Drawn
JRM
Scale:
1:3
Checked
KJG
2 1/4"
57mm
Approved
JHB
Date:
06/02/14
Sheet:
of
1
1
