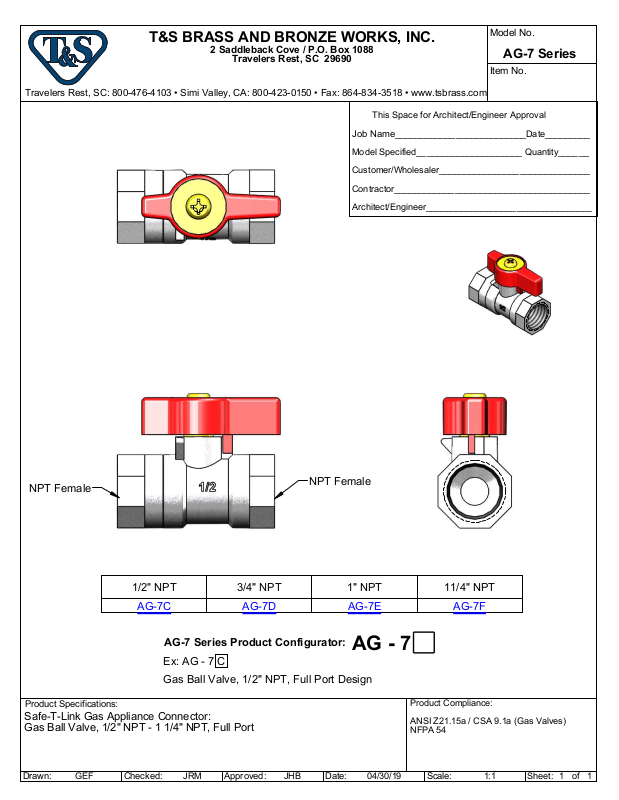

T&S Brass AG-7E Parts List
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Model No.
AG-7 Series
Item No.
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
NPT Female
1/2" NPT 3/4" NPT 1" NPT 11/4" NPT
AG-7C AG-7D AG-7E AG-7F
AG-7 Series Product Configurator:
Ex: AG - 7 C
Gas Ball Valve, 1/2" NPT, Full Port Design
Product Specifications:
Safe-T-Link Gas Appliance Connector:
Gas Ball Valve, 1/2" NPT - 1 1/4" NPT, Full Port
NPT Female
AG - 7
Product Compliance:
ANSI Z21.15a / CSA 9.1a (Gas Valves)
NFPA 54
Drawn: Approved:
GEF
Checked:
JHB
Date:
04/30/19JRM
Scale:
1:1
of
1
1Sheet:
