This Space for Architect/Engineer Approval
7 3/4"
197mm
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
Items Not Shown
For Clarity
equip 44" Flexible
Stainless Steel
Hose w/ Spring
& Spray Valve
3/8" NPT x 18"
013716-40
6" Wall
Bracket
Riser
Rough-In Requirement:
(2)
1" [25mm] Mounting Holes
Model Number
5PR-4DLS00
Product Compliance:
Finger Hook
Ceramic Cartridges
& equip Lever
Handles w/ Color
Coded Screws
Mounting
Surface
4"
102mm
Adjustable from
3 3/4" to 4 1/4"
[95mm to 108mm]
5SV
1.15 GPM
Spray Valve
34 1/16"
866mm
3 1/4"
83mm
16 1/2"
419mm
Ø 2" [51mm]
Flanges w/
In-Line Check
Valves & 1/2" NPT
Female Inlets
B-0425-M
1/2" NPT Supply
Nipple Kit
(Included)
Product Specifications:
Pre-Rinse Unit: 4" Deck Mount Mixing Faucet, Ceramic Cartridges,
Lever Handles, 44" Flexible Stainless Steel Hose, 1.15 GPM Spray Valve,
In-Line Check Valves, 6" Wall Bracket & 1/2" NPT Supply Nipple Kit
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
2019 DOE PRSV - Class II
Drawn:
equip
Foodservice
Accessories
Approved:AMG
2 Saddleback Cove, P.O. Box 1088
Travelers Rest, South Carolina 29690
Phone: 800.891.4808 Fax: 800.868.0084
by
JHB 1:8 2
JHB
10/15/18
Scale:10/15/18JRM Date:Checked:
equip.tsbrass.com
of
1Sheet:

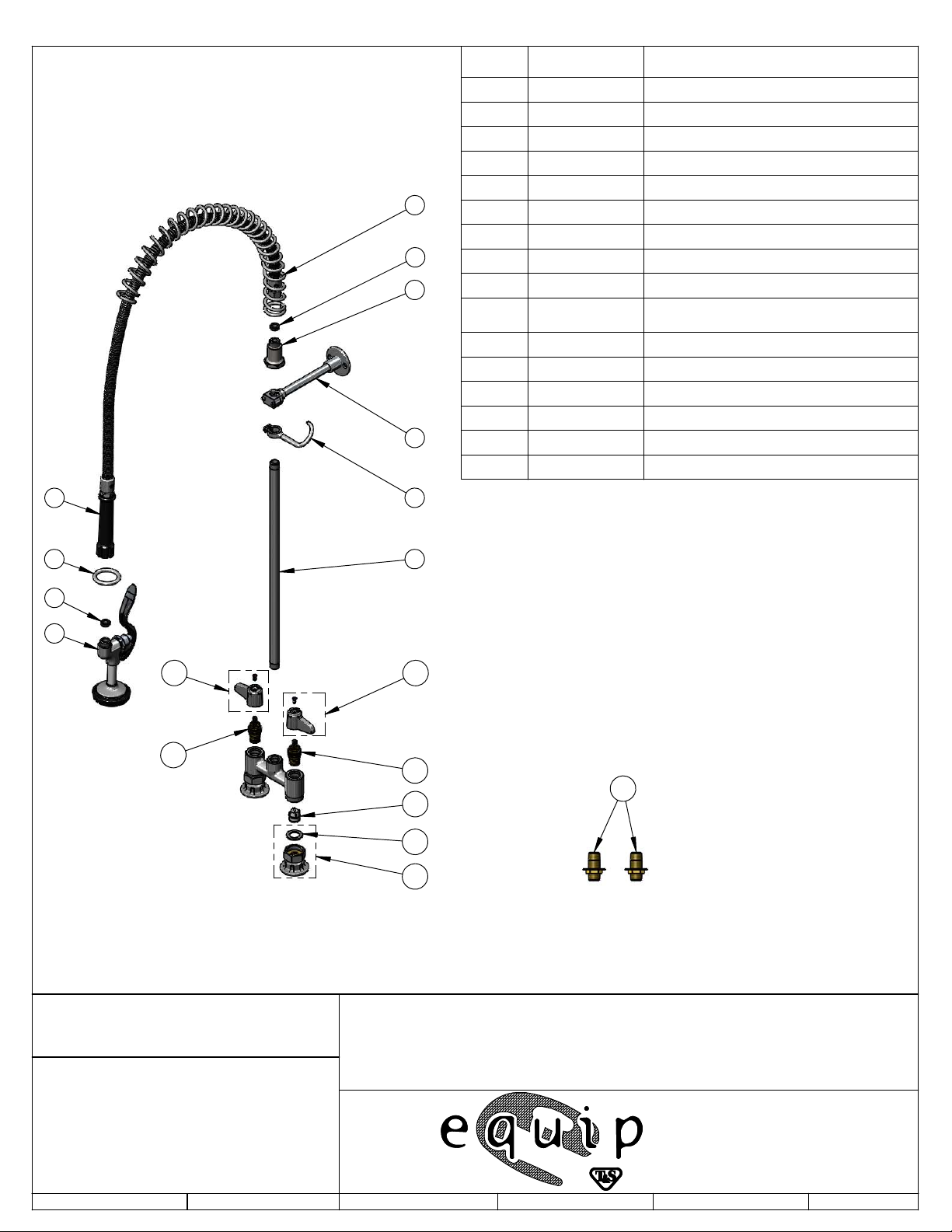

ITEM
NO.
SALES NO. DESCRIPTION
1 5SV equip 1.15 GPM Spray Valve
2 010476-45 #27 Washer
3 000907-45 Spray Valve Hold Down Ring
4 5HSE44 44" Flexible Stainless Steel Hose
5 014068-45 Overhead Spring
5
6 000821-40 Spring Body
7 013716-40 6" Wall Bracket
2
6
8 004R Finger Hook
9 000369-40 3/8" NPT x 18" Riser
10 5-HDL-L
equip Lever Handle w/ Color
Coded Screws
11 013788-45 equip Ceramic Cartridge, LTC
12 013840-45 20mm Check Valve (2)
13 001019-45 Coupling Nut Washer
14 00AA 1/2" NPT Female Eccentric Flange
7
15 013787-45 Equip Ceramic Cartridge, RTC
16 B-0425-M 1/2" NPT Supply Nipple Kit (2)
4
3 9
2
1
10
10
15
11
12
13
14
8
16
Model Number
5PR-4DLS00
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
2019 DOE PRSV - Class II
Drawn:
AMG
Checked: Date:
Product Specifications:
Pre-Rinse Unit: 4" Deck Mount Mixing Faucet, Ceramic Cartridges,
Lever Handles, 44" Flexible Stainless Steel Hose, 1.15 GPM Spray Valve,
In-Line Check Valves, 6" Wall Bracket & 1/2" NPT Supply Nipple Kit
equip
Foodservice
Accessories
JRM 10/15/18 Scale:
Approved:
JHB
by
10/15/18
2 Saddleback Cove, P.O. Box 1088
Travelers Rest, South Carolina 29690
Phone: 800.891.4808 Fax: 800.868.0084
equip.tsbrass.com
NTS 2
of
2Sheet:JHB
