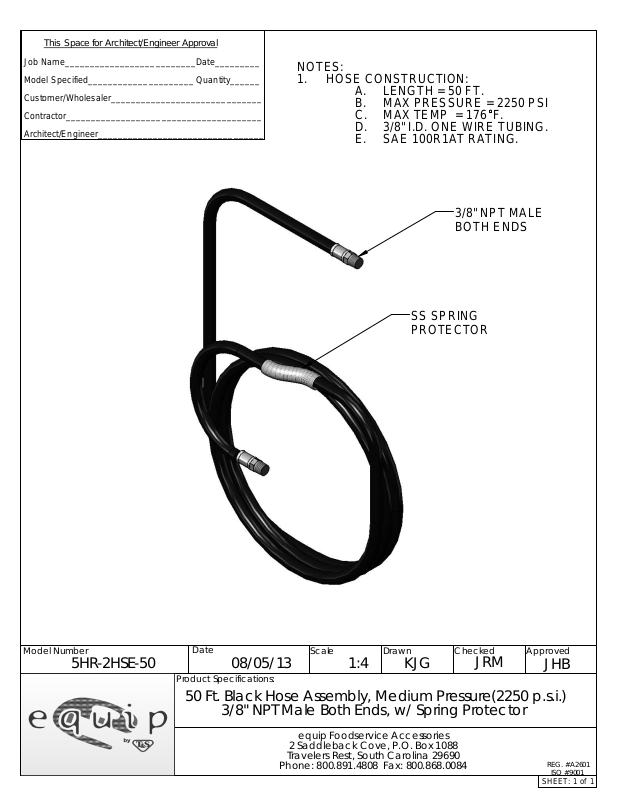

T&S Brass 5HR-2HSE-50 User Manual

This Space for Architect/Engineer Approval

Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________

NOTES:

HOSE CONSTRUCTION:1.

LENGTH = 50 FT.A.
MAX PRESSURE = 2250 PSIB.
MAX TEMP = 176
3/8" I.D. ONE WIRE TUBING.D.
SAE 100R1AT RATING.E.

3/8" NPT MALE
BOTH ENDS

SS SPRING
PROTECTOR

F.C.

Model Number

5HR-2HSE-50

Date

08/05/13

Product Specifications:

Scale

1:4

Drawn

KJG

Checked

JRM

Approved

JHB

50 Ft. Black Hose Assembly, Medium Pressure(2250 p.s.i.)

3/8" NPT Male Both Ends, w/ Spring Protector

equip Foodservice Accessories

2 Saddleback Cove, P.O. Box 1088

Travelers Rest, South Carolina 29690

Phone: [phone] Fax: [phone]

REG. #A2601

SHEET:

ISO #9001

1

1

of
