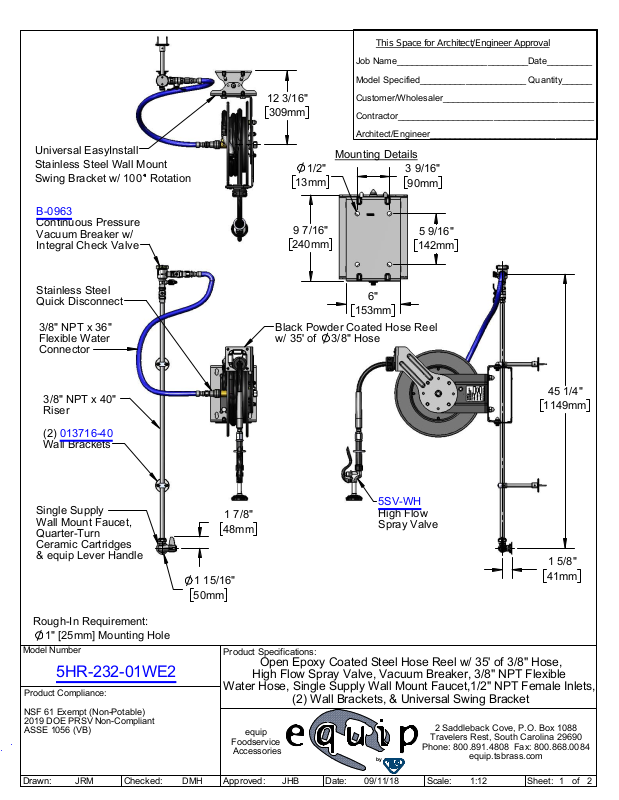

This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Universal EasyInstall
Stainless Steel Wall Mount
Swing Bracket w/ 100
Rotation
B-0963
Continuous Pressure
Vacuum Breaker w/
Integral Check Valve
Stainless Steel
Quick Disconnect
3/8" NPT x 36"
Flexible Water
Connector
12 3/16"
309mm
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
Mounting Details
1/2"
13mm
9 7/16"
240mm
6"
153mm
Black Powder Coated Hose Reel
w/ 35' of
3/8" Hose
3 9/16"
90mm
5 9/16"
142mm
3/8" NPT x 40"
Riser
(2) 013716-40
Wall Brackets
Single Supply
Wall Mount Faucet,
Quarter-Turn
Ceramic Cartridges
& equip Lever Handle
Rough-In Requirement:
1" [25mm] Mounting Hole
Model Number
5HR-232-01WE2
Product Compliance:
NSF 61 Exempt (Non-Potable)
2019 DOE PRSV Non-Compliant
ASSE 1056 (VB)
5SV-WH
1 7/8"
48mm
High Flow
Spray Valve
1 15/16"
50mm
Product Specifications:
Open Epoxy Coated Steel Hose Reel w/ 35' of 3/8" Hose,
High Flow Spray Valve, Vacuum Breaker, 3/8" NPT Flexible
Water Hose, Single Supply Wall Mount Faucet,1/2" NPT Female Inlets,
(2) Wall Brackets, & Universal Swing Bracket
equip
Foodservice
Accessories
by
2 Saddleback Cove, P.O. Box 1088
Travelers Rest, South Carolina 29690
Phone: 800.891.4808 Fax: 800.868.0084
equip.tsbrass.com
45 1/4"
1149mm
1 5/8"
41mm
Drawn:
Approved:JRM
JHB
09/11/18
Scale:DMH Date:Checked:
1:12 2
Sheet: 1
of
ITEM
NO.
1
SALES NO. DESCRIPTION
013716-40
6" Wall Bracket
8
7
96
3 001065-45 O-Ring
EU EasyInstall Kit: Nut,
2 014200-45 Star Washer, Anti-Rotation
11
10
4EU-EZ-K
Bushing, O-Ring &
Lock Washer
6
1
5
12
13 14
5 002558-40 3/8" NPT x 40" Riser
6 001359-40
7 B-0963
8 015073-40
9HW-2B-36
10 G019430-45
11 019191-45K
Hex Bushing, 1/2" NPT Male x
3/8" NPT Female
Continuous Pressure VB w/
Integral Check Valve
Check Valve w/ 1/2" NPT
Adapter
3/8" NPT x 36" Flexible Water
Hose
Universal EasyInstall Stainless
Steel Swing Bracket
Hose Reel Bracket Mounting
Kit
12 AW-5B 3/8" NPT Quick Disconnect
4
3
6
2
15
16
1
17
18
13 002535-25 3/8" Close Nipple
14 5HR-232-01
35' of 3/8" equip Open Coated
Hose Reel
15 5HR-HDL Hose Reel Grip Handle
16 000907-45 Spray Valve Hold Down Ring
17 010476-45 #27 Washer
18 5SV-H High Flow Spray Valve
19 5SV-WH
20 5-HDL-L
21
013787-45
High Flow Spray Valve,
Handle, & Ring
equip Lever Handle w/ Color
Coded Screws
equip Ceramic Cartridge,
RTC
20
21
Model Number
5HR-232-01WE2
Product Compliance:
NSF 61 Exempt (Non-Potable)
2019 DOE PRSV Non-Compliant
ASSE 1056 (VB)
Drawn:
JRM
Checked: Date:
19
DMH
Product Specifications:
Open Epoxy Coated Steel Hose Reel w/ 35' of 3/8" Hose,
High Flow Spray Valve, Vacuum Breaker, 3/8" NPT Flexible
Water Hose, Single Supply Wall Mount Faucet,1/2" NPT Female Inlets,
(2) Wall Brackets, & Universal Swing Bracket
equip
Foodservice
Accessories
Approved:
JHB
by
09/11/18
2 Saddleback Cove, P.O. Box 1088
Travelers Rest, South Carolina 29690
Phone: 800.891.4808 Fax: 800.868.0084
Scale:
equip.tsbrass.com
NTS 2
of
2Sheet:
