T&S Brass 5F-8WWB10 PARTS LIST

This Space for Architect/Engineer Approval

Job Name__________________________Date_________ Model Specified_____________________ Quantity______

16"

406mm

Customer/Wholesaler______________________________ Contractor_______________________________________ Architect/Engineer_________________________________

5SP-10

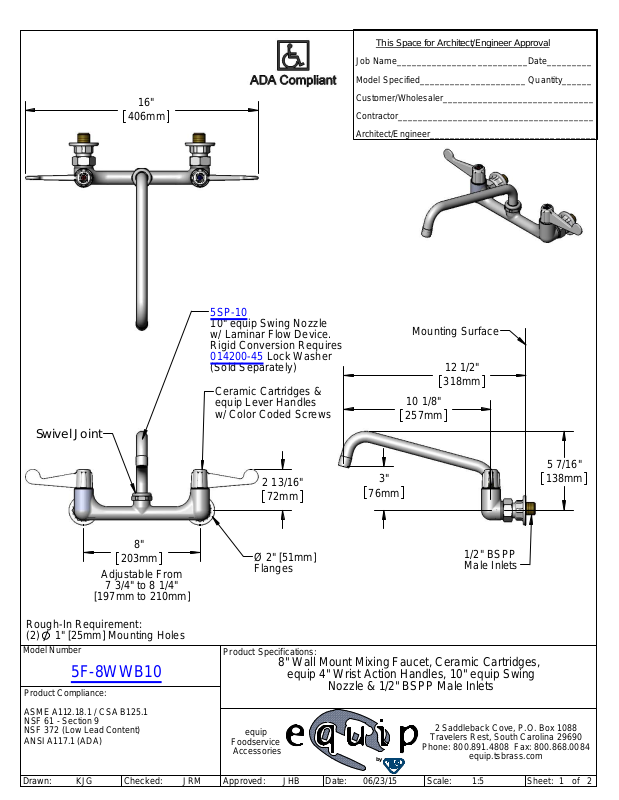

10" equip Swing Nozzle w/ Laminar Flow Device.

Mounting Surface

Rigid Conversion Requires

014200-45 Lock Washer

(Sold Separately)

12 1/2"

318mm

Ceramic Cartridges & equip Lever Handles w/ Color Coded Screws

10 1/8"

257mm

Swivel Joint

203mm

Adjustable From

7 3/4" to 8 1/4"

[197mm to 210mm]

Rough-In Requirement:

1" [25mm] Mounting Holes

(2)

Model Number

5F-8WWB10

Product Compliance: ASM E A112.18.1 / CSA B125.1

NSF 61 - Section 9 NSF 372 (Low Lead Content)

ANSI A117.1 (ADA)

2 13/16"

72mm

5 7/16"

138mm

76mm

Ø 2" [51mm] Flanges

Product Specifications:

1/2" BSPP Male Inlets

8" Wall Mount Mixing Faucet, Ceramic Cartridges,

equip 4" Wrist Action Handles, 10" equip Swing

Nozzle & 1/2" BSPP Male Inlets

equip

Foodservice

Accessories

2 Saddleback Cove, P.O. Box 1088

Travelers Rest, South Carolina 29690

Phone: 800.891.4808 Fax: 800.868.0084

equip.tsbrass.com

Drawn:

Approved:KJG

JHB

06/23/15

Scale:JRM Date:Checked:

1:5 2

Sheet: 1

ITEM

NO.

SALES NO. DESCRIPTION 1 5SP-10 10" equip Swing Nozzle 2 014250-45

Laminar Flow Device, 3/4-27 UN Female

3 013839-25 Swivel Nut 4 013848-45 equip Swivel Piece O-Ring

5 5-HDL-W

equip 4" Wrist Action Handle w/ Color Coded Screws

6 00AA 1/2" NPT Female Eccentric Flange 7 019047-45 Supply Nipple, 1/2" NPT x 1/2" BSPP 8 001019-45 Coupling Nut Washer 9 013788-45 Equip Ceramic Cartridge, LTC

10 013787-45 Equip Ceramic Cartridge, RTC

5 6
