T&S Brass 5F-8DWX08 Parts List

This Space for Architect/Engineer Approval

Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________

16"

407mm

Contractor_______________________________________
Architect/Engineer_________________________________

5SP-08
8" equip Swing Nozzle
w/ Laminar Flow Device.
Rigid Conversion Requires
014200-45 Lock Washer
(Sold Separately)

Ceramic Cartridges &

8 1/8"

207mm

equip 4" Wrist Action Handles
w/ Color Coded Screws

Model Number

8"

203mm

[197mm to 210mm]

Product Specifications:

Date

4 5/8"

117mm

7 9/16"

192mm

5 1/8"

131mm

Mounting
Surface

Ø 2" [51mm]
Flanges w/ Adjustable from
1/2" NPT7 3/4" to 8 1/4"
Female Inlets

B-0425-M
Supply Nipple Kit
(Sold Separately)

Scale

09/18/125F-8DWX08

1:5

Drawn

KJG

Checked

DHL

8" Deck Mount Mixing Faucet w/ Ceramic Cartridges,

equip 4" Wrist Action Handles, 8" equip Swing Nozzle

& 1/2" NPT Female Inlets

equip Foodservice Accessories

2 Saddleback Cove, P.O. Box 1088

Travelers Rest, South Carolina 29690

Phone: [phone] Fax: [phone]

Approved

JHB

ITEM

NO.

SALES NO. DESCRIPTION

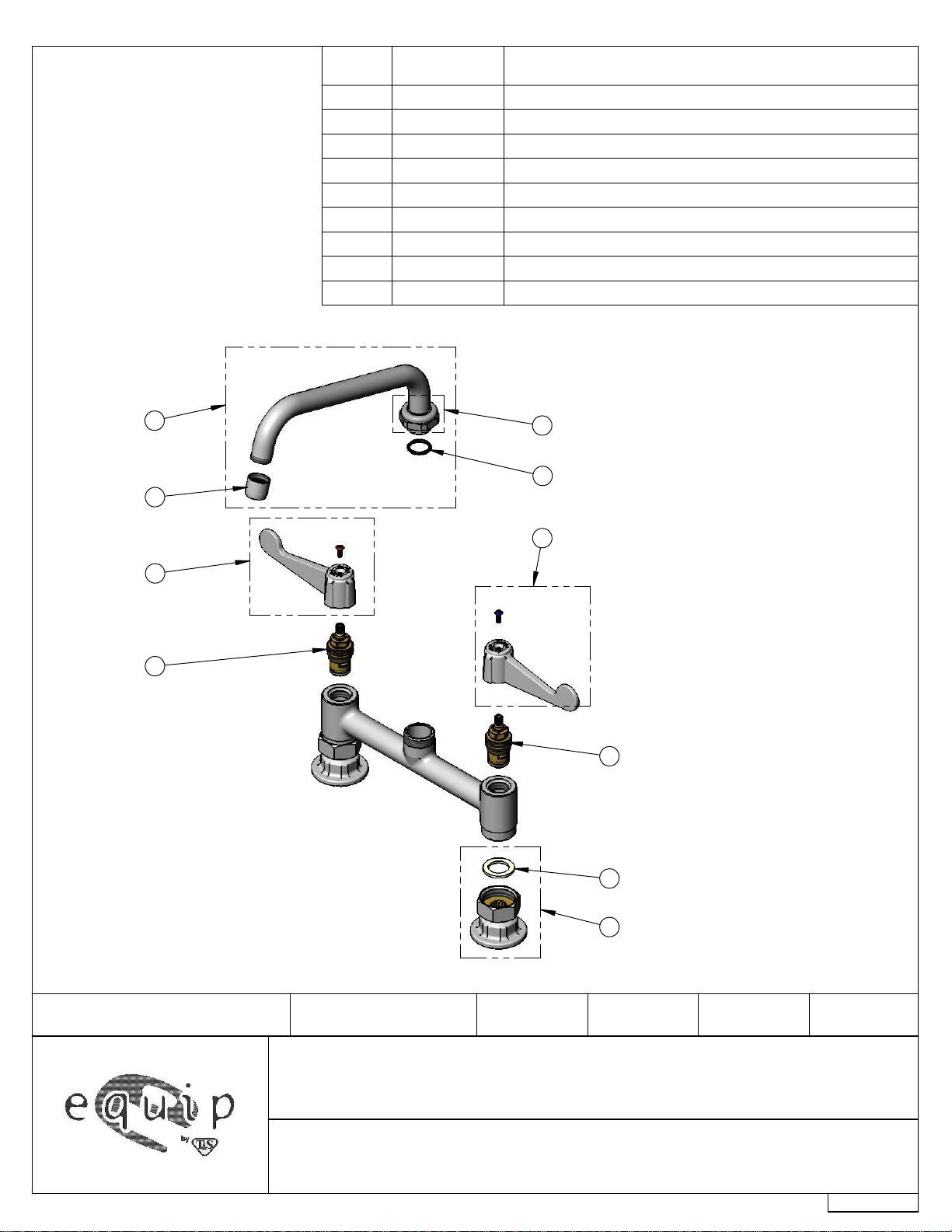

1 014250-45 Laminar Flow Device
2 5SP-08 8" equip Swing Nozzle

3 013839-25 Swivel Nut
4 013848-45 equip Swivel Piece O-Ring

5 5-HDL-W equip 4" Wrist Action Handle w/ Color Coded Screws
6 013788-45 equip Ceramic Cartridge, LTC
7 001019-45 Coupling Nut Washer
8 00AA 1/2" NPT Inlet Flange
9 013787-45 equip Ceramic Cartridge, RTC

2

3

4

1

5

5

9

6

Model Number

Date

09/18/125F-8DWX08

Product Specifications:

8" Deck Mount Mixing Faucet w/ Ceramic Cartridges,

equip 4" Wrist Action Handles, 8" equip Swing Nozzle

7

8

Scale

1:8

Drawn

KJG

Checked

& 1/2" NPT Female Inlets

equip Foodservice Accessories

2 Saddleback Cove, P.O. Box 1088

Travelers Rest, South Carolina 29690

Phone: [phone] Fax: [phone]

DHL

Approved

JHB

Sheet:

2of

2
