T&S Brass 5F-8CWX12 Parts List

16"

406mm

This Space for Architect/Engineer Approval

Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________

10 1/2"

267mm

1 7/8"

Contractor_______________________________________
Architect/Engineer_________________________________

48mm

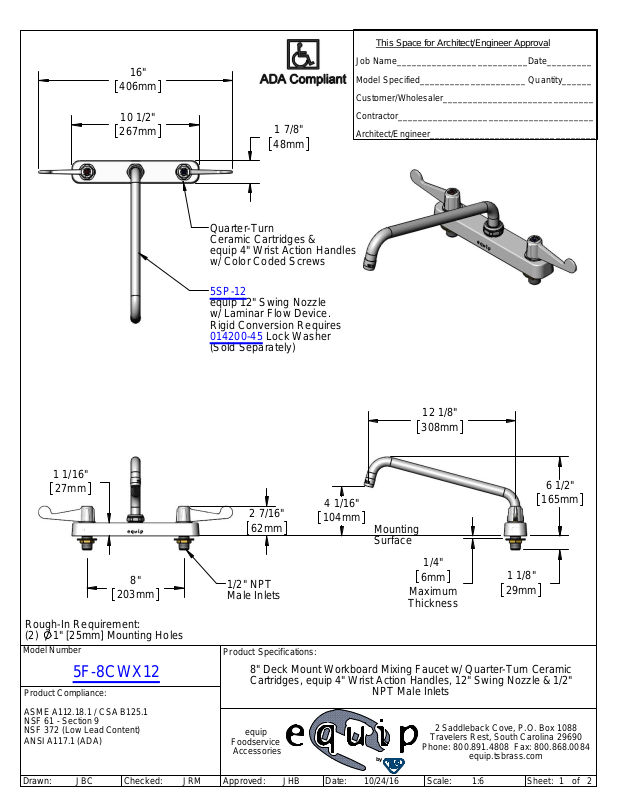

Quarter-Turn
Ceramic Cartridges &
equip 4" Wrist Action Handles
w/ Color Coded Screws

5SP-12

equip 12" Swing Nozzle
w/ Laminar Flow Device.
Rigid Conversion Requires

014200-45 Lock Washer

(Sold Separately)

1 1/16"

27mm

203mm

Rough-In Requirement:
(2)

1" [25mm] Mounting Holes

Model Number

5F-8CWX12

Product Compliance:

12 1/8"

308mm

2 7/16"

62mm

4 1/16"

104mm

Mounting

6 1/2"

165mm

Surface

1/4"

8"

1/2" NPT
Male Inlets

Product Specifications:

6mm

Maximum

Thickness

29mm

1 1/8"

8" Deck Mount Workboard Mix i ng Faucet w/ Quarter- Turn Ceramic
Cartridges, equip 4" Wrist Action Handles, 12" Swing Nozzle & 1/2"

NPT Male Inlets

ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)

ANSI A117.1 (ADA)

Drawn:

equip

Foodservice

Accessories

Approved:JBC

JHB

by

10/24/16

2 Saddleback Cove, P.O. Box 1088

Travelers Rest, South Carolina 29690

Phone: [phone] Fax: [phone]

Scale:JRM Date:Checked:

equip.tsbrass.com

1:6 2

Sheet: 1

of

ITEM

NO.

SALES NO. DESCRIPTION

1 5SP-12 equip 12" Swing Nozzle
2 014250-45 Laminar Flow Device

3 013839-25 equip Swivel Nut
4 013848-45 equip Swivel Piece O-Ring

5 5-HDL-W

equip 4" Wrist Action Handle w/
Color Coded Screws

6 013788-45 equip Ceramic Cartridge, LTC
7 000999-45 Brass Lock Washer

8 002954-45 Shank Lock Nut
9 017587-45 Swivel Nut Seal

10 013787-45 equip Ceramic Cartridge, RTC

2

3

1

4

9

5

5

10

6

7
8

Model Number

5F-8CWX12

Product Compliance:
ASM E A112.18.1 / CSA B125.1

NSF 61 - Section 9
NSF 372 (Low Lead Content)

ANSI A117.1 (ADA)

Drawn:

JBC

Checked: Date:

Product Specifications:

8" Deck Mount Workboard Mix i ng Faucet w/ Quarter- Turn Ceramic
Cartridges, equip 4" Wrist Action Handles, 12" Swing Nozzle & 1/2"

NPT Male Inlets

equip

Foodservice

Accessories

JRM Scale:

Approved:

JHB

by

10/24/16

2 Saddleback Cove, P.O. Box 1088

Travelers Rest, South Carolina 29690

Phone: [phone] Fax: [phone]

equip.tsbrass.com

NTS 2

of

2Sheet:
