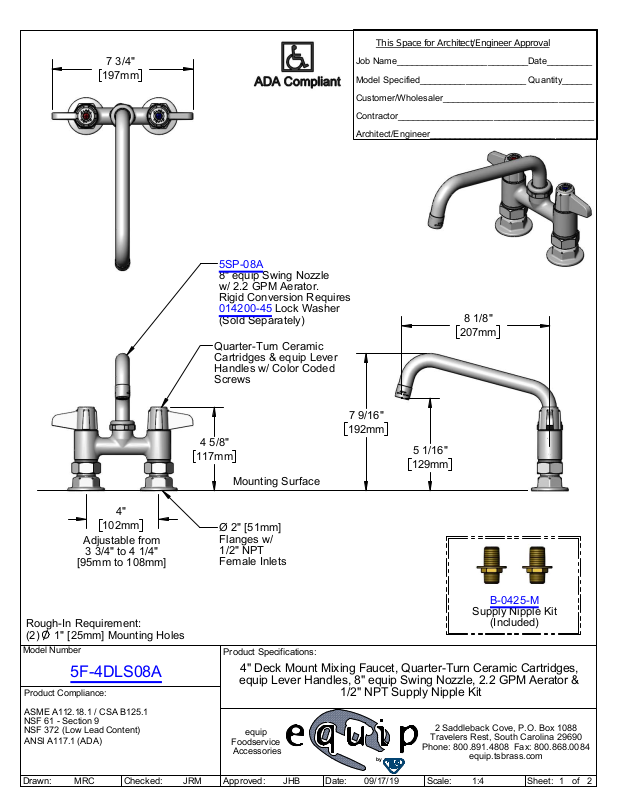

This Space for Architect/Engineer Approval
7 3/4"
197mm
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
5SP-08A
8" equip Swing Nozzle
w/ 2.2 GPM Aerator.
Rigid Conversion Requires
014200-45 Lock Washer
(Sold Separately)
8 1/8"
207mm
Quarter-Turn Ceramic
Cartridges & equip Lever
Handles w/ Color Coded
Screws
4"
102mm
Adjustable from
3 3/4" to 4 1/4"
[95mm to 108mm]
Rough-In Requirement:
1" [25mm] Mounting Holes
(2)
Model Number
5F-4DLS08A
Product Compliance:
7 9/16"
192mm
4 5/8"
117mm
5 1/16"
129mm
Mounting Surface
Ø 2" [51mm]
Flanges w/
1/2" NPT
Female Inlets
B-0425-M
Supply Nipple Kit
(Included)
Product Specifications:
4" Deck Mount Mixing Faucet, Quarter-Turn Ceramic Cartridges,
equip Lever Handles, 8" equip Swing Nozzle, 2.2 GPM Aerator &
1/2" NPT Supply Nipple Kit
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Drawn:
equip
Foodservice
Accessories
Approved:MRC
JHB
by
09/17/19
2 Saddleback Cove, P.O. Box 1088
Travelers Rest, South Carolina 29690
Phone: 800.891.4808 Fax: 800.868.0084
Scale:JRM Date:Checked:
equip.tsbrass.com
1:4 2
Sheet: 1
of
ITEM NO. SALES NO. DESCRIPTION
1 5SP-08A 8" equip Swing Nozzle
2 013838-45 2.2 GPM Aerator, 3/4-27 UN Female
3 013839-25 equip Swivel Nut
4 013848-45 equip Swivel Piece O-Ring
5 5-HDL-L
6 013788-45
equip Lever Handle w/ Color Coded
Screws
equip Quarter-Turn Ceramic
Cartridge, LTC
7 001019-45 Coupling Nut Washer
8 00AA 1/2" NPT Female Eccentric Flange
9 B-0425-M 1/2" NPT Supply Nipple Kit (2)
10 013787-45
equip Quarter-Turn Ceramic
Cartridge, RTC
2
3
4
1
5
5
10
6
7
8
9
Model Number
5F-4DLS08A
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Drawn:
MRC
Checked: Date:
JRM
Product Specifications:
4" Deck Mount Mixing Faucet, Quarter-Turn Ceramic Cartridges,
equip Lever Handles, 8" equip Swing Nozzle, 2.2 GPM Aerator &
1/2" NPT Supply Nipple Kit
equip
Foodservice
Accessories
Approved:
JHB
by
09/17/19
2 Saddleback Cove, P.O. Box 1088
Travelers Rest, South Carolina 29690
Phone: 800.891.4808 Fax: 800.868.0084
Scale:
equip.tsbrass.com
NTS 2
of
2Sheet:
