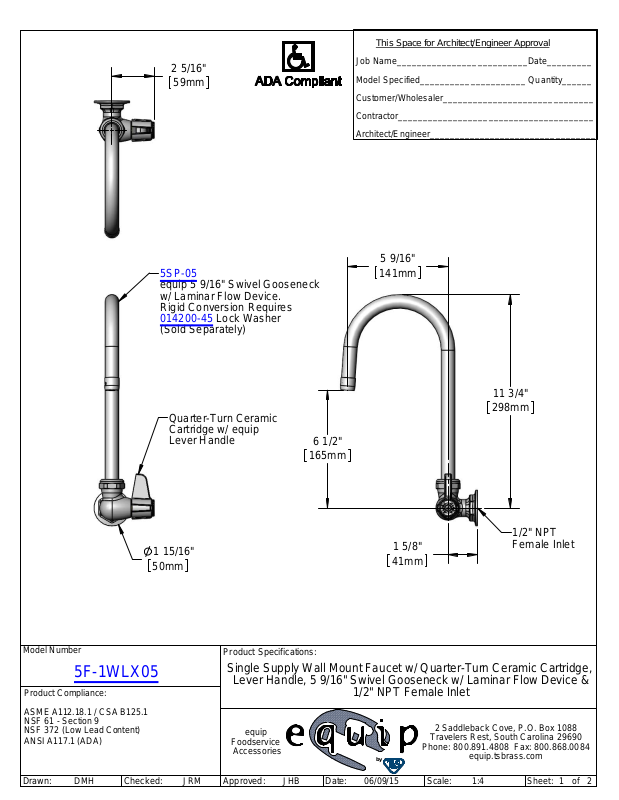

T&S Brass 5F-1WLX05 PARTS LIST
This Space for Architect/Engineer Approval
2 5/16"
59mm
5SP-05
equip 5 9/16" Swivel Gooseneck
w/ Laminar Flow Device.
Rigid Conversion Requires
014200-45 Lock Washer
(Sold Separately)
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
5 9/16"
141mm
Model Number
5F-1WLX05
Product Compliance:
Quarter-Turn Ceramic
Cartridge w/ equip
Lever Handle
1 15/16"
50mm
Product Specifications:
Single Supply Wall Mount Faucet w/ Quarter-Turn Ceramic Cartridge,
Lever Handle, 5 9/16" Swivel Gooseneck w/ Laminar Flow Device &
6 1/2"
165mm
1 5/8"
41mm
1/2" NPT Female Inlet
11 3/4"
298mm
1/2" NPT
Female Inlet
ASM E A112. 18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Drawn:
equip
Foodservice
Accessories
Approved:DMH
JHB
by
06/09/15
2 Saddleback Cove, P.O. Box 1088
Travelers Rest, South Carolina 29690
Phone: 800.891.4808 Fax: 800.868.0084
Scale:JRM Date:Checked:
equip.tsbrass.com
1:4
Sheet:
of
1
2
ITEM
NO.
SALES NO. DESCRIPTION
1 5SP-05 5 1/2" equip Swivel Gooseneck
2 014250-45 Laminar Full Flow Outlet Device
3 013839-25 equip Swivel Nut
4 013848-45 Swivel O-Ring (10)
5 013787-45 equip Ceramic Cartridge, RTC
6 5-HDL-L equip Lever Handle w/ Color Coded Screws
7 013849-45 Screw, 4mm Metric (10)
1
2
3
4
5
6
7
Model Number
5F-1WLX05
Product Compliance:
ASM E A112. 18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Drawn:
DMH
Checked: Date:
JRM
Product Specifications:
Single Supply Wall Mount Faucet w/ Quarter-Turn Ceramic Cartridge,
Lever Handle, 5 9/16" Swivel Gooseneck w/ Laminar Flow Device &
1/2" NPT Female Inlet
equip
Foodservice
Accessories
Approved:
JHB
by
06/09/15
2 Saddleback Cove, P.O. Box 1088
Travelers Rest, South Carolina 29690
Phone: 800.891.4808 Fax: 800.868.0084
Scale:
equip.tsbrass.com
NTS 2
of
2Sheet:
