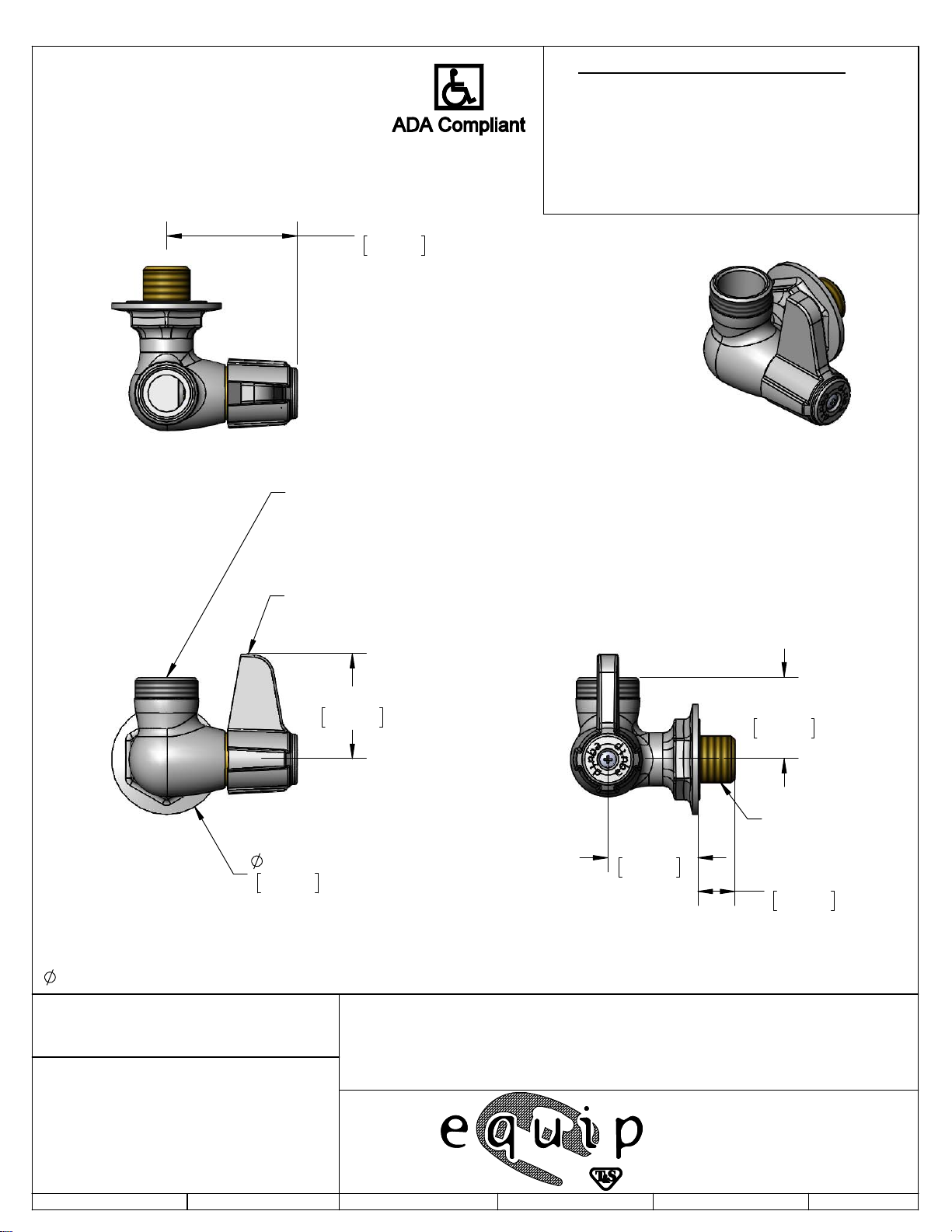

T&S Brass 5F-1WLB00 Parts List

2 5/16"

59mm

Swivel Outlet Accepts
equip Swing Nozzles.
Rigid Conversion Requires
014200-45 Lock Washer
(Sold Separately)

This Space for Architect/Engineer Approval

Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________

Rough-In Requirement:

1" [25mm] Mounting Hole

Model Number

5F-1WLB00

Product Compliance:

Ceramic Cartridge w/
equip Lever Handle

1 7/8"

48mm

1 15/16"

50mm

Product Specifications:

1 7/16"

37mm

1/2" BSPP

1 5/8"

41mm

Male Inlet

1/2"

16mm

Single Supply Wall Mount Faucet, Ceramic Cartridge,

Lever Handle & 1/2" BSPP Male Inlet

ASM E A112. 18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)

ANSI A117.1 (ADA)

Drawn:

equip

Foodservice

Accessories

Approved:KJG

JHB

by

08/05/14

2 Saddleback Cove, P.O. Box 1088

Travelers Rest, South Carolina 29690

Phone: [phone] Fax: [phone]

Scale:DHL Date:Checked:

equip.tsbrass.com

1:2

Sheet:

of

1

2

ITEM

NO.

SALES NO. DESCRIPTION

1 019047-45 Supply Nipple, 1/2" NPT x 1/2" BSPP
2 013849-45 Handle Screw

3 5-HDL-L equip Lever Handle
4 013787-45 equip Ceramic Cartridge, RTC

1

Model Number

5F-1WLB00

Product Compliance:
ASM E A112. 18.1 / CSA B125.1

NSF 61 - Section 9
NSF 372 (Low Lead Content)

ANSI A117.1 (ADA)

Drawn:

KJG

Checked: Date:

Product Specifications:

Single Supply Wall Mount Faucet, Ceramic Cartridge,

Lever Handle & 1/2" BSPP Male Inlet

equip

Foodservice

Accessories

DHL Scale:

Approved:

JHB

by

08/05/14

2 Saddleback Cove, P.O. Box 1088

Travelers Rest, South Carolina 29690

Phone: [phone] Fax: [phone]

24 3

equip.tsbrass.com

NTS 2

of

2Sheet:
