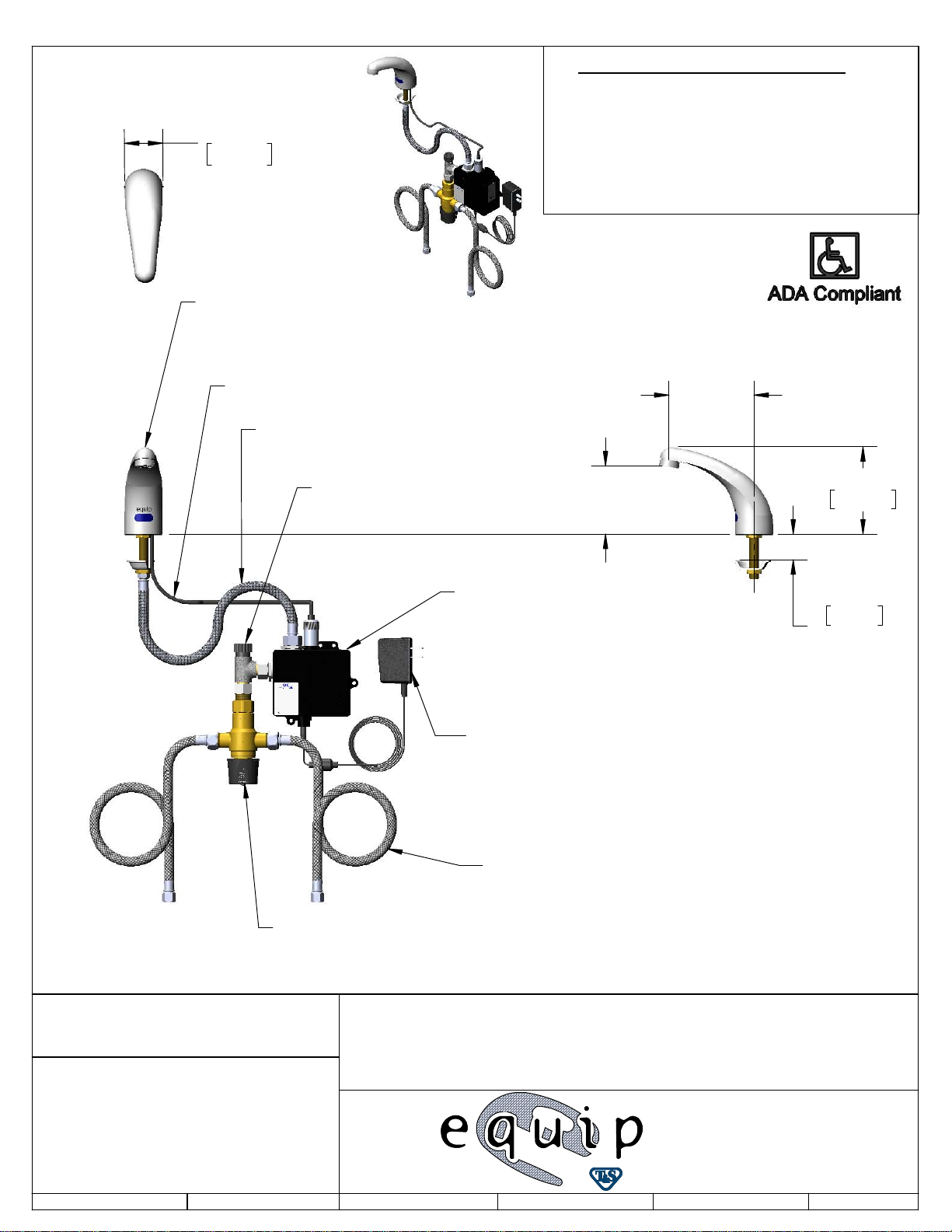

This Space for Architect/Engineer Approval
Job Name__________________________Date_________
2 1/16"
52mm
Polish Chrome Plated Solid
Cast Brass Spout w/ 2.2
GPM [8.3 LPM]Vandal
Resistant Aerator & Key
24" [610mm]
Sensor Cable
1/2" NPSM x 1/4" NPSM
18" [457mm] Flexible
Stainless Steel Hose
Removable
Strainer
Mounting Surface
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
4 1/2"
[115mm]
3 5/8"
[93mm]
4 11/16"
119mm
Rough-In Requirement:
Ø 1" [25mm] Mounting Hole
Model Number
5EF-1D-DS-TMV
Product Compliance:
3 5/8" x 4 3/16" x 2" Deep
[92mm x 106mm x 51mm]
Water Resistant Control Module
Box (Black) AC or DC Operated
w/ (4) AA Batteries
100-240 VAC Adapter
w/ 71" [1800mm] Power
Cord.(Remove Rubber
Plugs on Module and
Cable to Connect)
(2) 3/8" Compression x 1/2" NPSM
18" [457mm] Flexible Stainless Steel
Supply Hose
5EF-TMV
ASSE 1070 Thermostatic Mixing Valve
w/ Check Valves
Product Specifications:
Electronic Faucet: Deck Mount, Cast Spout w/ VR 2.2 GPM Aerator,
Thermostatic Temperature Control Mixing Valve w/ Check
Valves, (2) 18" Flexible Supply Hoses & AC-DC Control Module
1 3/8"
35mm
Maximum
Thickness
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
UL 1951
ASSE 1070 (TMV)
Drawn:
equip
Foodservice
Accessories
Approved:KJG
12/20/19
by
JHB
2 Saddleback Cove, P.O. Box 1088
Travelers Rest, South Carolina 29690
Phone: 800.891.4808 Fax: 800.868.0084
Scale:GEF Date:Checked:
equip.tsbrass.com
1:6 2
Sheet: 1
of
ITEM
NO.
SALES NO. DESCRIPTION
1 015425-45 Vandal Resistant Key
2 B-0199-09 VR 2.2 GPM Aerator, 15/16-27 UN Male w/ Key
3 5EF-0004 24" Sensor Cable
4 016297-45 Inlet Hose, Faucet, 1/2" NPSM-F x 1/4" NPSM-F
5 5EF-0001 equip Sensor Faucet - Control Module
6 5EF-0002 equip AC Transformer, 100-240 VAC
7 5EF-0005 Supply Hose, 9/16-24 Female x 1/2" NPSM
8 5EF-TMV ASSE 1070 Thermostatic Mixing Valve
9 5EF-FILTER Replacement Filter
2
1
3
Model Number
4
9
8
5
6
7
Product Specifications:
5EF-1D-DS-TMV
Product Compliance:
ASME A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
UL 1951
ASSE 1070 (TMV)
Drawn:
KJG
Checked: Date:
Electronic Faucet: Deck Mount, Cast Spout w/ VR 2.2 GPM Aerator,
Thermostatic Temperature Control Mixing Valve w/ Check
Valves, (2) 18" Flexible Supply Hoses & AC-DC Control Module
equip
Foodservice
Accessories
GEF Scale:
Approved:
12/20/19
by
JHB
2 Saddleback Cove, P.O. Box 1088
Travelers Rest, South Carolina 29690
Phone: 800.891.4808 Fax: 800.868.0084
equip.tsbrass.com
NTS 2
of
2Sheet:
