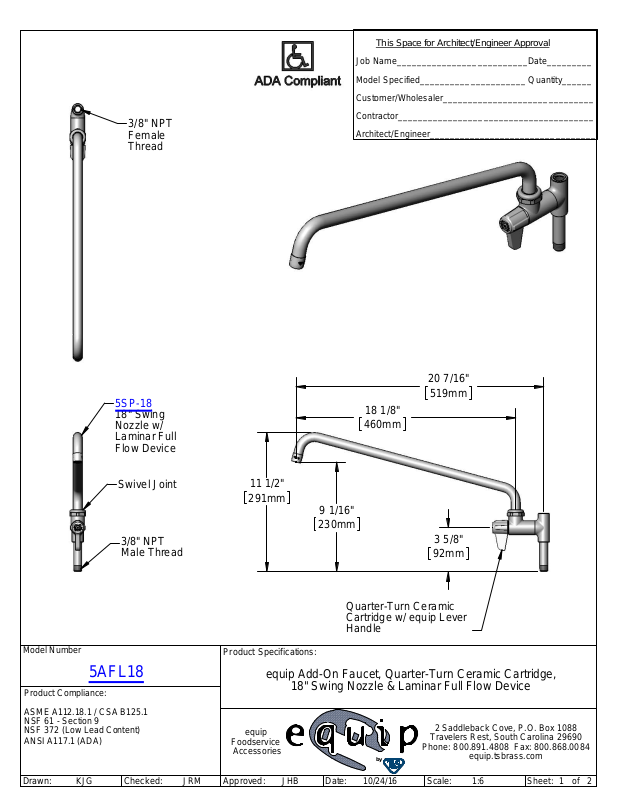

This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
3/8" NPT
Female
Thread
5SP-18
18" Swing
Nozzle w/
Laminar Full
Flow Device
Contractor_______________________________________
Architect/Engineer_________________________________
20 7/16"
519mm
18 1/8"
460mm
Swivel Joint
3/8" NPT
Male Thread
Model Number
5AFL18
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
11 1/2"
291mm
Product Specifications:
equip Add-On Faucet, Quarter-Turn Ceramic Cartridge,
18" Swing Nozzle & Laminar Full Flow Device
equip
Foodservice
Accessories
9 1/16"
230mm
3 5/8"
92mm
Quarter-Turn Ceramic
Cartridge w/ equip Lever
Handle
2 Saddleback Cove, P.O. Box 1088
Travelers Rest, South Carolina 29690
Phone: 800.891.4808 Fax: 800.868.0084
by
equip.tsbrass.com
Drawn:
Approved:KJG
JHB
10/24/16
Scale:JRM Date:Checked:
1:6
Sheet: 1
of
2
ITEM NO. SALES NO. DESCRIPTION
1 014250-45 Laminar Full Flow Device, 3/4-27 UN Female
2 5SP-18 18" Swing Nozzle
3 013839-25 equip Swivel Nut
4 013848-45 equip Swivel Piece O-Ring
5 000358-40 3/8" NPT x 3" Nipple
6 013787-45 equip Quarter-Turn Ceramic Cartridge, RTC
7 5-HDL-L equip Lever Handle
8 013849-45 Lever Handle Screw
2
3
1
8 7
4
6
5
Model Number
5AFL18
Product Compliance:
ASM E A112.18.1 / CSA B125.1
NSF 61 - Section 9
NSF 372 (Low Lead Content)
ANSI A117.1 (ADA)
Drawn:
KJG
Checked: Date:
Product Specifications:
equip Add-On Faucet, Quarter-Turn Ceramic Cartridge,
18" Swing Nozzle & Laminar Full Flow Device
equip
Foodservice
Accessories
JRM Scale:
Approved:
JHB
by
10/24/16
2 Saddleback Cove, P.O. Box 1088
Travelers Rest, South Carolina 29690
Phone: 800.891.4808 Fax: 800.868.0084
equip.tsbrass.com
NTS 2
of
2Sheet:
