T&S Brass 5AFL12A Parts List

This Space for Architect/Engineer Approval

Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________

5SP-12A

12" Swing Nozzle
w/ 2.2 GPM Aerator

Swivel Joint

9 7/8"

3/8" NPT
Male Thread

251mm

7 3/8"

187mm

3 5/8"

92mm

14 7/16"

367mm

12 1/8"

308mm

Quarter-Turn Ceramic
Cartridge w/ equip
Lever Handle

3/8" NPT
Female
Thread

Model Number

5AFL12A

Product Compliance:
ASM E A112.18.1 / CSA B125.1

NSF 61 - Section 9
NSF 372 (Low Lead Content)

ANSI A117.1 (ADA)

Drawn:

Product Specifications:

Equip Add-On Faucet, Quarter-Turn Ceramic Cartridge,

equip

Foodservice

Accessories

Approved:KJG

JHB

12" Swing Nozzle & 2.2 GPM Aerator

2 Saddleback Cove, P.O. Box 1088

Travelers Rest, South Carolina 29690

by

08/15/15

Phone: [phone] Fax: [phone]

Scale:JRM Date:Checked:

equip.tsbrass.com

Sheet: 1

of

21:4

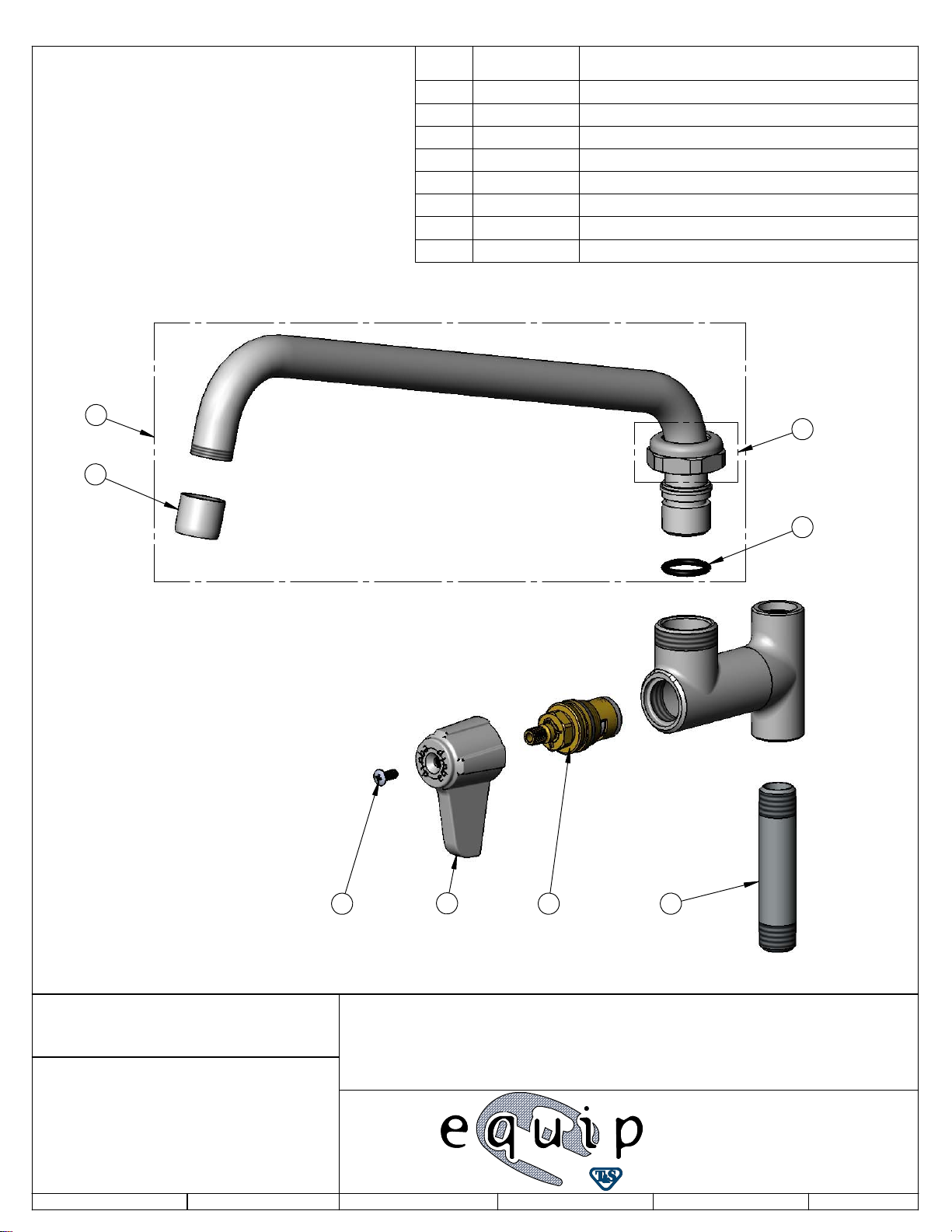

ITEM

NO.

SALES NO. DESCRIPTION

1 013838-45 2.2 GPM Aerator, 3/4-27 UN Female
2 5SP-12A 12" equip Swing Nozzle

3 013839-25 equip Swivel Nut
4 013848-45 equip Swivel Piece O-Ring
5 000358-40 Nipple, 3/8" NPT x 3"
6 013787-45 equip Quarter-Turn Ceramic Cartridge, RTC
7 5-HDL-L equip Lever Handle w/ Color Coded Screws

8 013849-45 Handle Screw

2

3

1

4

Model Number

5AFL12A

Product Compliance:
ASM E A112.18.1 / CSA B125.1

NSF 61 - Section 9
NSF 372 (Low Lead Content)

ANSI A117.1 (ADA)

Drawn:

KJG

Checked: Date:

8

Product Specifications:

7

6

5

Equip Add-On Faucet, Quarter-Turn Ceramic Cartridge,

12" Swing Nozzle & 2.2 GPM Aerator

equip

Foodservice

Accessories

JRM Scale:

Approved:

JHB

by

08/15/15

2 Saddleback Cove, P.O. Box 1088

Travelers Rest, South Carolina 29690

Phone: [phone] Fax: [phone]

equip.tsbrass.com

NTS 2

of

2Sheet:
