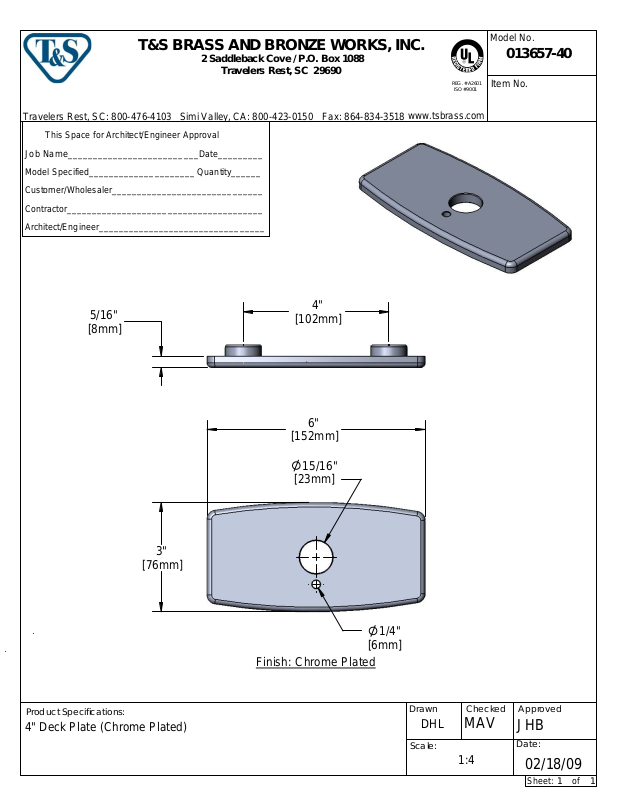

T&S Brass 013657-40 User Manual

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Travelers Rest, SC: 800-476-4103

This Space for Architect/Engineer Approval

Job Name__________________________Date_________

Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________

Simi Valley, CA: 800-423-0150

Fax: [phone]

REG. #A2601

ISO #9001

www.tsbrass.com

Model No.

013657-40

Item No.

5/16"

[8mm]

4"

[102mm]

6"

[152mm]

15/16"

[23mm]

3"

[76mm]

Product Specifications:

4" Deck Plate (Chrome Plated)

[6mm]

Finish: Chrome Plated

1/4"

Drawn Checked

DHL

Scale:

MAV

1:4

Approved

JHB

Date:

02/18/09

Sheet:

of

1

1
