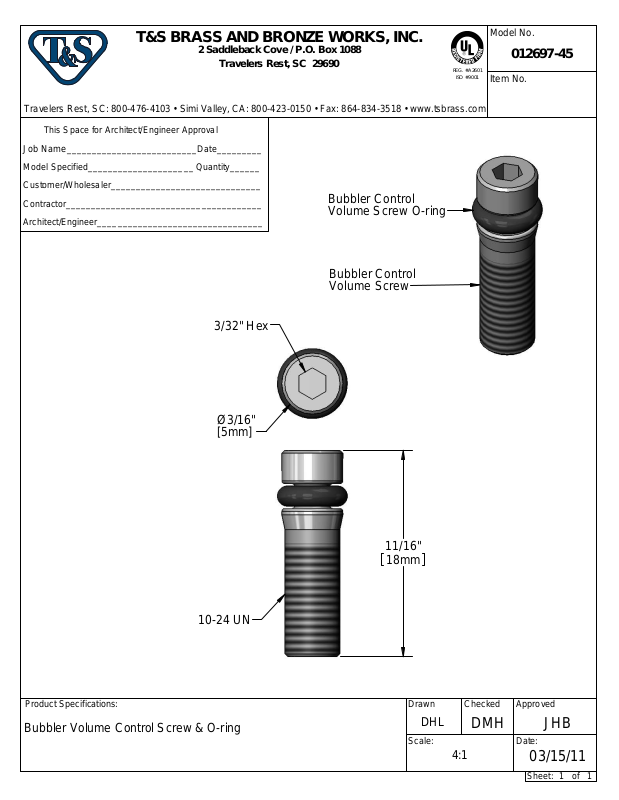

T&S Brass 012697-45 User Manual
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Model No.
012697-45
Item No.
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________
3/32" Hex
Ø3/16"
[5mm]
Bubbler Control
Volume Screw O-ring
Bubbler Control
Volume Screw
10-24 UN
Product Specifications:
Bubbler Volume Control Screw & O-ring
11/16"
18mm
Drawn
Scale:
DHL
Checked
4:1
DMH
Approved
JHB
Date:
03/15/11
Sheet:
of
1
1
