T&S Brass 011927-25 User Manual
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Model No.
011927-25
Item No.
Job Name
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
__________________________Date_________

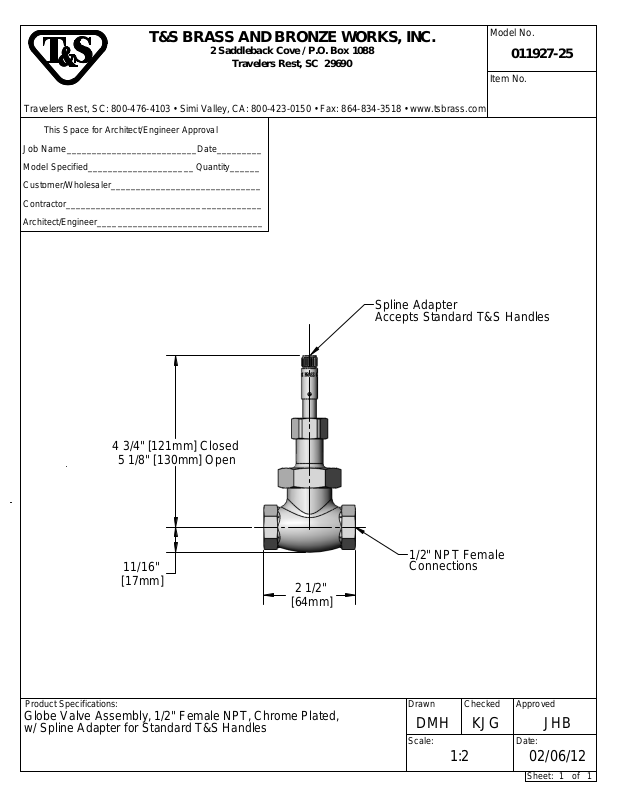

Spline Adapter
Accepts Standard T&S Handles
4 3/4"
[121mm] Closed
5 1/8" [130mm] Open
11/16"
[17mm]
2 1/2"
[64mm]
Product Specifications:
Globe Valve Assembly, 1/2" Female NPT, Chrome Plated,
w/ Spline Adapter for Standard T&S Handles
1/2" NPT Female
Connections
Drawn
DMH
Scale:
Checked
KJG
1:2
Approved
JHB
Date:
02/06/12
Sheet:
of
1
1
