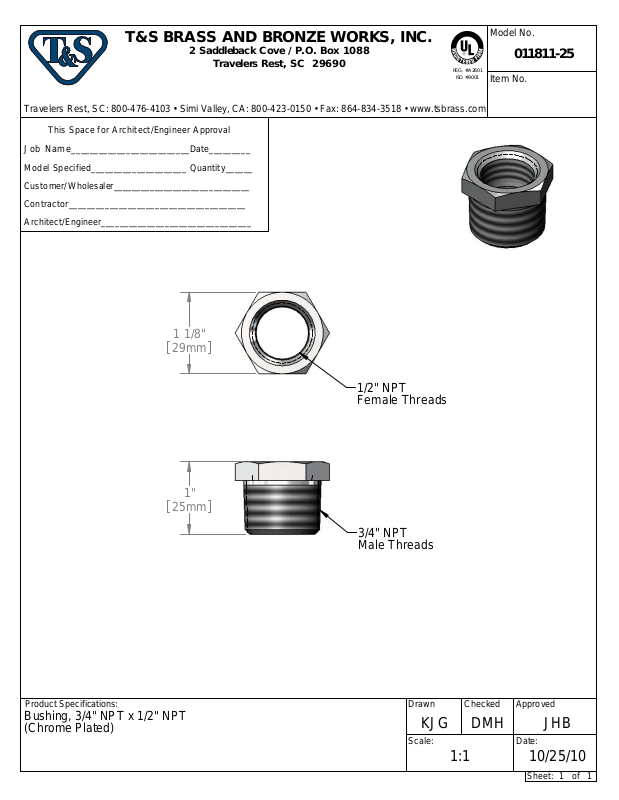

T&S Brass 011811-25 User Manual
T& S BRASS A ND BRONZE W ORKS, INC.
2 Saddleback Cove / P. O. Box 1088
Travelers Rest, SC 29690
REG. #A2601
ISO #9001
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space f or Architect/Engineer Approval
Model No.
011811-25
Item No.
Job Name
Mod e l S p e cifi e d _____________________ Q uan ti ty______
Cu s to mer /W holes aler ______________________________
Co n t rac to r_______________________________________
A rc h i t e ct /Engineer_________________________________
__________________________Date_________
1 1/8"
29mm
1/2" NPT
Female Threads
25mm
Product Specifications:
Bushing, 3/4" NPT x 1/2" NPT
(Chrome Plated)
1"
3/4" NPT
Male Threads
Drawn
KJG
Scale:
1:1
Checked
DMH
Approved
JHB
Date:
10/25/10
Sheet: 1
of
1
