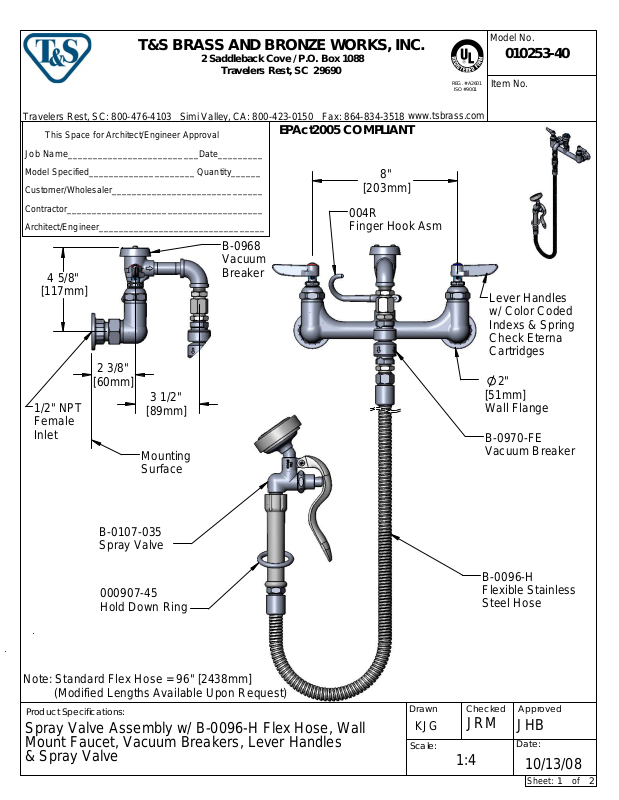

T&S Brass 010253-40 User Manual
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Simi Valley, CA: 800-423-0150
Fax: 864-834-3518
EPAct2005 COMPLIANT
REG. #A2601
ISO #9001
www.tsbrass.com
Model No.
010253-40
Item No.
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
B-0968
Vacuum
4 5/8"
Breaker
[117mm]
2 3/8"
[60mm]
3 1/2"
1/2" NPT
[89mm]
Female
Inlet
Mounting
Surface
8"
[203mm]
004R
Finger Hook Asm
Lever Handles
w/ Color Coded
Indexs & Spring
Check Eterna
Cartridges
2"
[51mm]
Wall Flange
B-0970-FE
Vacuum Breaker
B-0107-035
Spray Valve
000907-45
Hold Down Ring
Note: Standard Flex Hose = 96" [2438mm]
(Modified Lengths Available Upon Request)
Product Specifications:
Spray Valve Assembly w/ B-0096-H Flex Hose, Wall
Mount Faucet, Vacuum Breakers, Lever Handles
& Spray Valve
B-0096-H
Flexible Stainless
Steel Hose
Drawn Checked
KJG
Scale:
JRM
1:4
Approved
JHB
Date:
10/1 3/08
Sheet:
of
1
2
T&S BRASS AND BRONZE WORKS, INC.
Travelers Rest, SC: 800-476-4103
11
5
12
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Simi Valley, CA: 800-423-0150
17
Fax: 864-834-3518
ITEM
NO.
SALES
NO.
1 B-0107-035 Spray Valve Assembly
2 000907-45
3 010476-45 #27 Washer
REG. #A2601
ISO #9001
www.tsbrass.com
DESCRIPTION
Spray Valve Hold Down
Ring
Model No.
010253-40
Item No.
6
7
8
9
10
3
12
13
14
18
19
4 B-0096-H Flex. Stainless Steel Hose
5 000545-25 Adapter
6 000922-45 Lever Handle Screw
7 001661-45 Red Index-HW
8 001638-45 Lever Handle
Hot Eterna Spindle Asm
9 002712-40
w/ Spring Check, Handle,
Index & Screw
10 012443-40
Hot Eterna Spindle
Assembly w/ Spring Check
11 001355-40 Elbow, 3/8 NPT
1
12 000357-40 Nipple, 3/8" x 2"
13 001660-45 Blue Index-CW
14 012442-40
Cold Eterna Spindle
Assembly w/ Spring Check
15 146X 3/4-14 Coupling
20
3
2
15
21
16 B-0970-FE
B-0970 FE Vacuum
Breaker
17 B-0968 Vacuum Breaker Asm, 3/8"
3
4
5
16
5
22
18 004R Finger Hook Assembly
Cold Eterna Spindle Asm
19 002711-40
w/ Spring Check, Handle,
Index & Screw
20 001019-45 Coupling Nut Washer
21 00AA Flange Assembly, 00AA
22 B-0970-01
Vacuum Breaker w/ Hose
Coupling and Adapters
Product Specifications:
Spray Valve Assembly w/ B-0096-H Flex Hose, Wall
Mount Faucet, Vacuum Breakers, Lever Handles
& Spray Valve
Drawn
KJG
Scale:
Checked
JRM
NTS
Approved
JHB
Date:
10/1 3/08
Sheet:
of
2
2
